Forma
Forma
EAN:
4031582476309
Product number:
6944UFP125R36-32 S30 4xM6 grey
- Non-hazardous materials
- Tested quality
- User-friendly central lock

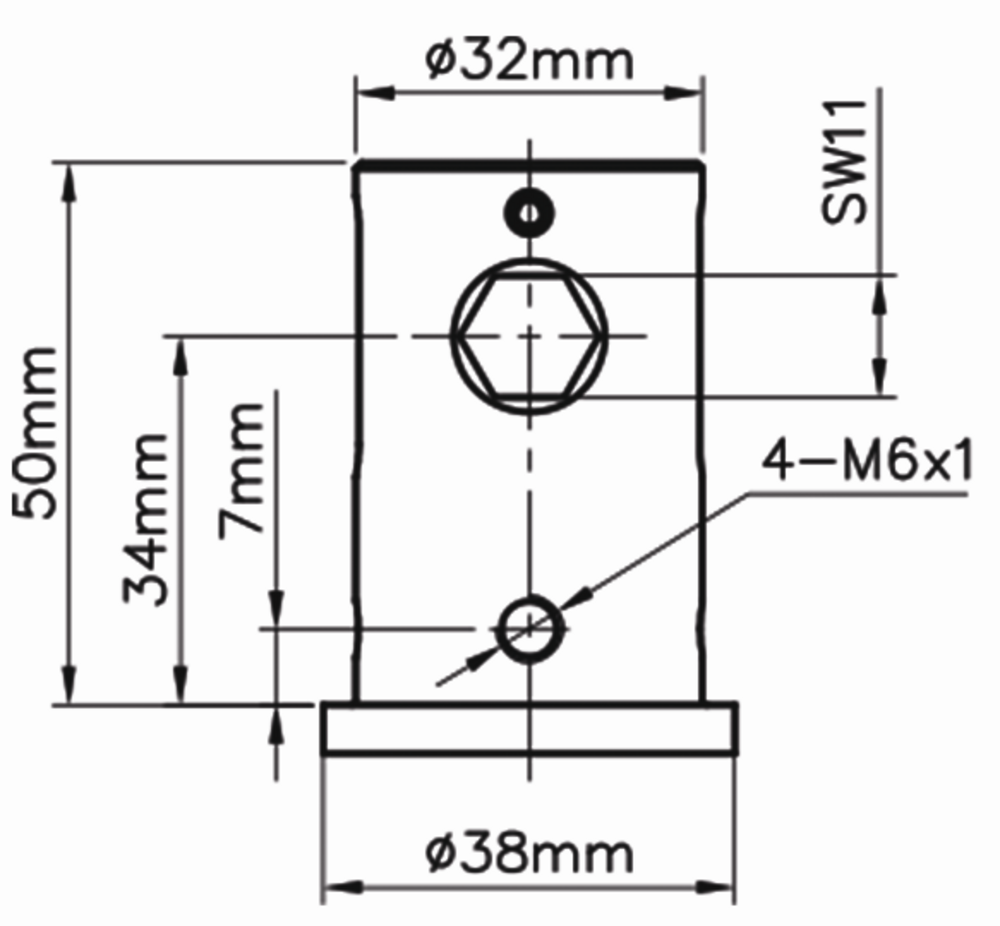

The Forma is a swivel castor with central, total or directional lock, featuring a stem with cam hole for profile bars, short ver...
Details
Custom or high volume? Request a quote now.
Documents
The Forma is a swivel castor with central, total or directional lock, featuring a stem with cam hole for profile bars, short version fitting for secure attachment to equipment. The housing is constructed from zinc-die-casting and aluminium materials with a precision ball bearing swivel mechanism ensuring smooth directional changes and long-lasting performance. The wheel incorporates a polyamide body fitted with an elastic tyre, non-marking, vulcanised tread material and precision ball bearing for reliable operation, with a diameter of 125 mm providing excellent manoeuvrability. The castor has an overall height of 154 mm, making it suitable for various medical equipment applications. The dynamic load capacity is rated at 135 kg at speeds up to 3 km/h, making it ideal for anesthesia carts, C-arms, CT scanners, MRI, X-ray equipment, medication carts, nursing carts, and ultrasound devices.
Roll performance
Movement noise
Attrition
Corrosion resistance
Article numbers
Core attributes
Fitting
Housing
Wheel
Special Features
Non-hazardous materials
Complies with RoHS and REACH regulations. Does not contain polycyclic aromatic carbons or chromium (VI).
Tested quality
Tested in our own laboratory for compliance with European standards.
Solid housing
Made of pressed steel, zinc plated.
Prevents unintended movement
Wheel lock for manual operation
Secured stand
Total lock for simultaneously locking the wheel and swivel housing.
User-friendly central lock
Simultaneous locking of more than one castor using a central actuation lever.
Low-maintenance wheels
Thread guards for unobstructed operation with minimal cleaning effort.
Non-marking movement
Wheels with reduced abrasion and little cleaning requirement.
Quiet rolling
Soft wheel versions for a quiet working environment.
Low-vibration transport
Extra soft wheels with good shock absorbing properties.
Low maintenance materials
All metal components made of Aluminum or rust-free stainless steel.
