Forma
Forma
EAN:
4031582476408
Product number:
6944UFP125P33 L1-L30 grey
- Non-hazardous materials
- Tested quality
- User-friendly central lock
The Forma swivel castor with central, total or directional lock features a rectangular plate fitting for secure mounting applica...
Details
Custom or high volume? Request a quote now.
Data sheets
Documents

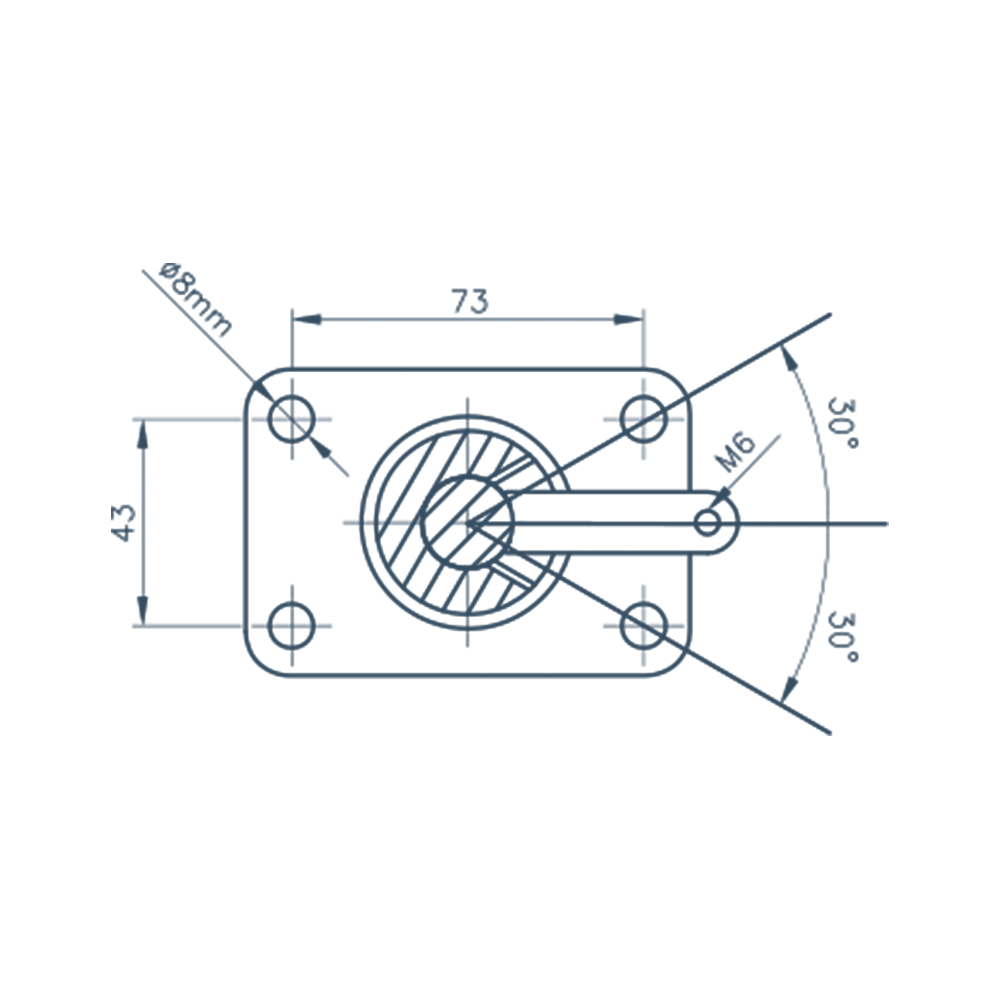

The Forma swivel castor with central, total or directional lock features a rectangular plate fitting for secure mounting applications. The housing is constructed from zinc-die-casting and aluminium materials, incorporating a precision ball bearing swivel bearing system for smooth directional movement. The wheel comprises a polyamide body fitted with an elastic tyre that is non-marking and vulcanised, supported by precision ball bearings for optimal rolling performance. The wheel diameter measures 125 mm, whilst the overall height of the complete assembly is 180 mm. The castor provides a dynamic load capacity of 125 kg at speeds up to 3 km/h, making it suitable for demanding applications including anaesthesia carts, C-arms, CT scanners, MRI, X-ray equipment, medication carts, nursing carts, and ultrasound devices.
Roll performance
Movement noise
Attrition
Corrosion resistance
Article numbers
Core attributes
Fitting
Housing
Wheel
Special Features
Non-hazardous materials
Complies with RoHS and REACH regulations. Does not contain polycyclic aromatic carbons or chromium (VI).
Tested quality
Tested in our own laboratory for compliance with European standards.
Solid housing
Made of pressed steel, zinc plated.
Prevents unintended movement
Wheel lock for manual operation
Secured stand
Total lock for simultaneously locking the wheel and swivel housing.
User-friendly central lock
Simultaneous locking of more than one castor using a central actuation lever.
Low-maintenance wheels
Thread guards for unobstructed operation with minimal cleaning effort.
Non-marking movement
Wheels with reduced abrasion and little cleaning requirement.
Quiet rolling
Soft wheel versions for a quiet working environment.
Low-vibration transport
Extra soft wheels with good shock absorbing properties.
Low maintenance materials
All metal components made of Aluminum or rust-free stainless steel.
