Fixed castor 200 mm

Alpha stainless

Order number: 990065024

EAN: 4031582333121

Product number: 8478UOD200P63

Non-hazardous materials
Tested quality
Uninterrupted use

The Alpha stainless is a fixed castor designed for demanding industrial applications, featuring a medium rectangular plate fitti... Details

Features

200 mm
240 mm
500 kg

Wheel

Diameter

Housing Color

Type

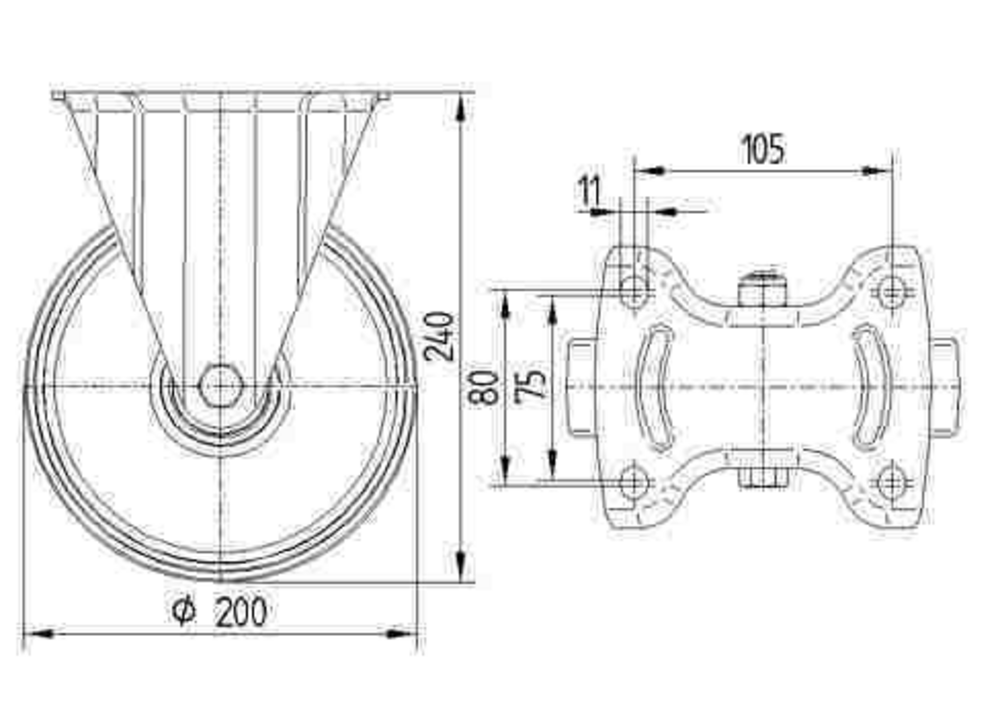

Fitting dimensions

Custom or high volume? Request a quote now.

CAD files

Data sheets

Documents

Alpha.pdf

The Alpha stainless is a fixed castor designed for demanding industrial applications, featuring a medium rectangular plate fitting that ensures secure and stable mounting on various equipment and transport systems. The housing is constructed from heavy stainless steel with two ball races in the swivel bearing, providing exceptional durability and corrosion resistance suitable for hygiene-critical environments. The wheel comprises a 200 mm diameter polyamide body with an identical tread material, fitted with a stainless steel roller bearing that guarantees smooth operation and extended service life. With an overall height of 240 mm, this castor is engineered to integrate seamlessly into existing systems whilst maintaining optimal manoeuvrability and stability. The load capacity specifications indicate a static load rating of 1000 kg and a dynamic load capacity of 500 kg at speeds up to 4 km/h, making it suitable for heavy-duty applications. The Alpha stainless castor is particularly well-suited for use in catering carts and meal delivery systems, container construction, electronic systems and clean-room technology, fire fighting technology and fire protection equipment, machine construction, and transport equipment, where reliability, hygiene, and robust performance are essential requirements.

Roll performance

Movement noise

Attrition

Corrosion resistance

Article numbers

Article Number

8478UOD200P63

EAN

4031582333121

S4 Material Number

990065024

Core attributes

Type

Fixed castor

Overall width

115 mm

Load capacity at 4 km/h

500 kg

Load capacity Static

1000 kg

Overall Height

240 mm

Temperature range (Maximum)

80 °C

Temperature range (Minimum)

-25 °C

Overall weight

1.99 kg

Product Name

Alpha stainless

Standard

EN12532 - Transport Equipment

Electric Conductive

Stainless

Fitting

Fitting type

Medium rectangular plate

Plate hole diameter

11 mm

Plate hole length (Maximum)

80 mm

Plate hole length (Minimum)

75 mm

Plate hole width (Maximum)

105 mm

Plate hole width (Minimum)

75 mm

Plate length

140 mm

Plate width

115 mm

Housing

Housing Color

Stainless steel

Fork shape

Broad

Housing Material

Stainless steel, heavy

Swivel Bearing

Two ball races

Wheel

Hardness of tread (D)

75 Shore D

Body material

Polyamide

Tread Material Mix

Identical with wheel body

Tread width

50 mm

Diameter

200 mm

Body width

50 mm

Axle

Screwed with nut

Bearing

Roller bearing, stainless

Wheel Color

Natural white

Special Features

Non-hazardous materials

Complies with RoHS and REACH regulations. Does not contain polycyclic aromatic carbons or chromium (VI).

Tested quality

Tested in our own laboratory for compliance with European standards.

Solid housing

Made of pressed steel, zinc plated.

Variable fitting options

Different fitting dimensions for a large range of applications.

Resource-conserving part replacement

Threaded axles allow effortless wheel change.

Uninterrupted use

Swivel bearing with dust ring for continuous, uninterrupted movement.

Low wear and tear wheels

Durable wheels with extremely low wear and tear properties.

Permanent washability

All metal components made of stainless steel.

Low maintenance materials

All metal components made of Aluminum or rust-free stainless steel.
