Fixed castor 160 mm

Alpha
Order number: 990000802
EAN: 4031582399332
Product number: 3478UFX160P63
  • Non-hazardous materials
  • Tested quality
  • Uninterrupted use
The Alpha fixed castor is engineered for demanding industrial applications and features a medium rectangular plate fitting that ... Details
Features
  • 160 mm
  • 200 mm
  • 300 kg
Custom or high volume? Request a quote now.
You have saved products in your offer list Request now
The Alpha fixed castor is engineered for demanding industrial applications and features a medium rectangular plate fitting that ensures secure mounting to equipment and trolleys. The housing is constructed from heavy steel sheet, providing robust structural integrity and durability in challenging operational environments. The wheel assembly comprises a 160 mm diameter design with an elastic tire of non-marking, vulcanised material that protects floors and surfaces whilst delivering reliable traction and manoeuvrability. The wheel is supported by a precision ball bearing, sealed to prevent contamination and ensure smooth rotation under continuous use. With an overall height of 200 mm, the castor integrates seamlessly into platform trolleys, roll cages, and transport equipment. The polyamide wheel body combines lightweight characteristics with exceptional strength, contributing to the castor's longevity and performance. Load capacity specifications indicate a static rating of 600 kg, whilst dynamic load ratings vary according to operational speed: 200 kg at 6 km/h and 300 kg at 4 km/h. This fixed castor is ideally suited for automotive original equipment manufacturing, catering carts and meal delivery systems, container construction, electronic systems and clean-room technology, fire fighting and fire protection equipment, machine construction, post logistic systems, production and platform trolleys, roll cages, tool cabinets, transport equipment, waste disposal equipment, and work benches.
Roll performance
Movement noise
Attrition
Corrosion resistance
Article numbers
Article Number
3478UFX160P63
EAN
4031582399332
S4 Material Number
990000802
Core attributes
Type
Fixed castor
Overall width
115 mm
Load capacity at 4 km/h
300 kg
Load capacity at 6 km/h
200 kg
Load capacity Static
600 kg
Overall Height
200 mm
Temperature range (Maximum)
80 °C
Temperature range (Minimum)
-20 °C
Overall weight
1.79 kg
Product Name
Alpha
Standard
EN12532 - Transport Equipment
Electric Conductive
Stainless
Fitting
Fitting type
Medium rectangular plate
Plate hole diameter
11 mm
Plate hole length (Maximum)
80 mm
Plate hole length (Minimum)
75 mm
Plate hole width (Maximum)
105 mm
Plate hole width (Minimum)
75 mm
Plate length
137 mm
Plate width
115 mm
Housing
Housing Color
Blue passivated
Fork shape
Broad
Housing Material
Steel sheet, heavy
Swivel Bearing
Two ball races
Wheel
Hardness of tread (A)
63 Shore A
Body material
Polyamide
Tread Material Mix
Elastic tire, non-marking, vulcanized
Tread width
46 mm
Diameter
160 mm
Body width
46 mm
Threadguards
With threadguard
Axle
Screwed with nut
Bearing
Precision ball bearing, sealed
Wheel Color
Silver grey (RAL7001)
special-features-image
Special Features
Non-hazardous materials
Complies with RoHS and REACH regulations. Does not contain polycyclic aromatic carbons or chromium (VI).
Tested quality
Tested in our own laboratory for compliance with European standards.
Solid housing
Made of pressed steel, zinc plated.
Variable fitting options
Different fitting dimensions for a large range of applications.
Resource-conserving part replacement
Threaded axles allow effortless wheel change.
Uninterrupted use
Swivel bearing with dust ring for continuous, uninterrupted movement.
Low-maintenance wheels
Thread guards for unobstructed operation with minimal cleaning effort.
Non-marking movement
Wheels with reduced abrasion and little cleaning requirement.
Quiet rolling
Soft wheel versions for a quiet working environment.
Low-vibration transport
Extra soft wheels with good shock absorbing properties.
Protective seal
Wheels with sealed bearings to protect against spray water and dirt.
Skip product gallery

Matching Products

Variants

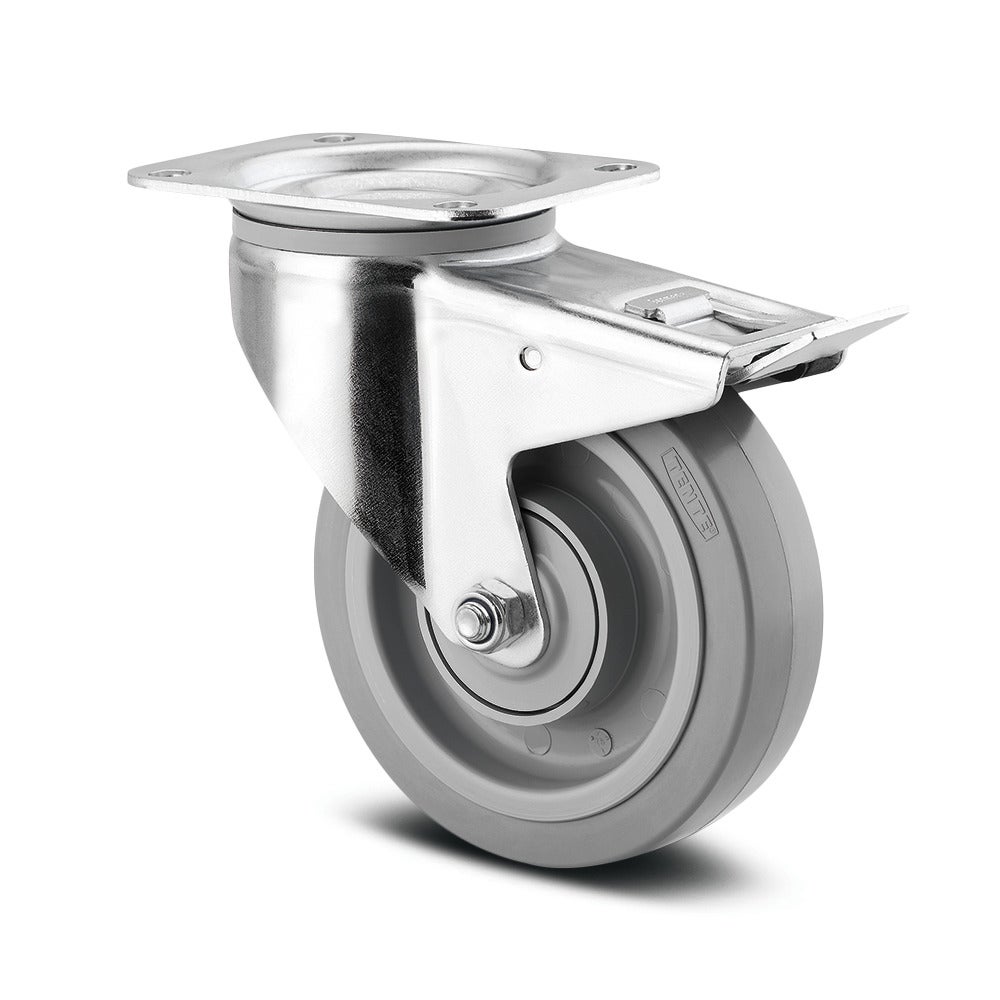

Swivel castor with total lock 160 mm
Swivel castor with total lock 160 mm
Alpha
3477UFP160P63

The Alpha swivel castor with total lock features a medium rectangular plate fitting for secure mounting applications. The housing is constructed from heavy steel sheet and incorporates two ball races for the swivel bearing mechanism, ensuring smooth directional movement and reliable locking functionality. The wheel comprises a polyamide body fitted with an elastic tyre that is non-marking and vulcanised, mounted on precision ball bearings for optimal performance, with a diameter of 160 mm. The castor has an overall height of 200 mm, providing appropriate ground clearance for various applications. Load capacity specifications include dynamic ratings of 300 kg at 4 km/h and 200 kg at 6 km/h operating speeds, whilst the static load capacity reaches 600 kg, making it suitable for demanding industrial environments including automotive OEM, catering systems, container construction, and various transport equipment applications.

160 mm
200 mm
300 kg
Details
160 mm
200 mm
300 kg
Variants

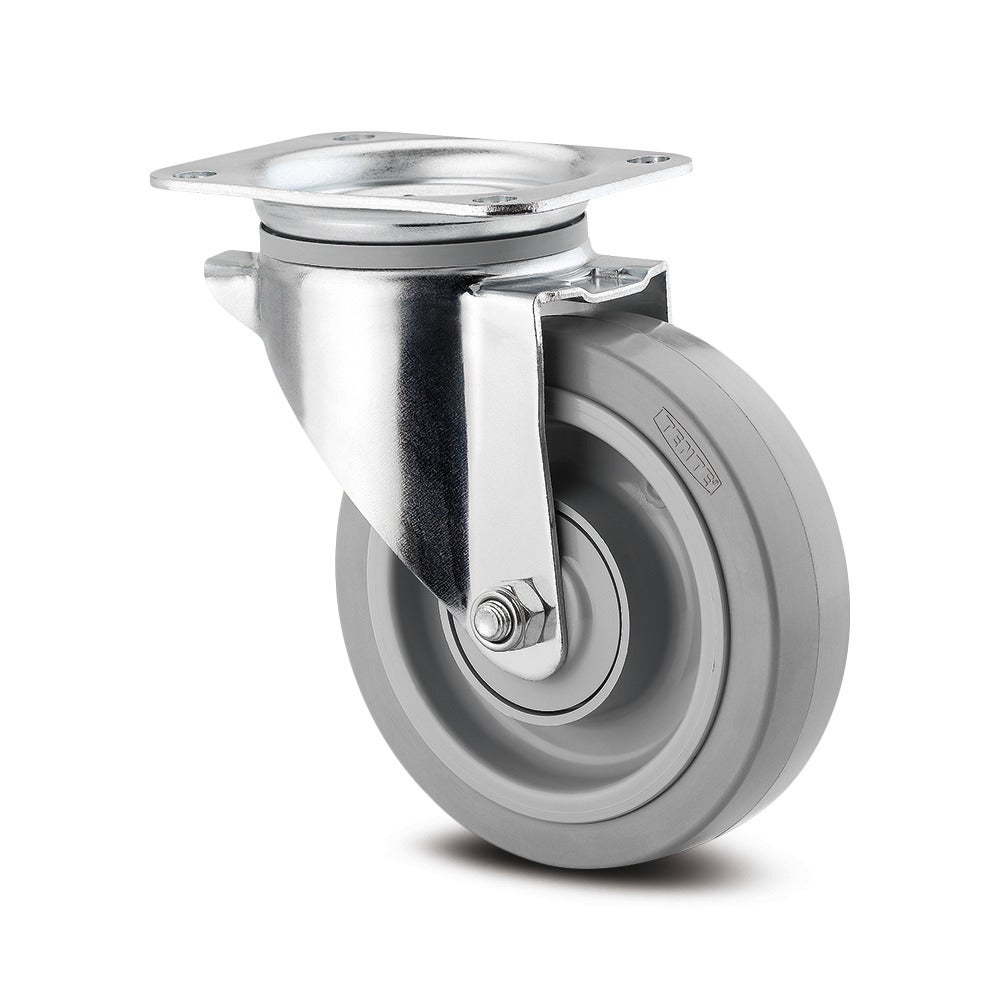

Swivel castor 160 mm
