Automatic locking system 160 mm
Alpha safety
Order number:
990060391
EAN:
4031582380798
Product number:
849DUFX160P67-M5x14
- Non-hazardous materials
- Tested quality
- Solid housing
The Alpha safety automatic locking system features a plate with central locking fitting for secure attachment. The housing is co...
Details
Custom or high volume? Request a quote now.

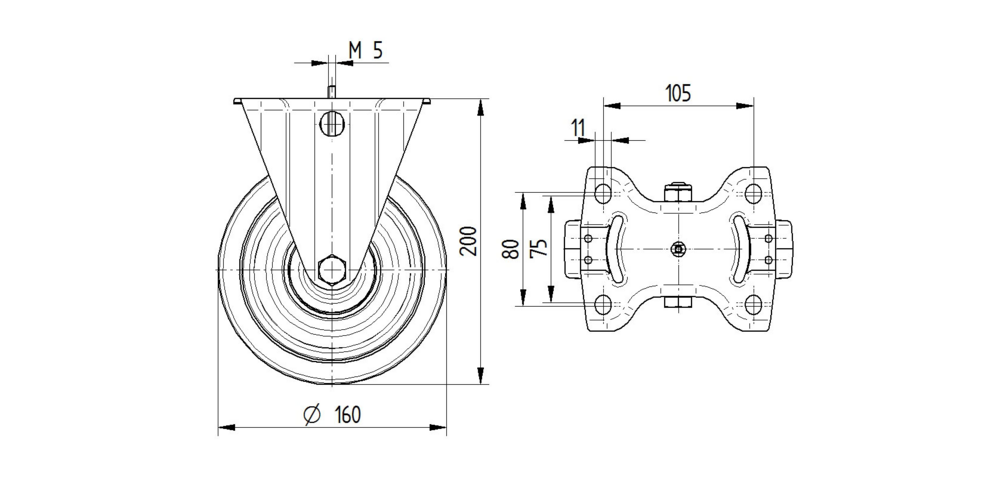

The Alpha safety automatic locking system features a plate with central locking fitting for secure attachment. The housing is constructed from heavy stainless steel with a fixed housing swivel bearing configuration, providing robust durability and stability. The wheel incorporates a polyamide body fitted with an elastic tyre that is non-marking and vulcanised, mounted on precision ball bearings that are sealed for reliable performance. The wheel diameter measures 160 mm, whilst the overall height of the complete assembly is 200 mm. Load specifications include a dynamic capacity of 300 kg at speeds up to 4 km/h and a static load capacity of 600 kg. This versatile castor is suitable for automotive OEM applications, container construction, fire fighting technology and fire protection, machine construction, post logistic systems, production and platform trolleys, tool cabinets, waste disposal equipment, work benches, and transport equipment.
Roll performance
Movement noise
Attrition
Corrosion resistance
Article numbers
Core attributes
Fitting
Housing
Wheel
Special Features
Non-hazardous materials
Complies with RoHS and REACH regulations. Does not contain polycyclic aromatic carbons or chromium (VI).
Tested quality
Tested in our own laboratory for compliance with European standards.
Solid housing
Made of pressed steel, zinc plated.
Low-maintenance wheels
Thread guards for unobstructed operation with minimal cleaning effort.
Non-marking movement
Wheels with reduced abrasion and little cleaning requirement.
Quiet rolling
Soft wheel versions for a quiet working environment.
Low-vibration transport
Extra soft wheels with good shock absorbing properties.
Protective seal
Wheels with sealed bearings to protect against spray water and dirt.
Low maintenance materials
All metal components made of Aluminum or rust-free stainless steel.
