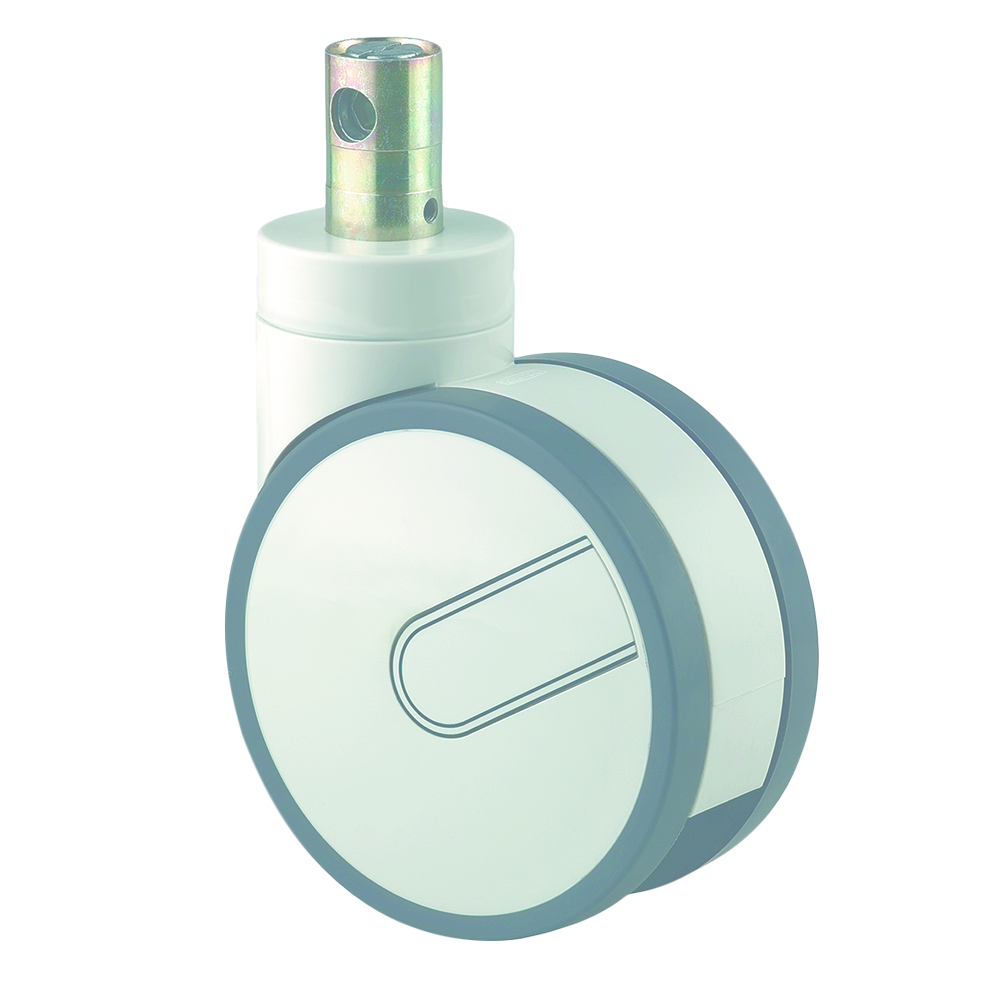

Integral twin torsion
3946UAP150R36-32S30 T 9002
EAN:
4031582355086
Product number:
00031798
Haven’t found the right product yet, have special requirements or are you interested in individual solutions? Contact us.
Downloads
Datasheet
CAD Service
detail.cadService.headlineNoFilesAvailable
Core attributes
| Product name | Integral twin torsion |
|---|---|
| Product type | Swivel castor with central , total lock |
| Load capacity at 3 km/h | 551.16 lb |
| Load capacity at 4 km/h | 551.16 lb |
| Load capacity Static | 1653.47 lb |
| Temperature range (Minimum) | -25 °C |
| Temperature range (Maximum) | 80 °C |
| Overall height | 7.6 in |
| Overall width | 2.91 in |
| Overall weight | 4.89 lb |
| Certification | Tested and monitored by TÜV Süd |
Performance
| Roll performance | |
|---|---|
| Movement noise | |
| Attrition | |
| Corrosion resistance |
Housing
| Material | Steel sheet, heavy |
|---|---|
| Fork shape | Twin wheel housing |
| Swivel bearing | Precision ball bearing |
| Color | Gray white (RAL9002), Gray white (RAL9002) |
| Offset | 1.77 in |
| Swivel radius | 4.9 in |
| Swivel interference | 9.8 in |
| Dome diameter | 2.76 in |
Wheel
| Body material | Polyamide |
|---|---|
| Tread material | Polyurethane, injected |
| Bearing | Precision ball bearing |
| Tread | Soft tread |
| Wheel Color | Gray white (RAL9002) |
| Wheel diameter | 5.91 in |
| Tread width | 0.59 in |
| Wheel width | 0.59 in |
| Hardness of tread (A) | 91 Shore A |
| Hardness of tread (D) | 40 Shore D |
Fitting
| Fitting type | Stem with cam hole for profile bars, short version |
|---|---|
| Bolt diameter | 1.26 in |
| Bolt length | 2.01 in |
| Bolt thread position | 0.28 in |
| Bolt mounting holes quantity | 2 |
Accessories
Accessories
Accessory
change lever 24S45 without set screw
Accessory
change lever 65S45 w. set screw
