Compacta
1430UOI045P60-55x39
EAN:
4031582010046
Haven’t found the right product yet, have special requirements or are you interested in individual solutions? Contact us.
Downloads
Datasheet
CAD Service
There are currently no files available for this product
Core attributes
| Applications | Shopping Trolleys, Trading |
|---|---|
| Product name | Compacta |
| Product type | Swivel castor |
| Load capacity at 3 km/h | 40 KG |
| Load capacity Static | 80 KG |
| Temperature range (Minimum) | -40 °C |
| Temperature range (Maximum) | 80 °C |

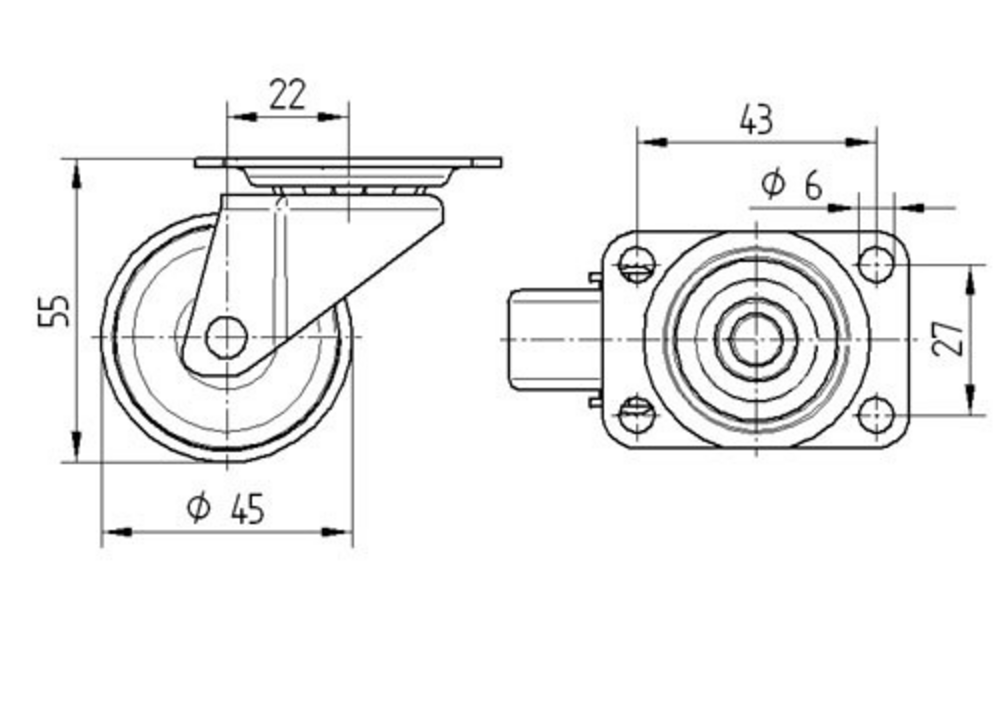

| Overall height | 54 mm |
| Overall weight | 0.09 KG |
Performance
| Roll performance | |
|---|---|
| Movement noise | |
| Attrition | |
| Corrosion resistance |
Housing
| Material | Steel sheet, light |
|---|---|
| Fork shape | Broad |
| Swivel bearing | One ball race |
| Offset | 22 mm |
| Swivel radius | 44.5 mm, 44.51 mm |
| Swivel Interference | 89 mm |
Wheel
| Body material | Polyamide |
|---|---|
| Tread material | Identical with wheel body |
| Bearing | Plain bearing with spacer tube |
| Wheel diameter | 45 mm |
| Tread width | 18 mm |
| Hardness of tread (D) | 75 Shore D |
Fitting
| Fitting type | Rectangular plate |
|---|---|
| Plate length | 55 mm |
| Plate width | 39 mm |
| Plate hole length (Maximum) | 43 mm |
| Plate hole width (Maximum) | 27 mm |
| Plate hole diameter | 6.2 mm |
