Agila care US
2441JFX150R05-28 Kraftabhängig
EAN:
4031582300475
Haven’t found the right product yet, have special requirements or are you interested in individual solutions? Contact us.
Downloads
Datasheet
CAD Service
There are currently no files available for this product
Core attributes
| Applications | Medical Beds & Stretchers |
|---|---|

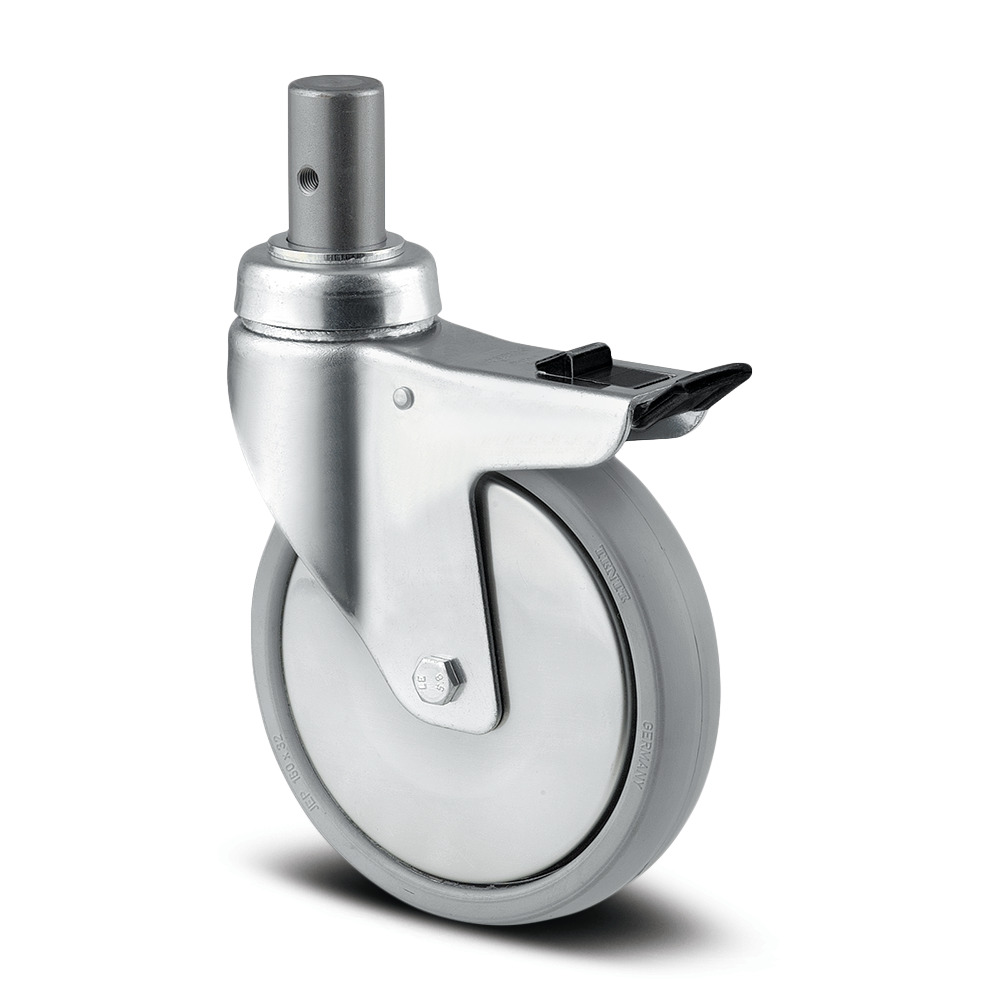

| Product name | Agila care US |
| Product type | Swivel castor with directional lock |
| Special features | Electric conductive |
| Standard | EN12530 - Devices Castors |
| Load capacity at 3 km/h | 150 KG |
| Load capacity Static | 300 KG |
| Temperature range (Minimum) | -20 °C |
| Temperature range (Maximum) | 85 °C |
| Overall height | 192.5 mm |
| Overall weight | 1.84 KG |
Performance
| Roll performance | |
|---|---|
| Movement noise | |
| Attrition | |
| Corrosion resistance |
Housing
| Material | Steel sheet, medium |
|---|---|
| Fork shape | Broad |
| Swivel bearing | Precision ball bearing |
| Offset | 50 mm |
| Swivel Interference | 250 mm |
Wheel
| Body material | Zinc die-cast |
|---|---|
| Tread material | Elastic tire, non-marking, vulcanized |
| Bearing | Precision ball bearing, sealed |
| Wheel diameter | 150 mm |
| Tread width | 32 mm |
| Hardness of tread (A) | 75 Shore A |
Fitting
| Fitting type | Solid stem, round |
|---|---|
| Bolt diameter | 28 mm |
| Bolt length | 45 mm |
Accessories
Accessories
Elastech
JFC150x32-Ø8
Wheel centre made of zinc-die-casting, Tread: elastic tyre, non-marking, vulcanized, with threadguards, precision ball bearing, stainless
