Wheel 200 mm
The Duratech wheel features a 200 mm diameter with a 50 mm wide tread and 60 mm hub length, incorporating a 20.1 mm axle hole diameter for precise fitting. Constructed from polyamide material with an identical tread composition, this wheel utilises precision ball bearing technology for optimal performance. Load specifications include a static capacity of 1600 kg and dynamic capacity of 800 kg at speeds up to 4 km/h, making it suitable for automotive OEM, container construction, electronic systems, clean-room technology, machine construction, production and platform trolleys, roll cages, store fixtures and display, and transport equipment applications.
Wheel 82 mm
The Duratech wheel is a precision castor component manufactured from heavy-duty polyamide with an 82 mm diameter and an 88 mm tread width, featuring a 90 mm hub length and a 20 mm axle hole diameter. This wheel is equipped with a precision ball bearing and is designed to accommodate a static load capacity of 1800 kg, with a dynamic load capacity of 900 kg at speeds up to 3 km/h. The tread material is identical with the wheel body, ensuring consistent performance and durability. The Duratech wheel is suitable for a wide range of industrial applications, including automotive OEM, container construction, electronic systems and clean-room technology, machine construction, production and platform trolleys, roll cages, store fixtures and display systems, and transport equipment.
Wheel 100 mm
The Duratech silent wheel is a precision castor component engineered with a hybrid damping material body and fitted with a roller bearing for smooth, quiet operation. The wheel features a diameter of 100 mm with a polyamide tread measuring 36 mm in width, providing excellent wear resistance and durability. The hub length extends 44 mm, whilst the axle incorporates a 12 mm hole diameter for secure mounting. This wheel is rated for a static load capacity of 320 kg and a dynamic load capacity of 160 kg at speeds up to 4 km/h, making it suitable for demanding industrial and commercial applications requiring reliable performance under substantial loads.
Wheel 125 mm
The Duratech silent wheel is a precision castor component engineered with a damping, hybrid material body and fitted with a roller bearing for smooth, quiet operation. The wheel features a diameter of 125 mm with a polyamide tread measuring 36 mm in width, providing excellent durability and wear resistance. The hub length extends 44 mm, whilst the axle incorporates a 12 mm hole diameter for secure mounting. This wheel is designed to support a static load capacity of 400 kg and a dynamic load capacity of 200 kg at speeds up to 4 km/h, making it suitable for demanding industrial and commercial applications requiring reliable performance and noise reduction.
Wheel 200 mm
The Duratech wheel is a polyamide castor wheel engineered for demanding industrial applications including automotive OEM, container construction, electronic systems and clean-room technology, machine construction, production and platform trolleys, roll cages, store fixtures and display systems, and transport equipment. The wheel features a diameter of 200 mm with a tread width of 50 mm, identical in material composition to the wheel body. The hub length measures 58 mm, and the axle accommodates a hole diameter of 20 mm. The wheel is equipped with a stainless roller bearing for reliable performance. Load capacity specifications indicate a static load rating of 800 kg and a dynamic load rating of 400 kg at 4 km/h, making this wheel suitable for both stationary and mobile castor applications requiring robust performance and durability in industrial environments.

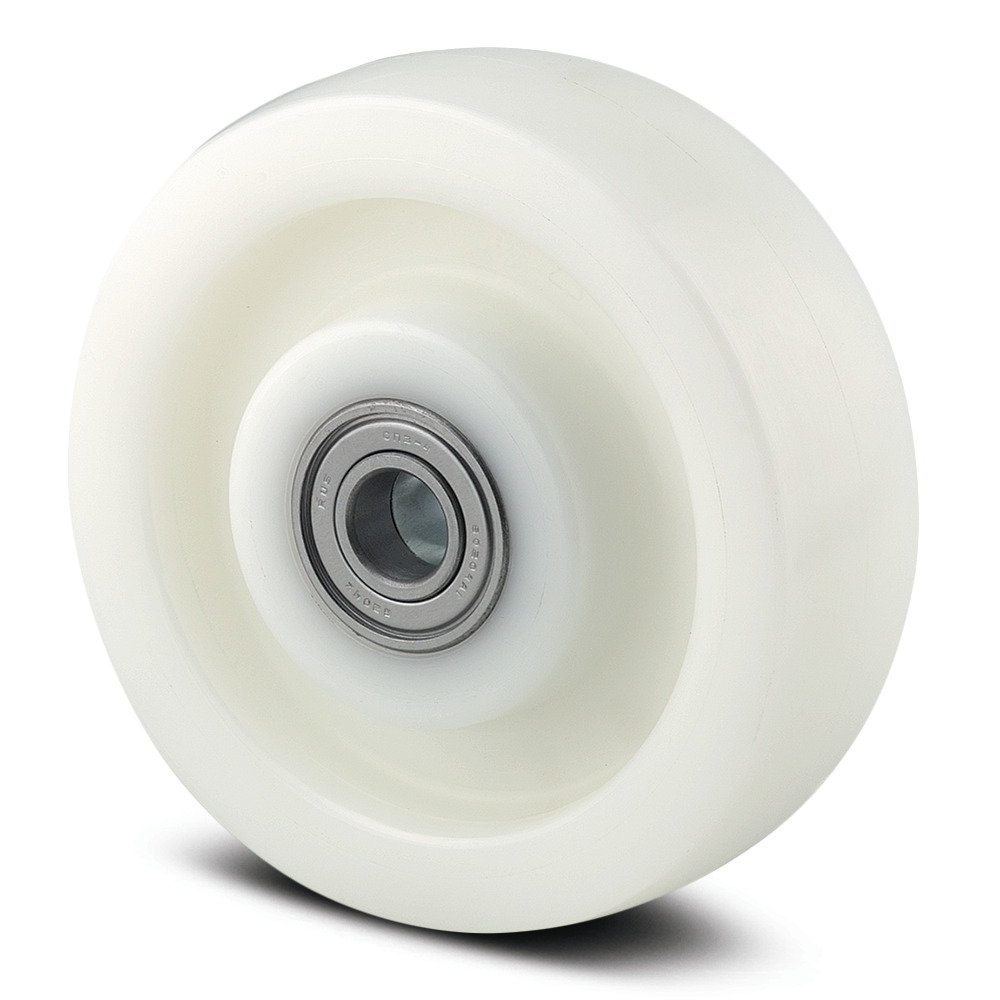

Wheel 150 mm
The Duratech wheel is a polyamide castor wheel engineered for demanding industrial applications including automotive OEM, container construction, electronic systems and clean-room technology, machine construction, production and platform trolleys, roll cages, store fixtures and display systems, and transport equipment. The wheel features a diameter of 150 mm with a tread width of 46 mm, identical in material composition to the wheel body. The hub length measures 58 mm, and the axle accommodates a hole diameter of 20 mm. The wheel is equipped with a roller bearing for smooth operation and reliable performance. Load capacity specifications indicate a static load rating of 1000 kg and a dynamic load rating of 500 kg at 4 km/h, making this wheel suitable for both stationary and mobile applications requiring robust load-bearing capabilities.

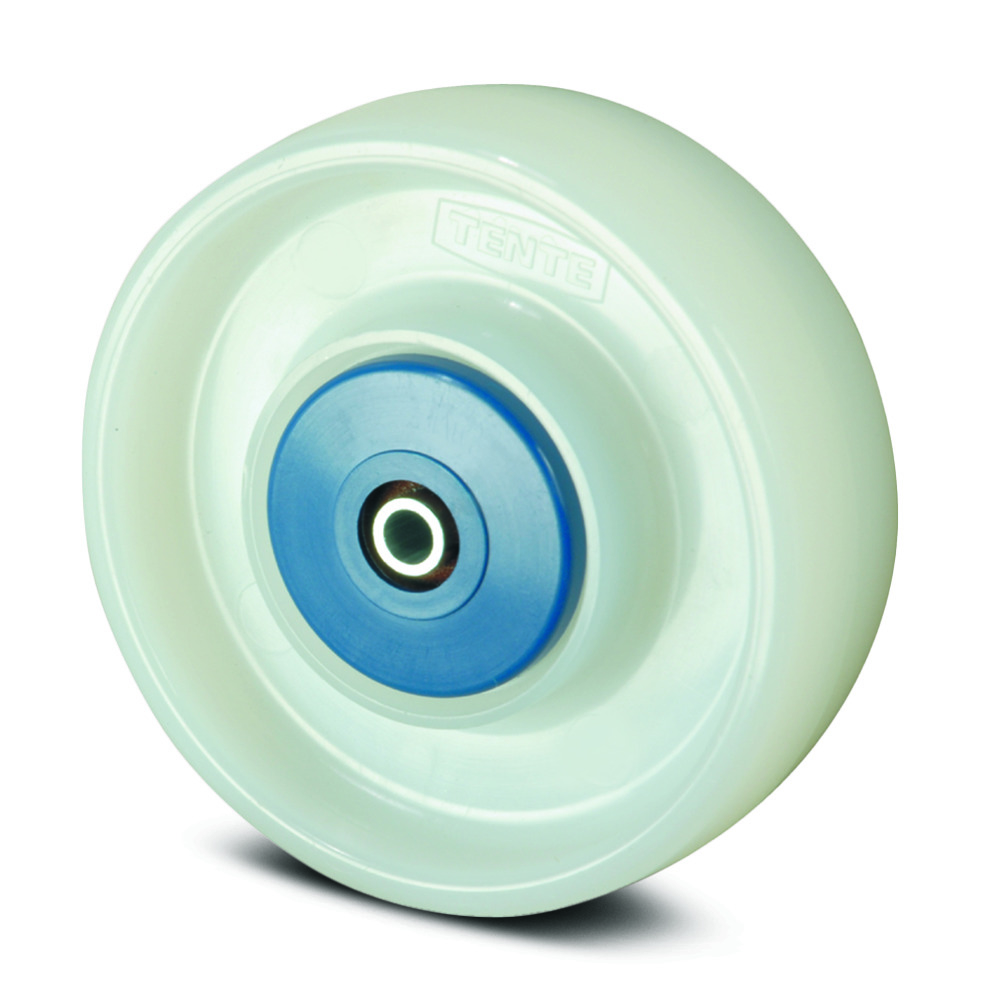

Wheel 100 mm
The Duratech Wheel is a polyamide-constructed castor wheel featuring a 100 mm diameter with a tread width of 36 mm, identical in material composition to the wheel body. The hub length measures 44.4 mm, and the wheel is fitted with a roller bearing for smooth operation. The axle hole diameter is specified at 12 mm to accommodate standard castor fittings. This wheel demonstrates robust load-carrying capabilities, with a static load capacity of 400 kg and a dynamic load capacity of 200 kg at a speed of 4 km/h, making it suitable for demanding industrial and commercial applications requiring reliable performance and durability.
Wheel 125 mm
The Duratech Wheel is a polyamide-constructed castor wheel featuring a diameter of 125 mm with a tread width of 40 mm, where the tread material is identical with the wheel body. The hub length measures 44.4 mm, and the wheel is fitted with a roller bearing for smooth operation. The axle hole diameter is 12 mm, accommodating standard castor fittings. This wheel demonstrates robust load-bearing capabilities, with a static load capacity of 600 kg and a dynamic load capacity of 300 kg at a speed of 4 km/h, making it suitable for demanding industrial and commercial applications requiring reliable performance and durability.
Wheel 125 mm
The Duratech wheel is a polyamide-constructed castor wheel featuring a 125 mm diameter with a 40 mm tread width and a hub length of 48.4 mm, designed to accommodate an axle hole diameter of 12 mm. This wheel is equipped with a roller bearing and utilises a tread material identical with the wheel body for consistent performance and durability. The Duratech wheel demonstrates robust load-carrying capabilities, with a static load capacity of 600 kg and a dynamic load capacity of 300 kg at speeds up to 4 km/h, making it suitable for demanding industrial and commercial castor applications requiring reliable performance under substantial loads.
Wheel 100 mm
The Duratech silent wheel is a precision castor component engineered for demanding industrial applications, featuring a robust construction with a 100 mm diameter and a 36 mm wide polyamide tread that delivers reliable performance across varied floor surfaces. The wheel body is manufactured from damping hybrid material, which effectively reduces noise and vibration during operation, whilst the integrated roller bearing ensures smooth, consistent rotation with minimal maintenance requirements. The hub measures 44 mm in length and accommodates a 12 mm diameter axle hole for secure mounting compatibility with standard castor assemblies. This wheel is rated for a static load capacity of 320 kg and a dynamic load capacity of 160 kg at speeds up to 4 km/h, making it suitable for both stationary and mobile applications where durability and load-bearing performance are critical. The combination of advanced material technology and precision engineering ensures extended service life and reliable operation in demanding environments.
Wheel 100 mm
The Duratech silent wheel is a polyamide castor wheel engineered for demanding industrial applications, featuring a diameter of 100 mm with a tread width of 36 mm that is identical with the wheel body material. The hub extends 45 mm in length and accommodates an axle hole diameter of 8.4 mm, ensuring secure mounting compatibility. This wheel is equipped with a precision ball bearing, damped, which provides smooth and reliable rotation whilst minimising noise during operation. The load capacity specifications are rated at 500 kg static load and 250 kg dynamic load at a speed of 4 km/h, making it suitable for both stationary and mobile castor applications where consistent performance and durability are essential requirements.
Wheel 125 mm
The Duratech silent wheel is a polyamide castor wheel designed for demanding industrial applications, featuring a diameter of 125 mm with a tread width of 40 mm that is identical with the wheel body material. The hub extends 45 mm in length, and the wheel is mounted via an 8.4 mm axle hole diameter. This wheel incorporates a precision ball bearing with damping technology to ensure smooth, quiet operation. The load capacity specifications are rated at 600 kg for static loads and 300 kg for dynamic loads at speeds up to 4 km/h, making it suitable for both stationary and mobile castor applications requiring reliable performance and noise reduction in professional environments.
Wheel 250 mm
The Duratech wheel is a precision castor component manufactured from polyamide, super heavy material, featuring a tread width of 50 mm that is identical with the wheel body. The wheel has an overall diameter of 250 mm with a hub length of 60 mm and an axle hole diameter of 40 mm, accommodating standard castor mounting requirements. The wheel is equipped with a precision ball bearing for smooth rotation and reliable performance. Load capacity specifications indicate a static load rating of 8400 kg, whilst dynamic load capacity reaches 3500 kg at 6 km/h or 4200 kg at 4 km/h, making this wheel suitable for heavy-duty industrial applications requiring sustained load-bearing capability across varying operational speeds.
Wheel 150 mm
The Duratech wheel is a precision castor component manufactured from heavy-duty polyamide with a tread width of 50 mm that is identical with the wheel body. The wheel features a diameter of 150 mm and a hub length of 60 mm, with an axle hole diameter of 20 mm designed to accommodate standard castor fittings. The wheel is equipped with a precision ball bearing to ensure smooth rotation and extended operational life. The static load capacity is rated at 1600 kg, whilst the dynamic load capacity varies depending on operational speed, delivering 800 kg at 6 km/h or 960 kg at 4 km/h, making this wheel suitable for demanding industrial and commercial castor applications requiring reliable performance under substantial loads.
Wheel 100 mm
The Duratech wheel is a precision castor component manufactured from heavy-duty polyamide with a tread width of 50 mm that is identical with the wheel body. The wheel features a diameter of 100 mm with a hub length of 60 mm and an axle hole diameter of 20 mm, accommodating standard castor mounting requirements. The wheel is equipped with a precision ball bearing to ensure smooth rotation and longevity. The load capacity specifications indicate a static load rating of 1200 kg, whilst the dynamic load capacity reaches 600 kg at 6 km/h or 720 kg at 4 km/h, making this wheel suitable for demanding industrial and commercial applications requiring reliable performance under sustained operational conditions.
Wheel 160 mm
The Duratech wheel is a precision castor component manufactured from heavy-duty polyamide with a tread width of 50 mm that is identical with the wheel body. The wheel features a diameter of 160 mm and a hub length of 60 mm, with an axle hole diameter of 20 mm designed to accommodate standard castor fittings. The wheel is equipped with a precision ball bearing to ensure smooth rotation and longevity. The static load capacity is rated at 1700 kg, whilst the dynamic load capacity varies depending on operational speed, delivering 850 kg at 6 km/h or 1020 kg at 4 km/h, making this wheel suitable for demanding industrial and commercial castor applications requiring reliable performance under substantial loads.
Wheel 100 mm
The Duratech wheel is a precision castor component manufactured from polyamide, super heavy material with a tread width of 50 mm that is identical with the wheel body. The wheel features a diameter of 100 mm and a hub length of 60 mm, with an axle hole diameter of 20 mm designed to accommodate a precision ball bearing. This wheel is engineered to support a static load capacity of 2800 kg, whilst the dynamic load capacity varies depending on operational speed, delivering 1400 kg at 6 km/h and 1680 kg at 4 km/h. These specifications make the Duratech wheel suitable for demanding industrial castor applications requiring robust load-bearing performance and reliable rotational characteristics.
Wheel 125 mm
The Duratech wheel is a precision castor component manufactured from polyamide, super heavy material with a tread width of 50 mm that is identical with the wheel body. The wheel features a diameter of 125 mm with a hub length of 60 mm and an axle hole diameter of 20 mm, accommodating standard castor installations. Equipped with a precision ball bearing for smooth operation, this wheel delivers robust performance across demanding applications. The load capacity specifications indicate a static load rating of 3400 kg, whilst the dynamic load capacity reaches 1700 kg at 6 km/h or 2040 kg at 4 km/h, providing flexibility for various operational speeds and load requirements. These specifications make the Duratech wheel suitable for heavy-duty industrial and commercial castor applications requiring reliable performance and substantial load-bearing capability.
Wheel 150 mm
The Duratech wheel is a precision castor component manufactured from polyamide, super heavy material with a tread width of 50 mm that is identical with the wheel body. The wheel features a diameter of 150 mm and a hub length of 60 mm, with an axle hole diameter of 30 mm designed to accommodate standard castor fittings. The wheel is equipped with a precision ball bearing to ensure smooth rotation and longevity. The static load capacity reaches 4200 kg, whilst the dynamic load capacity varies depending on operational speed, delivering 2100 kg at 6 km/h and 2520 kg at 4 km/h. These specifications make the Duratech wheel suitable for demanding industrial and commercial castor applications requiring reliable performance under substantial loads.
Wheel 160 mm
The Duratech wheel is a precision castor component manufactured from polyamide, super heavy material, featuring a tread width of 50 mm that is identical with the wheel body. The wheel has an overall diameter of 160 mm with a hub length of 60 mm and an axle hole diameter of 30 mm. It is equipped with a precision ball bearing to ensure smooth operation. The static load capacity is rated at 4500 kg. For dynamic loading conditions, the wheel supports 2250 kg at 6 km/h or alternatively 2700 kg at 4 km/h, providing flexibility for various operational requirements and speed profiles in demanding industrial applications.
Wheel 200 mm
The Duratech wheel is a precision castor component manufactured from polyamide, super heavy material with a tread width of 50 mm that is identical with the wheel body. The wheel features a diameter of 200 mm and a hub length of 60 mm, with an axle hole diameter of 35 mm to accommodate standard mounting configurations. The wheel is equipped with a precision ball bearing to ensure smooth rotation and longevity. The static load capacity reaches 5600 kg, whilst the dynamic load capacity varies depending on operational speed, delivering 2800 kg at 6 km/h and 3360 kg at 4 km/h, making this wheel suitable for demanding industrial and commercial castor applications requiring reliable performance under substantial loads.
Wheel 250 mm
The Duratech wheel is a precision castor component manufactured from heavy-duty polyamide with a tread width of 50 mm that is identical with the wheel body. This wheel features a diameter of 250 mm and a hub length of 60 mm, with an axle hole diameter of 25 mm designed to accommodate standard castor fittings. The wheel is equipped with a precision ball bearing to ensure smooth rotation and longevity. The static load capacity reaches 2200 kg, whilst the dynamic load capacity varies depending on operational speed, delivering 1100 kg at 6 km/h and 1320 kg at 4 km/h, making it suitable for demanding industrial and commercial applications requiring reliable performance under substantial loads.
Wheel 200 mm
The Duratech wheel is a precision castor component manufactured from heavy-duty polyamide with a diameter of 200 mm and a tread width of 50 mm, featuring an identical material composition between the tread and wheel body. The hub extends 60 mm in length, whilst the axle incorporates a 25 mm hole diameter for secure mounting. This wheel is equipped with a precision ball bearing to ensure smooth rotation and longevity. The load capacity specifications indicate a static load rating of 1600 kg, with dynamic load capacities of 1000 kg at 6 km/h and 1200 kg at 4 km/h, making it suitable for demanding industrial and commercial castor applications requiring reliable performance across varying operational speeds and load conditions.
Advantages of Nylon Wheels
TENTE nylon wheels combine strength, durability, and excellent rolling performance, making them a reliable solution for demanding mobility requirements. Nylon wheels are especially valued for their lightweight construction, high load capacity, and resistance to chemicals, moisture, and abrasion, ensuring consistent performance even under the toughest conditions. When deciding whether nylon wheels are the right choice for your individual use case, factors such as floor conditions, load capacity requirements, wheel size, and the type of castor housing used need to be considered to achieve the optimal mobility solution.
TENTE nylon castor wheels offer several key benefits:
High Load Capacity and Low Rolling Resistance – Nylon wheels are engineered to handle heavy loads while maintaining smooth and efficient rolling performance on hard, even surfaces. Their low rolling resistance makes them ideal for transporting goods effortlessly in environments with smooth, durable flooring.
Chemical and Moisture Resistance – Thanks to their non-porous and robust material properties, nylon wheels resist chemicals, oils, greases, and moisture. To guarantee optimal performance in demanding environments, they should be paired with the appropriate castor housing, ensuring full protection against corrosion and external influences.
High Durability and Low Maintenance – Built to withstand intensive use, nylon wheels offer outstanding resistance to abrasion, wear, and deformation. Their long service life reduces the need for replacements and lowers overall maintenance, ensuring a cost-effective and reliable mobility solution.
Types of Nylon Wheels
TENTE nylon wheels are available in a variety of designs, sizes, and load capacities, allowing you to choose the ideal solution for your specific mobility requirements. Our portfolio ranges from compact wheels for lighter weight applications to heavy duty nylon castor wheels engineered to handle extreme loads in demanding environments. While the material properties of nylon contribute significantly to rolling performance and resistance to wear, the choice of castor housing is equally important. The housing also determines the overall load capacity, stability, and durability of the mobility solution. By selecting the right combination of wheel and housing, you ensure smooth operation, safety, and long-lasting performance. Below are some of the frequently searched types of nylon wheels:
Heavy Duty Nylon Castor Wheels
Engineered to prioritize strength, dimensional stability, and high load capacity, heavy duty nylon castor wheels deliver efficient rolling on hard, even floors with minimal deformation under load. They’re a natural fit for demanding industrial use where stable, predictable steering and long service intervals matter. Pairing them with reinforced housings unlocks their full load potential and enhances stability in continuous duty, while precision ball bearings help maintain low push/pull forces and steady performance. Among our product offerings, the MOP wheels serve as a prime example. These wheels combine super heavy TENTE Duratech polyamide with a precision ball bearing. They are available in wheel diameters of 75 mm up to 400 mm, and in their largest configuration offer a static load capacity of up to 15.000 kg. MOP wheels are commonly used for example in our Omikron twin castor, which pairs these heavy duty nylon wheels with a robust cast iron twin wheel housing.
Small Nylon Wheels
Designed for compact installations and tight manoeuvres, small nylon wheels prioritise low rolling resistance, accurate positioning, and a minimal overall height. On smooth floors they provide precise, predictable handling and are ideal for light to medium duty applications where footprint and manoeuvrability are critical. Pair with lightweight housings to enhance agility; select reinforced housings when higher permissible loads are required within the same space constraints, without compromising control. One representative product line in our range are the UOO wheels. These small nylon wheels are available as small as 50 mm wheel diameter and combine a polyamide wheel body and tread with plain bearings. TENTE UOO wheels are commonly used for example in our Agila or Agila twin castors, which use a steel sheet single or twin wheel housing and offer various mounting and locking options. With their small overall height, these castors using nylon castor wheels are ideal for applications that only offer limited installation space.
Fields of Application for Nylon Wheels
Nylon wheels are used across multiple sectors due to their mechanical strength, dimensional stability, and cleanability. Their suitability for specific applications depends on factors such as wheel size, floor conditions, and the type of castor housing selected. For industrial use, nylon wheels are for example used on professional cleaning carts, machinery and workshop equipment, heavy transport solutions and more. In mobile and commercial contexts, nylon wheels are for example integrated in roll cages, dollies, and other retail logistics related applications. By selecting the right combination of nylon wheel and castor housing, TENTE nylon wheels can be configured to perform reliably - from hygiene-critical applications like professional cleaning carts to heavy duty industrial and mobile use cases.
