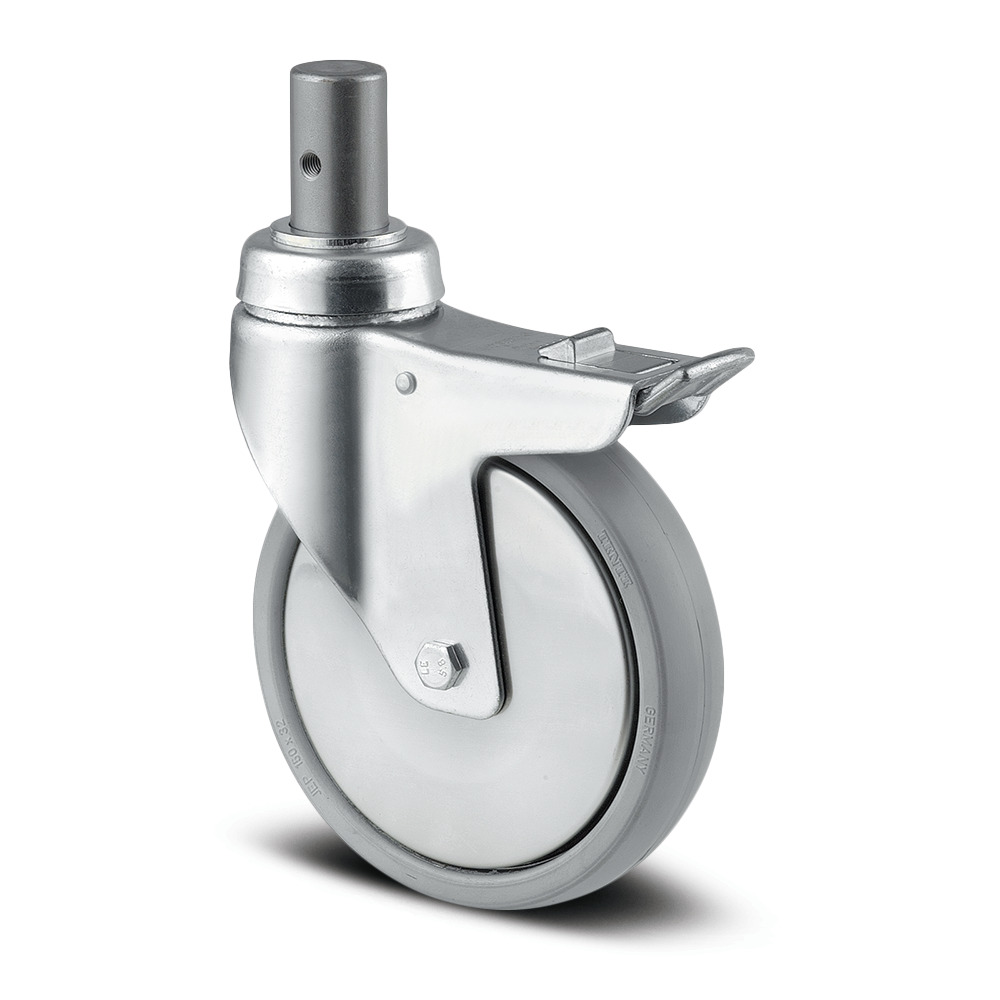

Agila care US
2447JFX150R05-28
EAN:
4031582300550
Haven’t found the right product yet, have special requirements or are you interested in individual solutions? Contact us.
Downloads
Datasheet
CAD Service
There are currently no files available for this product
Core attributes
| Applications | Medical Beds & Stretchers |
|---|---|
| Product name | Agila care US |
| Product type | Swivel castor with total lock |
| Special features | Electric conductive |
| Standard | EN12530 - Devices Castors |
| Load capacity at 3 km/h | 150 KG |
| Load capacity Static | 300 KG |
| Temperature range (Minimum) | -20 °C |
| Temperature range (Maximum) | 85 °C |
| Overall height | 192.5 mm |
| Overall weight | 1.99 KG |
Performance
| Roll performance | |
|---|---|
| Movement noise | |
| Attrition | |
| Corrosion resistance |
Housing
| Material | Steel sheet, medium |
|---|---|
| Fork shape | Broad |
| Swivel bearing | Precision ball bearing |
| Offset | 50 mm |
| Swivel Interference | 250 mm |
Wheel
| Body material | Zinc die-cast |
|---|---|
| Tread material | Elastic tire, non-marking, vulcanized |
| Bearing | Precision ball bearing, sealed |
| Wheel diameter | 150 mm |
| Tread width | 32 mm |
| Hardness of tread (A) | 75 Shore A |
Fitting
| Fitting type | Solid stem, round |
|---|---|
| Bolt diameter | 28 mm |
| Bolt length | 45 mm |
Crossselling
Crossselling
Agila care US
2440JFX150R05-28
Swivel castor, housing made of pressed steel, bright zinc plated, blue passivated, covered precision swivel bearing, hardened balls and tracks, bearing sleeve welded to fork, wheel axle with nut, solid plug fitting.
Accessories
Accessories
Elastech
JFC150x32-Ø8
Wheel centre made of zinc-die-casting, Tread: elastic tyre, non-marking, vulcanized, with threadguards, precision ball bearing, stainless
