Agila care US
2441UAP200R05-28 Kickstop
EAN:
4031582300512
Haven’t found the right product yet, have special requirements or are you interested in individual solutions? Contact us.
Downloads
Datasheet
CAD Service
There are currently no files available for this product
Core attributes
| Applications | Medical Beds & Stretchers |
|---|---|
| Product name | Agila care US |

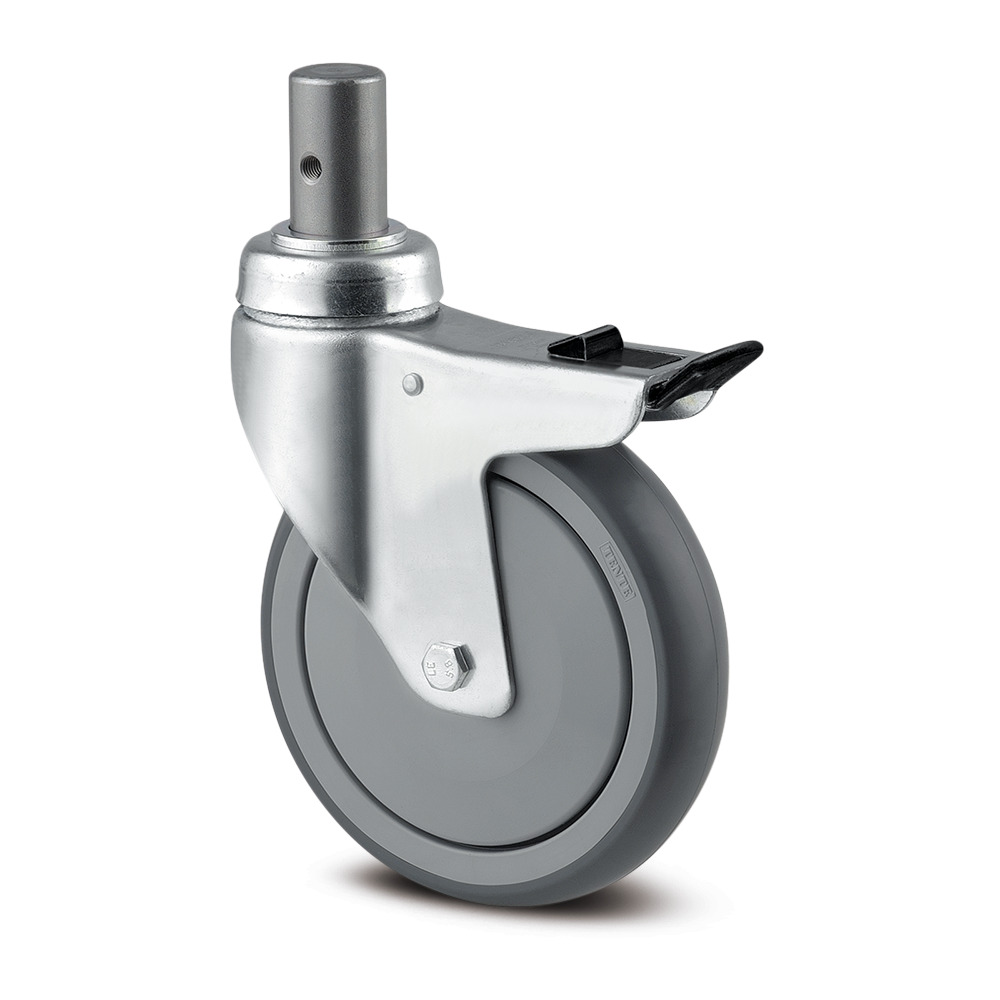

| Product type | Swivel castor with directional lock |
| Standard | EN12530 - Devices Castors |
| Load capacity at 3 km/h | 150 KG |
| Load capacity Static | 300 KG |
| Temperature range (Minimum) | -40 °C |
| Temperature range (Maximum) | 80 °C |

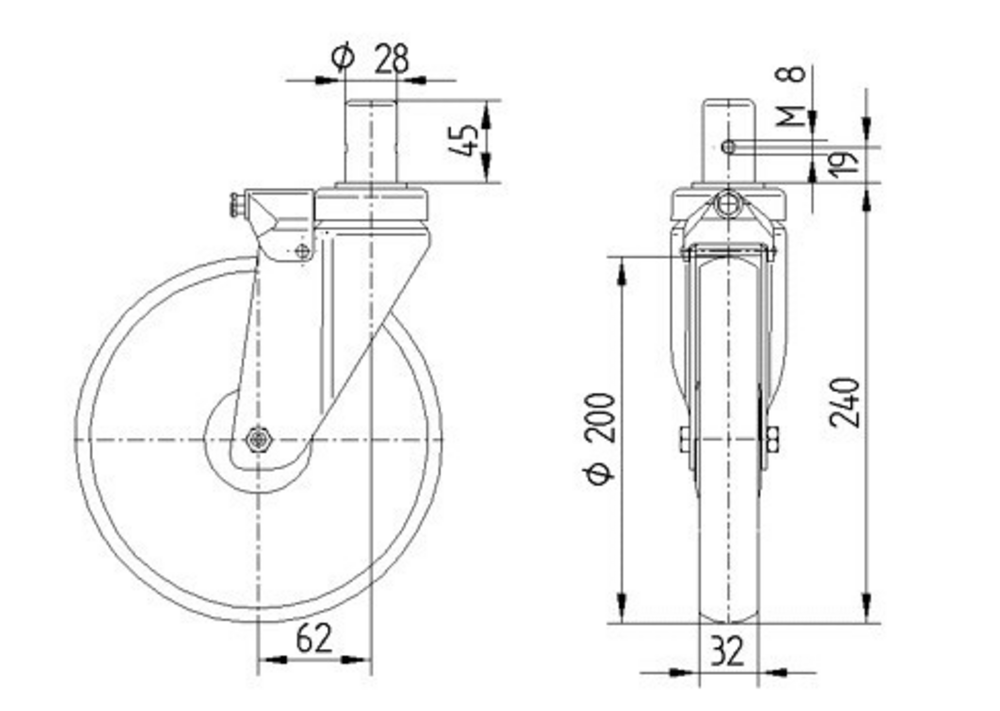

| Overall height | 240 mm |
| Overall weight | 2.04 KG |
Performance
| Roll performance | |
|---|---|
| Movement noise | |
| Attrition | |
| Corrosion resistance |
Housing
| Material | Steel sheet, medium |
|---|---|
| Fork shape | Broad |
| Swivel bearing | Precision ball bearing |
| Offset | 62 mm |
| Swivel Interference | 324 mm |
Wheel
| Body material | Polyamide |
|---|---|
| Tread material | Polyurethane, injected |
| Bearing | Precision ball bearing |
| Wheel diameter | 200 mm |
| Tread width | 32 mm |
| Hardness of tread (D) | 40 Shore D |
Fitting
| Fitting type | Solid stem, round |
|---|---|
| Bolt diameter | 28 mm |
| Bolt length | 45 mm |
