Wheel 98 mm
Novatech
EAN:
4031582495102
Product number:
ITP098x40-Ø12 HL40 cv R49 tread-turn
- Non-hazardous materials
- Tested quality
- Non-marking movement
The Novatech wheel is a precision castor component engineered for demanding industrial applications, featuring a robust aluminiu...
Details
Custom or high volume? Request a quote now.

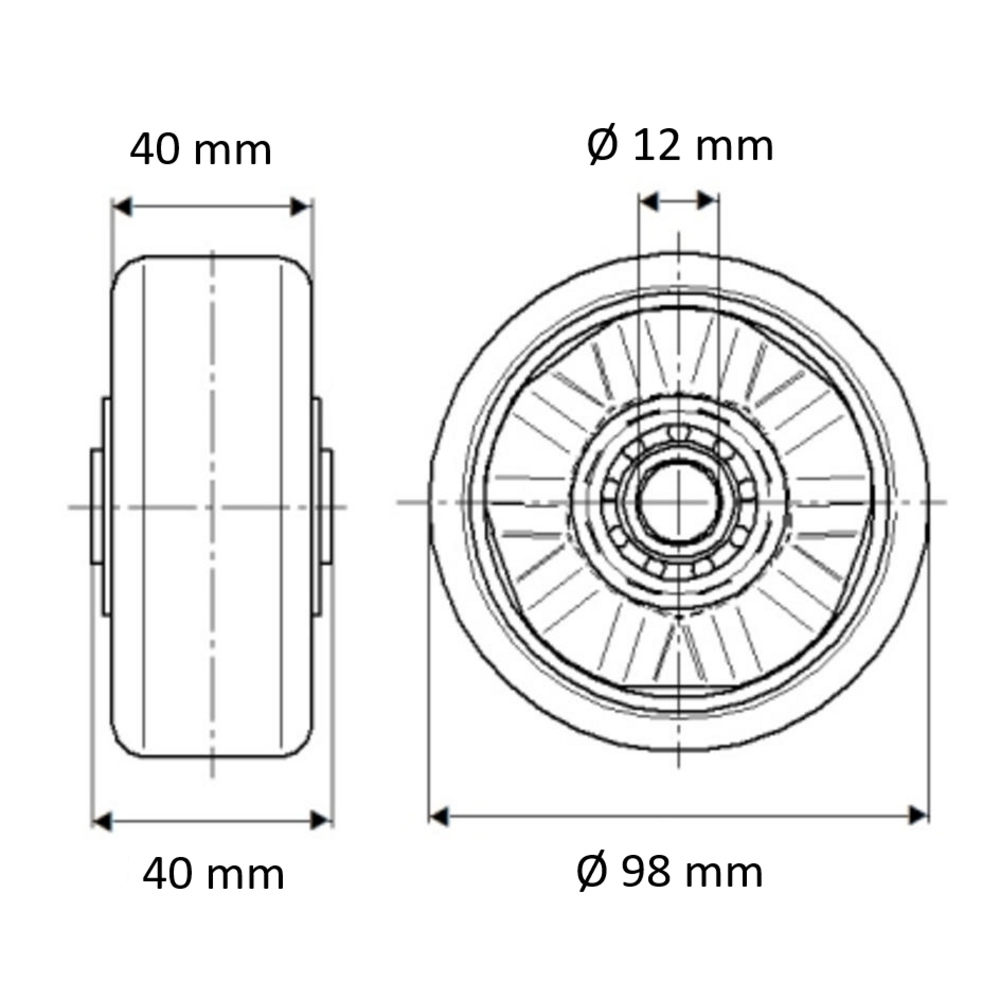

The Novatech wheel is a precision castor component engineered for demanding industrial applications, featuring a robust aluminium body with a polyurethane, casted tread measuring 40 mm in width. The wheel has an overall diameter of 98 mm with a hub length of 40 mm and an axle hole diameter of 12 mm, accommodating standard castor mounting configurations. Equipped with a precision ball bearing for smooth rotation and minimal friction, this wheel delivers exceptional performance across varied operating conditions. The load capacity specifications indicate a static load rating of 600 kg, whilst the dynamic load capacity reaches 240 kg at 6 km/h or 300 kg at 4 km/h, providing flexibility for different speed and load combinations. These specifications make the Novatech wheel suitable for applications requiring reliable, high-capacity mobility solutions in both light and medium-duty industrial environments.
Roll performance
Movement noise
Attrition
Corrosion resistance
Article numbers
Core attributes
Wheel
Special Features
Non-hazardous materials
Complies with RoHS and REACH regulations. Does not contain polycyclic aromatic carbons or chromium (VI).
Tested quality
Tested in our own laboratory for compliance with European standards.
Non-marking movement
Wheels with reduced abrasion and little cleaning requirement.
Ergonomically friendly use
Wheels with optimised roll resistance to lighten the load for the user.
