Wheel 85 mm
Duratech
Order number:
199832612
EAN:
4031582331189
Product number:
TOP 085x70-Ø20 HL70
- Non-hazardous materials
- Tested quality
- Low wear and tear wheels
The Duratech wheel features a robust polyamide, heavy body construction with an 85 mm diameter and 70 mm tread width, incorporat...
Details
Custom or high volume? Request a quote now.
CAD files
You can download construction data for this product.
Data sheets

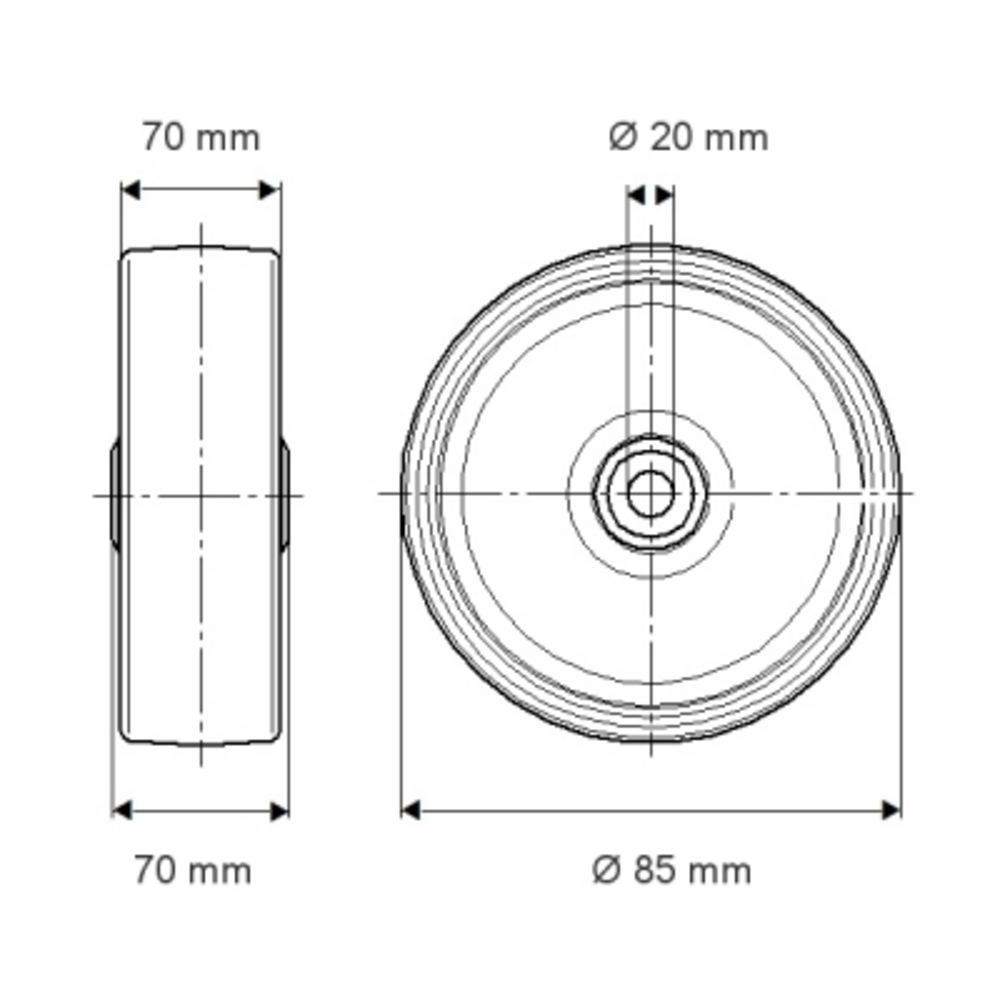

The Duratech wheel features a robust polyamide, heavy body construction with an 85 mm diameter and 70 mm tread width, incorporating a precision ball bearing system and 20 mm axle hole diameter with 70 mm hub length. The tread material is identical with wheel body, ensuring consistent performance characteristics. Load capacity specifications include dynamic ratings of 750 kg at 4 km/h and 600 kg at 6 km/h operating speeds, whilst providing a static load capacity of 1500 kg for stationary applications.
Roll performance
Movement noise
Attrition
Corrosion resistance
Article numbers
Core attributes
Wheel
Special Features
Non-hazardous materials
Complies with RoHS and REACH regulations. Does not contain polycyclic aromatic carbons or chromium (VI).
Tested quality
Tested in our own laboratory for compliance with European standards.
Low wear and tear wheels
Durable wheels with extremely low wear and tear properties.
