Wheel 85 mm
Novatech
Order number:
199839737
EAN:
4031582330380
Product number:
ETP 085x115-Ø30 HL115
- Non-hazardous materials
- Tested quality
- Non-marking movement
The Novatech wheel features a steel, iron body construction with an 85 mm diameter and polyurethane, casted tread measuring 115 ...
Details
Custom or high volume? Request a quote now.
CAD files
You can download construction data for this product.
Data sheets

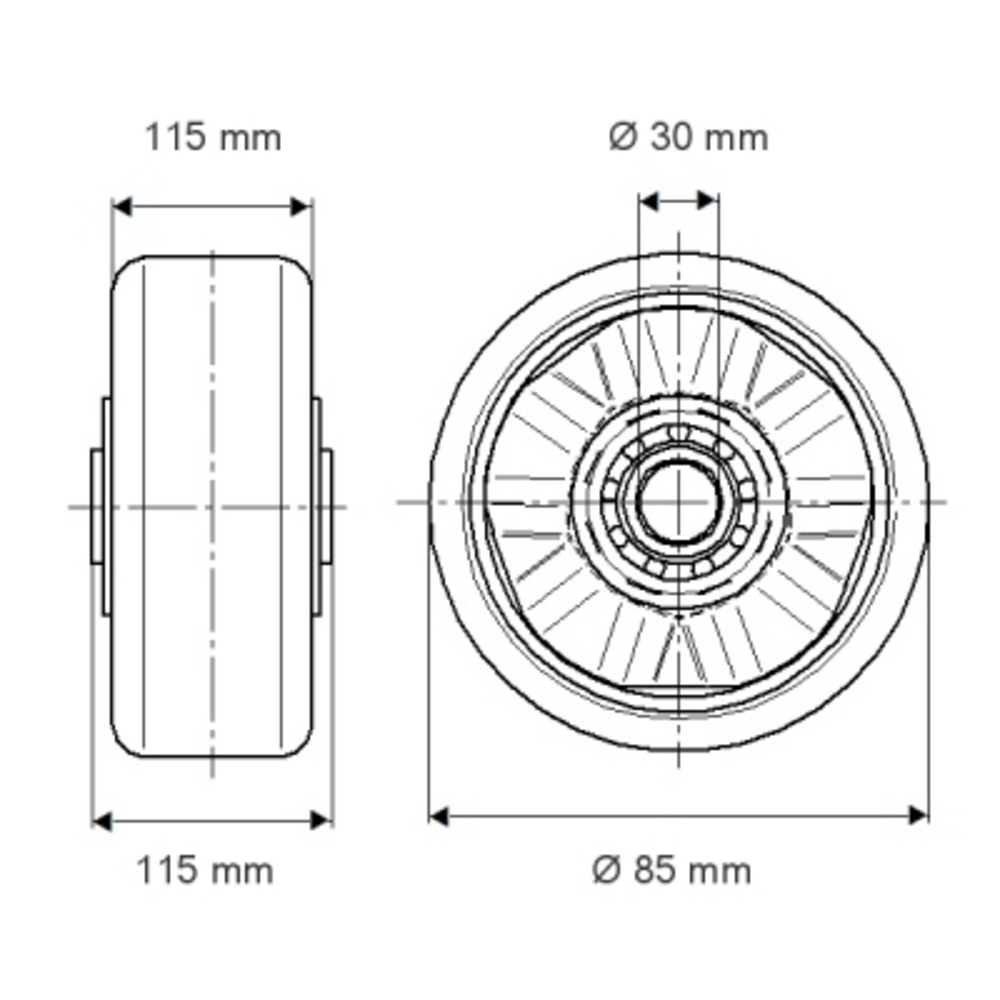

The Novatech wheel features a steel, iron body construction with an 85 mm diameter and polyurethane, casted tread measuring 115 mm in width, incorporating precision ball bearing technology with a 30 mm axle hole diameter and 115 mm hub length. This industrial wheel delivers exceptional load performance with a static load capacity of 1,700 kg and dynamic load capacities of 850 kg at 4 km/h and 680 kg at 6 km/h operating speeds, making it suitable for demanding castor applications requiring reliable load-bearing capabilities and smooth operation.
Roll performance
Movement noise
Attrition
Corrosion resistance
Article numbers
Core attributes
Wheel
Special Features
Non-hazardous materials
Complies with RoHS and REACH regulations. Does not contain polycyclic aromatic carbons or chromium (VI).
Tested quality
Tested in our own laboratory for compliance with European standards.
Low-maintenance wheels
Thread guards for unobstructed operation with minimal cleaning effort.
Non-marking movement
Wheels with reduced abrasion and little cleaning requirement.
Ergonomically friendly use
Wheels with optimised roll resistance to lighten the load for the user.
