Wheel 80 mm
Duratech
Order number:
199827802
EAN:
4031582331011
Product number:
TOP 080x60-Ø25 HL60
- Non-hazardous materials
- Tested quality
- Low wear and tear wheels
The Duratech wheel features a robust polyamide, heavy body construction with an 80 mm diameter and 60 mm tread width, incorporat...
Details
Custom or high volume? Request a quote now.
CAD files
You can download construction data for this product.
Data sheets

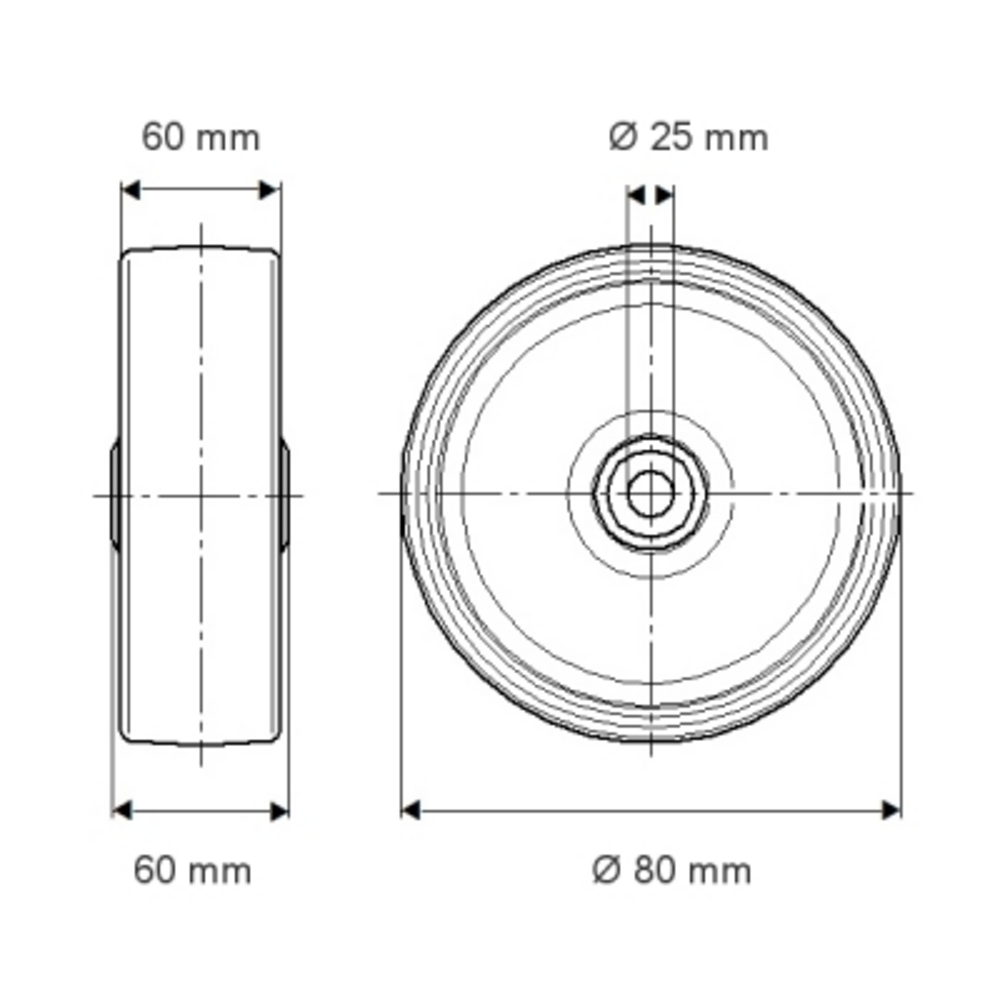

The Duratech wheel features a robust polyamide, heavy body construction with an 80 mm diameter and 60 mm tread width, incorporating a precision ball bearing system and 25 mm axle hole diameter with 60 mm hub length. The tread material is identical with the wheel body, ensuring consistent performance characteristics. Load capacity specifications include a static rating of 1200 kg, whilst dynamic capacity varies with operational speed: 600 kg at 4 km/h and 480 kg at 6 km/h, making it suitable for demanding industrial castor applications.
Roll performance
Movement noise
Attrition
Corrosion resistance
Article numbers
Core attributes
Wheel
Special Features
Non-hazardous materials
Complies with RoHS and REACH regulations. Does not contain polycyclic aromatic carbons or chromium (VI).
Tested quality
Tested in our own laboratory for compliance with European standards.
Low wear and tear wheels
Durable wheels with extremely low wear and tear properties.
