Wheel 50 mm
Maxtech
Order number:
199008698
EAN:
4031582322835
Product number:
UAK 050x20-Ø6,1
- Non-hazardous materials
- Tested quality
- Non-marking movement
The Maxtech wheel is a precision castor component engineered with a polyamide body and featuring a 50 mm diameter design suitabl...
Details
Custom or high volume? Request a quote now.
Data sheets

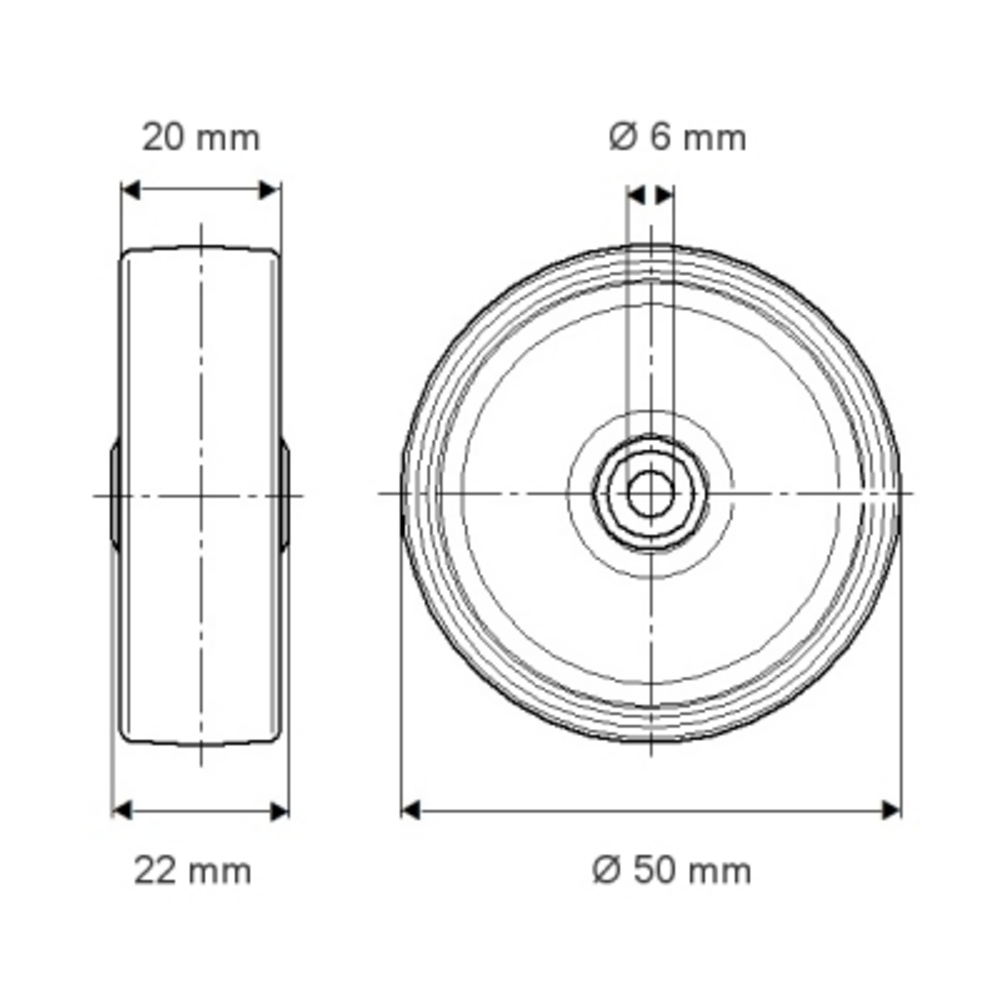

The Maxtech wheel is a precision castor component engineered with a polyamide body and featuring a 50 mm diameter design suitable for demanding industrial applications. The tread comprises a 20 mm wide polyurethane injected surface that provides excellent grip and durability, whilst the hub measures 22 mm in length to ensure stable mounting. The wheel is equipped with a cone ball bearing and incorporates a 6 mm axle hole diameter for secure fastening to standard castor assemblies. Load capacity specifications indicate a static rating of 100 kg, enabling substantial weight support during stationary conditions, and a dynamic rating of 50 kg at operational speeds up to 3 km/h, making this wheel suitable for both mobile and fixed installations in commercial and industrial environments.
Roll performance
Movement noise
Attrition
Corrosion resistance
Article numbers
Core attributes
Wheel
Special Features
Non-hazardous materials
Complies with RoHS and REACH regulations. Does not contain polycyclic aromatic carbons or chromium (VI).
Tested quality
Tested in our own laboratory for compliance with European standards.
Low-maintenance wheels
Thread guards for unobstructed operation with minimal cleaning effort.
Non-marking movement
Wheels with reduced abrasion and little cleaning requirement.
