Wheel 300 mm
Novatech
Order number:
199838840
EAN:
4031582377125
Product number:
FTP 300x80-Ø35 HL90
- Non-hazardous materials
- Tested quality
- Non-marking movement
The Novatech castor wheel features a robust cast iron body construction with a 300mm diameter and 80mm wide polyurethane casted ...
Details
Custom or high volume? Request a quote now.
CAD files
You can download construction data for this product.
Data sheets

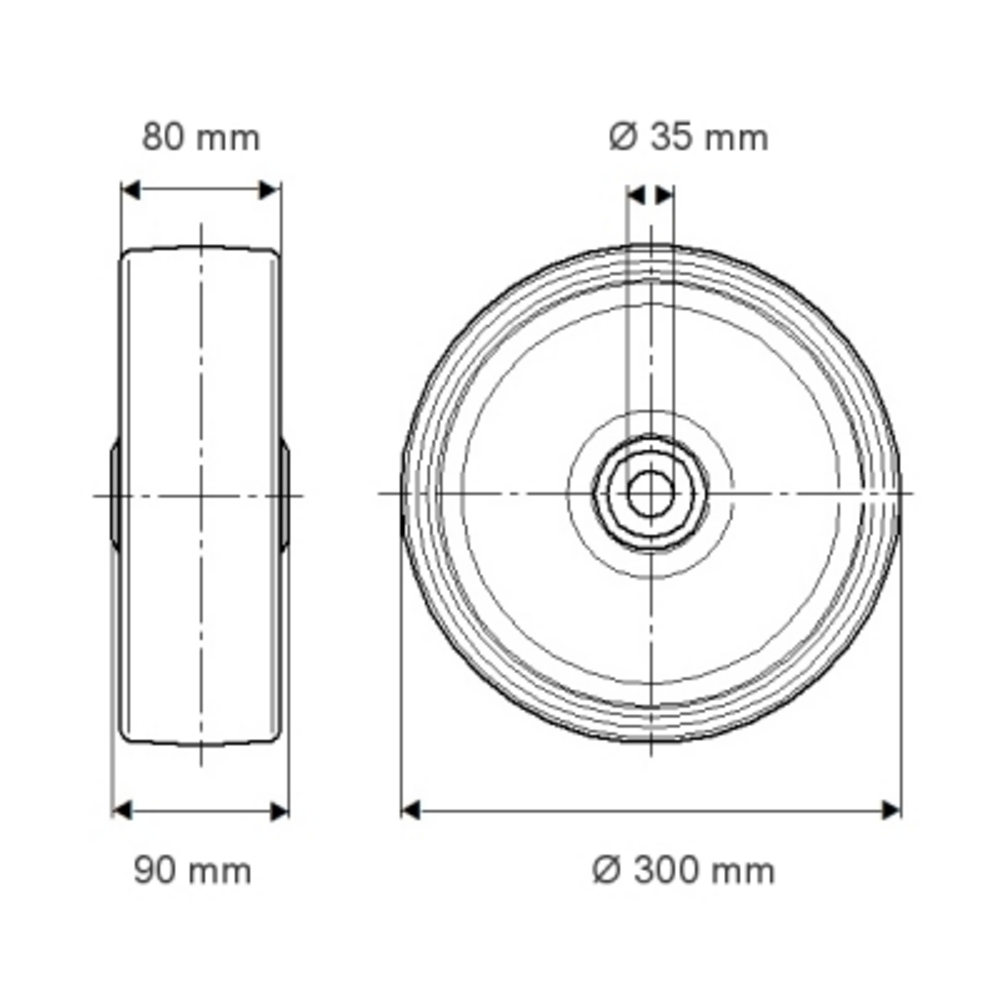

The Novatech castor wheel features a robust cast iron body construction with a 300mm diameter and 80mm wide polyurethane casted tread, incorporating precision ball bearings for smooth operation. The wheel has a 35mm axle hole diameter and 90mm hub length for secure mounting. Load capacity specifications include a static rating of 4000kg, with dynamic capacities of 2400kg at 4km/h and 2000kg at 6km/h, making it suitable for heavy-duty industrial applications requiring reliable performance under substantial loads.
Roll performance
Movement noise
Attrition
Corrosion resistance
Article numbers
Core attributes
Wheel
Special Features
Non-hazardous materials
Complies with RoHS and REACH regulations. Does not contain polycyclic aromatic carbons or chromium (VI).
Tested quality
Tested in our own laboratory for compliance with European standards.
Low-maintenance wheels
Thread guards for unobstructed operation with minimal cleaning effort.
Non-marking movement
Wheels with reduced abrasion and little cleaning requirement.
Ergonomically friendly use
Wheels with optimised roll resistance to lighten the load for the user.
