Wheel 300 mm
Novatech
Order number:
199800996
EAN:
4031582331097
Product number:
FTP 300x80-Ø30 HL92
- Non-hazardous materials
- Tested quality
- Non-marking movement
The Novatech wheel is a precision castor component engineered for heavy-duty industrial applications, featuring a cast iron body...
Details
Custom or high volume? Request a quote now.
CAD files
You can download construction data for this product.
Data sheets

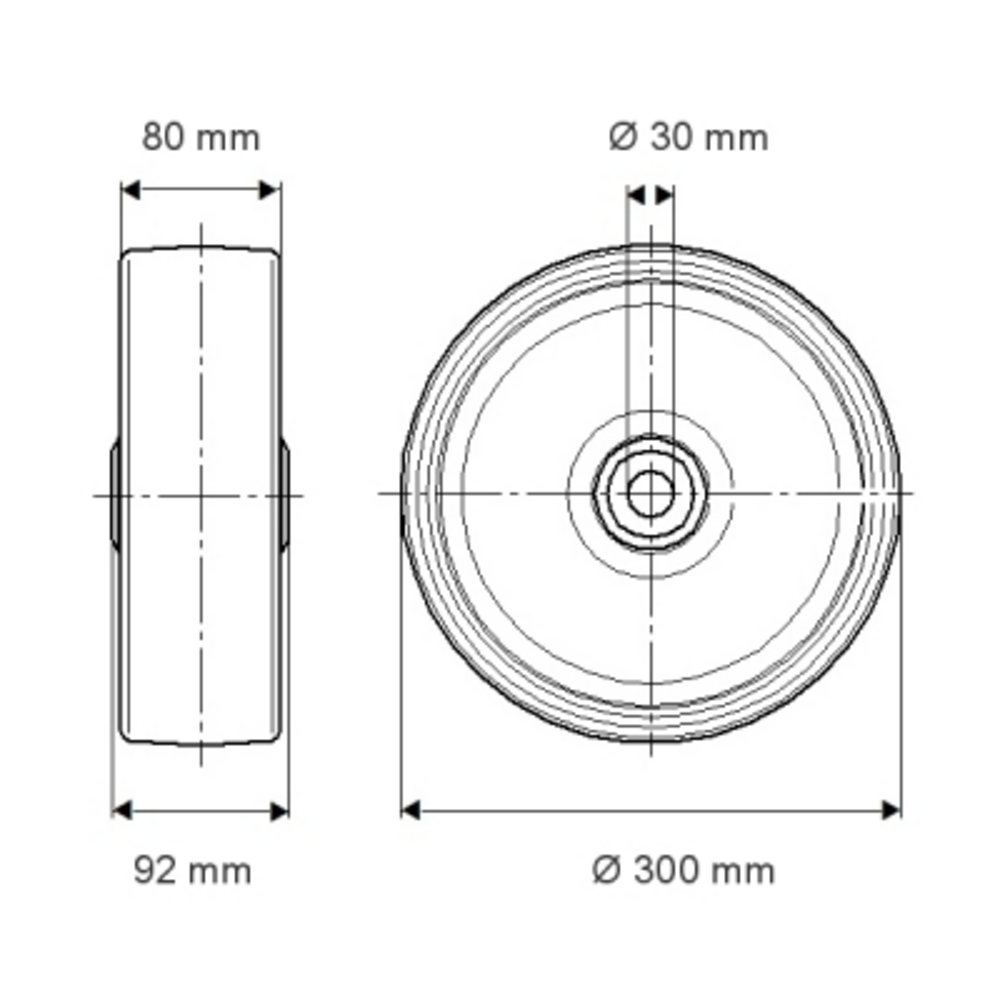

The Novatech wheel is a precision castor component engineered for heavy-duty industrial applications, featuring a cast iron body with a polyurethane, casted tread measuring 80 mm in width. The wheel has an overall diameter of 300 mm and is equipped with a precision ball bearing for smooth rotation. The hub length measures 92 mm, with an axle hole diameter of 30 mm designed for secure mounting. This wheel demonstrates exceptional load-bearing capabilities, supporting a static load capacity of 4000 kg. For dynamic applications, the wheel maintains a load capacity of 2000 kg at speeds up to 6 km/h, or alternatively 2400 kg at reduced speeds of 4 km/h, making it suitable for both high-speed and heavy-load operational scenarios in demanding industrial environments.
Roll performance
Movement noise
Attrition
Corrosion resistance
Article numbers
Core attributes
Wheel
Special Features
Non-hazardous materials
Complies with RoHS and REACH regulations. Does not contain polycyclic aromatic carbons or chromium (VI).
Tested quality
Tested in our own laboratory for compliance with European standards.
Low-maintenance wheels
Thread guards for unobstructed operation with minimal cleaning effort.
Non-marking movement
Wheels with reduced abrasion and little cleaning requirement.
Ergonomically friendly use
Wheels with optimised roll resistance to lighten the load for the user.
