Wheel 200 mm
Maxtech
Order number:
199034873
EAN:
4031582323061
Product number:
UAP 200x50-Ø25 HL60 natural/3004
- Non-hazardous materials
- Tested quality
- Non-marking movement
The Maxtech Wheel is a precision castor wheel engineered for demanding industrial applications, featuring a polyamide body with ...
Details
Custom or high volume? Request a quote now.
CAD files
You can download construction data for this product.

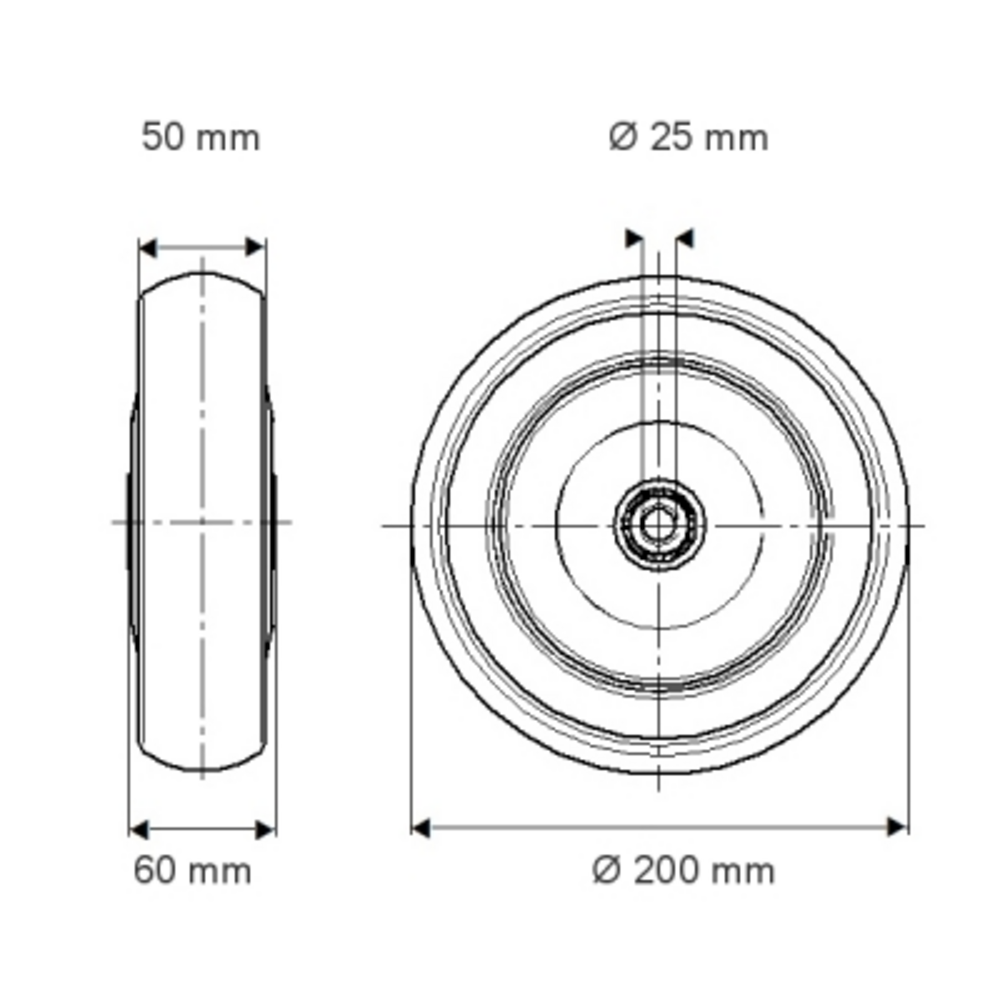

The Maxtech Wheel is a precision castor wheel engineered for demanding industrial applications, featuring a polyamide body with a 200 mm diameter and a 50 mm wide polyurethane injected tread that provides excellent grip and durability. The wheel hub measures 60 mm in length and is equipped with a precision ball bearing mounted on a 25 mm diameter axle hole, ensuring smooth rotation and reliable performance. This wheel demonstrates exceptional load-bearing capabilities, with a static load capacity of 1000 kg, whilst the dynamic load capacity reaches 400 kg at 6 km/h or 500 kg at 4 km/h, making it suitable for both stationary and mobile applications in warehousing, manufacturing, and logistics environments where consistent performance and durability are essential requirements.
Roll performance
Movement noise
Attrition
Corrosion resistance
Article numbers
Core attributes
Wheel
Special Features
Non-hazardous materials
Complies with RoHS and REACH regulations. Does not contain polycyclic aromatic carbons or chromium (VI).
Tested quality
Tested in our own laboratory for compliance with European standards.
Low-maintenance wheels
Thread guards for unobstructed operation with minimal cleaning effort.
Non-marking movement
Wheels with reduced abrasion and little cleaning requirement.
Ergonomically friendly use
Wheels with optimised roll resistance to lighten the load for the user.
