Wheel 200 mm
Ultratech
Order number:
199865047
EAN:
4031582445114
Product number:
ICP 200x50-Ø20 HL60 soft cv
- Non-hazardous materials
- Tested quality
- Non-marking movement
The Ultratech Wheel is a precision-engineered castor wheel designed for demanding industrial applications including airport equi...
Details
Custom or high volume? Request a quote now.

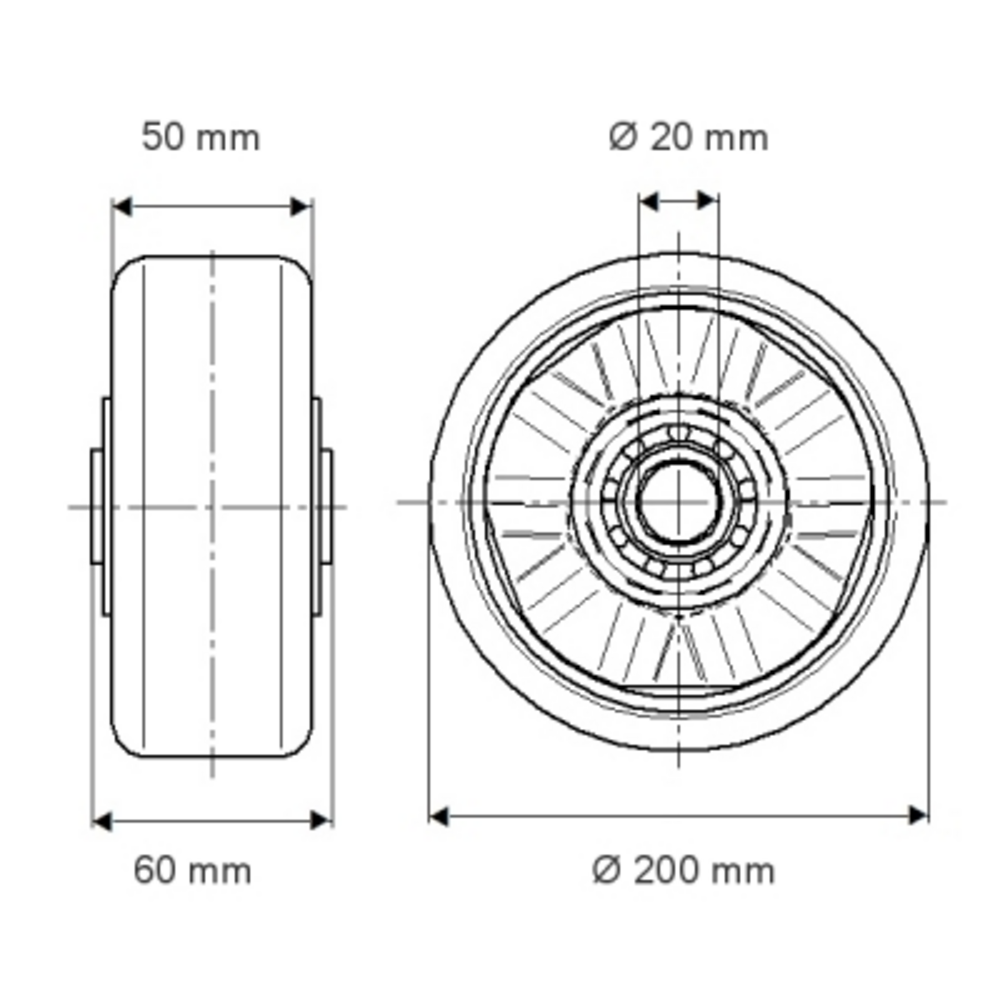

The Ultratech Wheel is a precision-engineered castor wheel designed for demanding industrial applications including airport equipment, AMR systems, automated shuttle systems, automotive OEM, ceramic and glass manufacturers, forklift trucks, production and platform trolleys, and AGV systems. This wheel features a 200 mm diameter with a 50 mm wide tread manufactured from Ultratech Polyurethane, casted for superior durability and performance. The aluminium body is paired with a precision ball bearing to ensure smooth, reliable operation. The hub measures 60 mm in length with a 20 mm axle hole diameter for secure mounting. The wheel delivers exceptional load capacity, supporting a static load of 1600 kg, whilst the dynamic load capacity reaches 640 kg at 6 km/h or 800 kg at 4 km/h, making it suitable for both high-speed and heavy-duty applications across diverse industrial environments.
Roll performance
Movement noise
Attrition
Corrosion resistance
Article numbers
Core attributes
Wheel
Special Features
Non-hazardous materials
Complies with RoHS and REACH regulations. Does not contain polycyclic aromatic carbons or chromium (VI).
Tested quality
Tested in our own laboratory for compliance with European standards.
Non-marking movement
Wheels with reduced abrasion and little cleaning requirement.
Quiet rolling
Soft wheel versions for a quiet working environment.
Low-vibration transport
Extra soft wheels with good shock absorbing properties.
