Wheel 200 mm
Novatech
EAN:
4031582419061
Product number:
FTP200x80-Ø25 HL92
- Non-hazardous materials
- Tested quality
- Non-marking movement
The Novatech wheel is a precision-engineered castor component manufactured from cast iron with a polyurethane, casted tread meas...
Details
Custom or high volume? Request a quote now.
Data sheets
Documents
- Kappa.pdf
- electrostatic_discharge_capacity.pdf
- Solutions_for_mechanical_engineering___workshops.pdf
- Solutions_for_the_entertainment_industry.pdf
- Solutions_for_the_automotive_industry.pdf
- Solutions_for_intralogistic.pdf
- Delta.pdf
- Polyurethane_Wheels_Novatech___Ultratech.pdf
- Product_brochure_Omikron_EN__1_.pdf
- Alpha.pdf

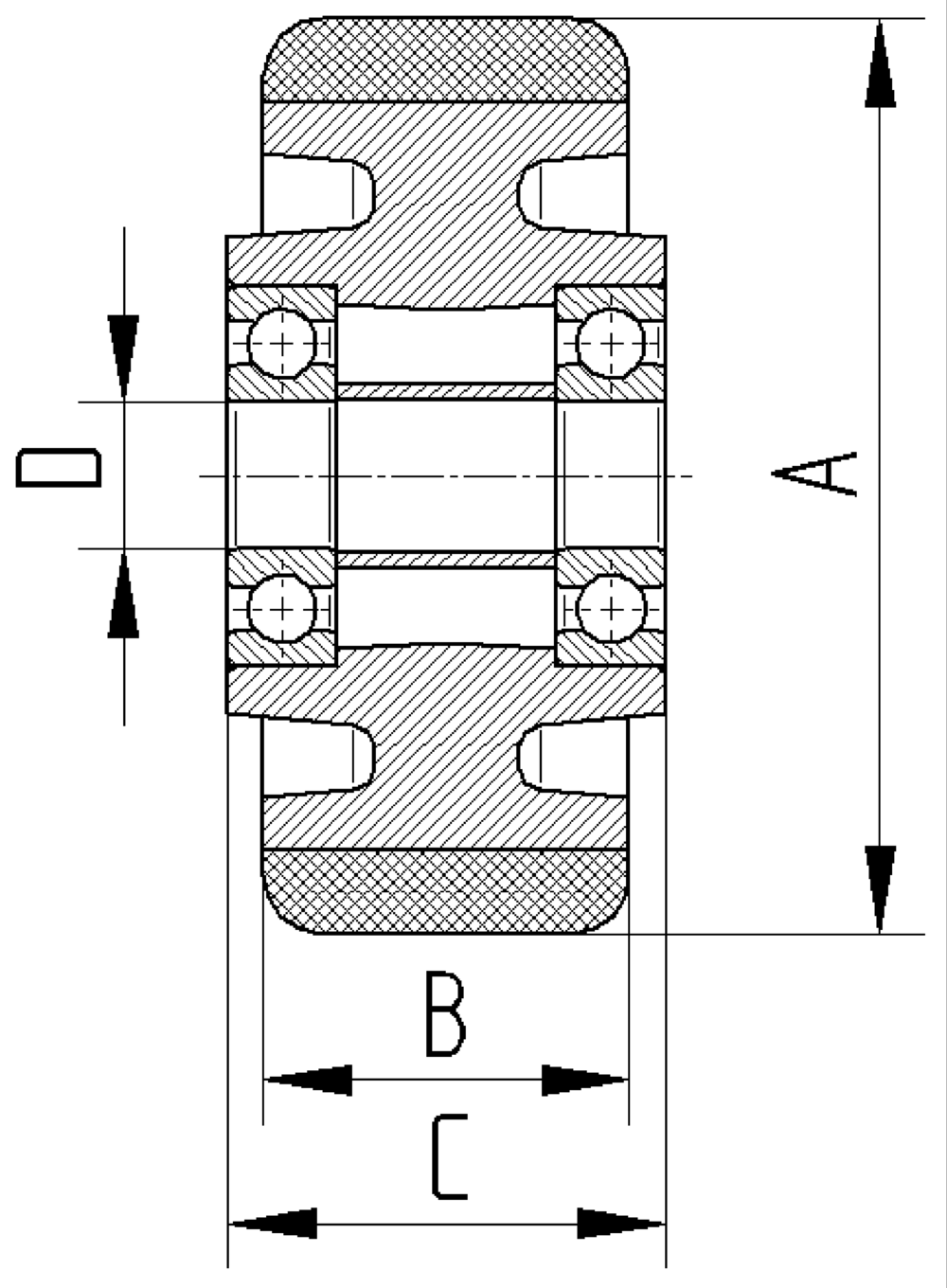

The Novatech wheel is a precision-engineered castor component manufactured from cast iron with a polyurethane, casted tread measuring 80 mm in width. This wheel features a diameter of 200 mm and is designed with a hub length of 92 mm, accommodating an axle hole diameter of 25 mm. The wheel is equipped with a precision ball bearing to ensure smooth operation across a diverse range of applications including airport equipment, AMR systems, automated shuttle systems, automotive OEM, ceramic and glass manufacturers, container construction, fire fighting technology, forklift trucks, AGV systems, machine construction, post logistic systems, production and platform trolleys, and transport equipment. The static load capacity reaches 3360 kg, whilst the dynamic load capacity is rated at 1400 kg at 6 km/h or 1680 kg at 4 km/h, providing reliable performance in demanding industrial environments.
Roll performance
Movement noise
Attrition
Corrosion resistance
Article numbers
Core attributes
Wheel
Special Features
Non-hazardous materials
Complies with RoHS and REACH regulations. Does not contain polycyclic aromatic carbons or chromium (VI).
Tested quality
Tested in our own laboratory for compliance with European standards.
Low-maintenance wheels
Thread guards for unobstructed operation with minimal cleaning effort.
Non-marking movement
Wheels with reduced abrasion and little cleaning requirement.
Ergonomically friendly use
Wheels with optimised roll resistance to lighten the load for the user.
