Wheel 160 mm
Supratech
EAN:
4031582457551
Product number:
PJP160x40-Ø12,5
- Non-hazardous materials
- Tested quality
- Non-marking movement
The Supratech wheel is a precision castor component engineered for demanding industrial and commercial applications including ro...
Details
Custom or high volume? Request a quote now.

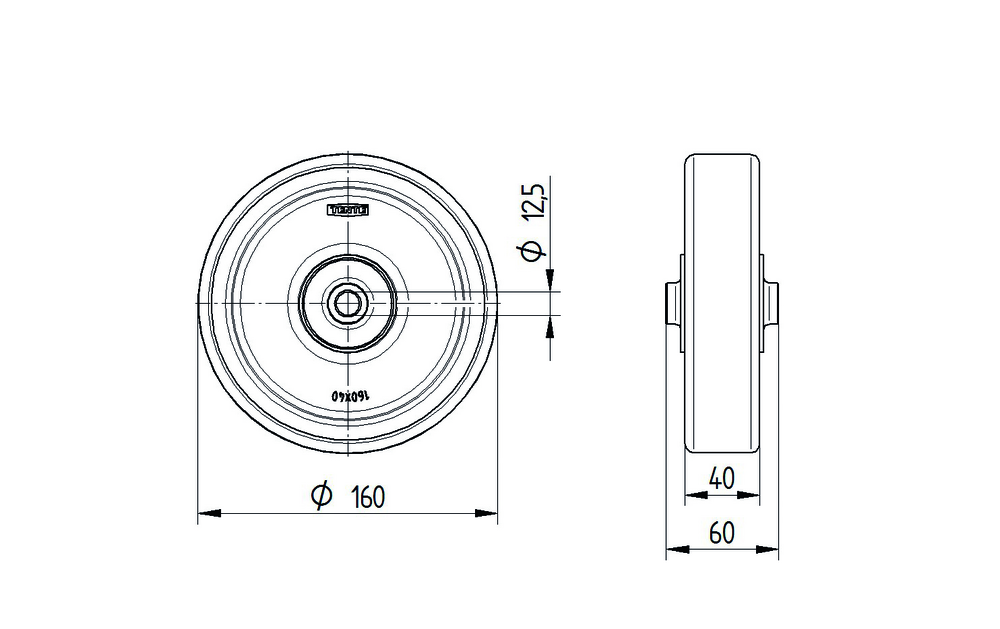

The Supratech wheel is a precision castor component engineered for demanding industrial and commercial applications including roll cages, shopping trolleys, store fixtures and display systems, tool cabinets, work benches, and transport equipment. This wheel features a polypropylene body with a thermoplastic rubber tread measuring 40 mm in width, delivering optimal grip and durability across varied surfaces. The wheel diameter is 160 mm, with a hub length of 60 mm and an axle hole diameter of 12.5 mm, ensuring compatibility with standard castor assemblies. Equipped with a precision ball bearing for smooth rotation and extended operational life, the Supratech wheel is rated for a static load capacity of 320 kg and a dynamic load capacity of 160 kg at speeds up to 4 km/h, making it suitable for both stationary and mobile applications requiring reliable performance and consistent load support.
Roll performance
Movement noise
Attrition
Corrosion resistance
Article numbers
Core attributes
Wheel
Special Features
Non-hazardous materials
Complies with RoHS and REACH regulations. Does not contain polycyclic aromatic carbons or chromium (VI).
Tested quality
Tested in our own laboratory for compliance with European standards.
Low-maintenance wheels
Thread guards for unobstructed operation with minimal cleaning effort.
Non-marking movement
Wheels with reduced abrasion and little cleaning requirement.
