Wheel 160 mm
Elastech
EAN:
4031582319811
Product number:
IFP160x50-Ø20
- Non-hazardous materials
- Tested quality
- Non-marking movement
The Elastech wheel is a precision castor wheel engineered for demanding industrial applications, featuring a 160 mm diameter wit...
Details
Custom or high volume? Request a quote now.
CAD files
You can download construction data for this product.
Data sheets

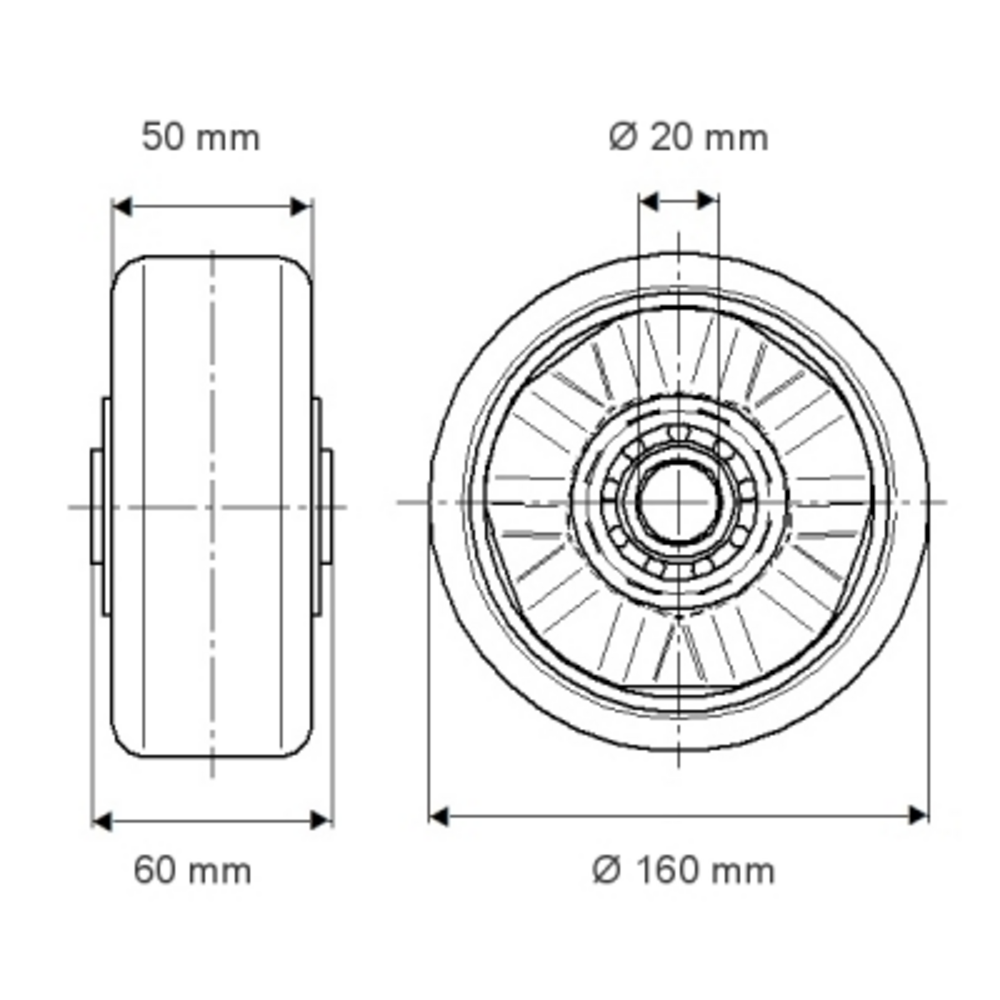

The Elastech wheel is a precision castor wheel engineered for demanding industrial applications, featuring a 160 mm diameter with a 50 mm wide elastic tire constructed from non-marking, vulcanized material that ensures optimal grip and floor protection. The wheel incorporates an aluminium body coupled with a precision ball bearing for smooth, reliable rotation, whilst the hub measures 60 mm in length and accommodates a 20 mm axle hole diameter for secure mounting. This wheel delivers exceptional load-bearing performance with a static load capacity of 700 kg, complemented by dynamic load ratings of 280 kg at 6 km/h and 350 kg at 4 km/h, making it ideally suited for diverse applications including AMR systems, automated shuttle systems, automotive OEM requirements, catering carts, container construction, fire fighting technology, machine construction, post logistic systems, production trolleys, professional cleaning carts, roll cages, scaffolding, tool cabinets, transport equipment, and work benches.
Roll performance
Movement noise
Attrition
Corrosion resistance
Article numbers
Core attributes
Wheel
Special Features
Non-hazardous materials
Complies with RoHS and REACH regulations. Does not contain polycyclic aromatic carbons or chromium (VI).
Tested quality
Tested in our own laboratory for compliance with European standards.
Non-marking movement
Wheels with reduced abrasion and little cleaning requirement.
Quiet rolling
Soft wheel versions for a quiet working environment.
Low-vibration transport
Extra soft wheels with good shock absorbing properties.
