Wheel 125 mm
Maxtech
Order number:
199034120
EAN:
4031582323177
Product number:
UAR 125x38-Ø12 HL44 natural/3004
- Non-hazardous materials
- Tested quality
- Non-marking movement
The Maxtech wheel is a robust castor component engineered with a polyamide body and polyurethane injected tread, featuring a dia...
Details
Custom or high volume? Request a quote now.
CAD files
You can download construction data for this product.

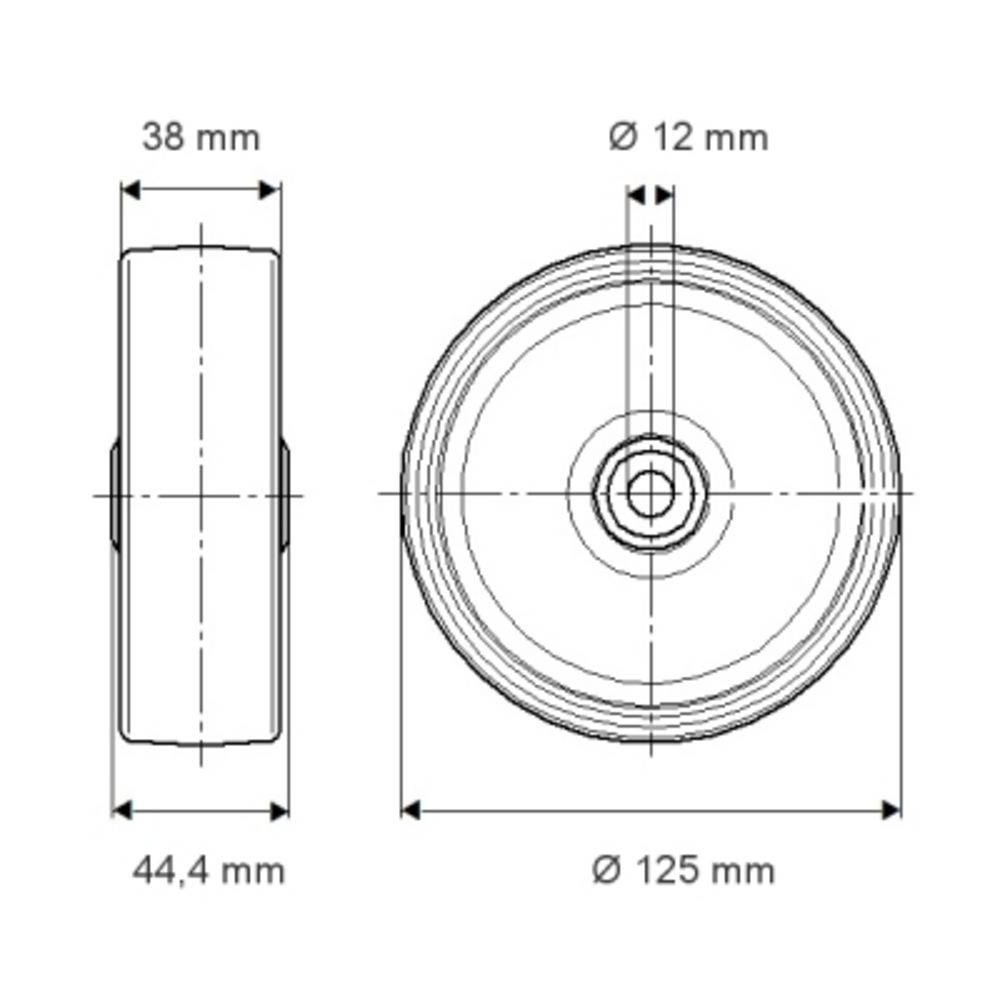

The Maxtech wheel is a robust castor component engineered with a polyamide body and polyurethane injected tread, featuring a diameter of 125 mm and a tread width of 38 mm. The hub measures 44 mm in length, whilst the axle incorporates a 12 mm hole diameter for secure mounting. This wheel is equipped with a roller bearing for smooth operation and reliable performance. The load capacity specifications indicate a static load rating of 600 kg, with a dynamic load capacity of 300 kg at speeds up to 4 km/h, making it suitable for demanding industrial and commercial castor applications requiring substantial weight support and durability.
Roll performance
Movement noise
Attrition
Corrosion resistance
Article numbers
Core attributes
Wheel
Special Features
Non-hazardous materials
Complies with RoHS and REACH regulations. Does not contain polycyclic aromatic carbons or chromium (VI).
Tested quality
Tested in our own laboratory for compliance with European standards.
Non-marking movement
Wheels with reduced abrasion and little cleaning requirement.
