Wheel 125 mm
Maxtech
Order number:
199007012
EAN:
4031582323146
Product number:
UAR 125x32-Ø12 HL44,4
- Non-hazardous materials
- Tested quality
- Non-marking movement
The Maxtech wheel is a polyamide-bodied castor wheel featuring a 125 mm diameter with a 32 mm wide polyurethane injected tread, ...
Details
Custom or high volume? Request a quote now.
Data sheets

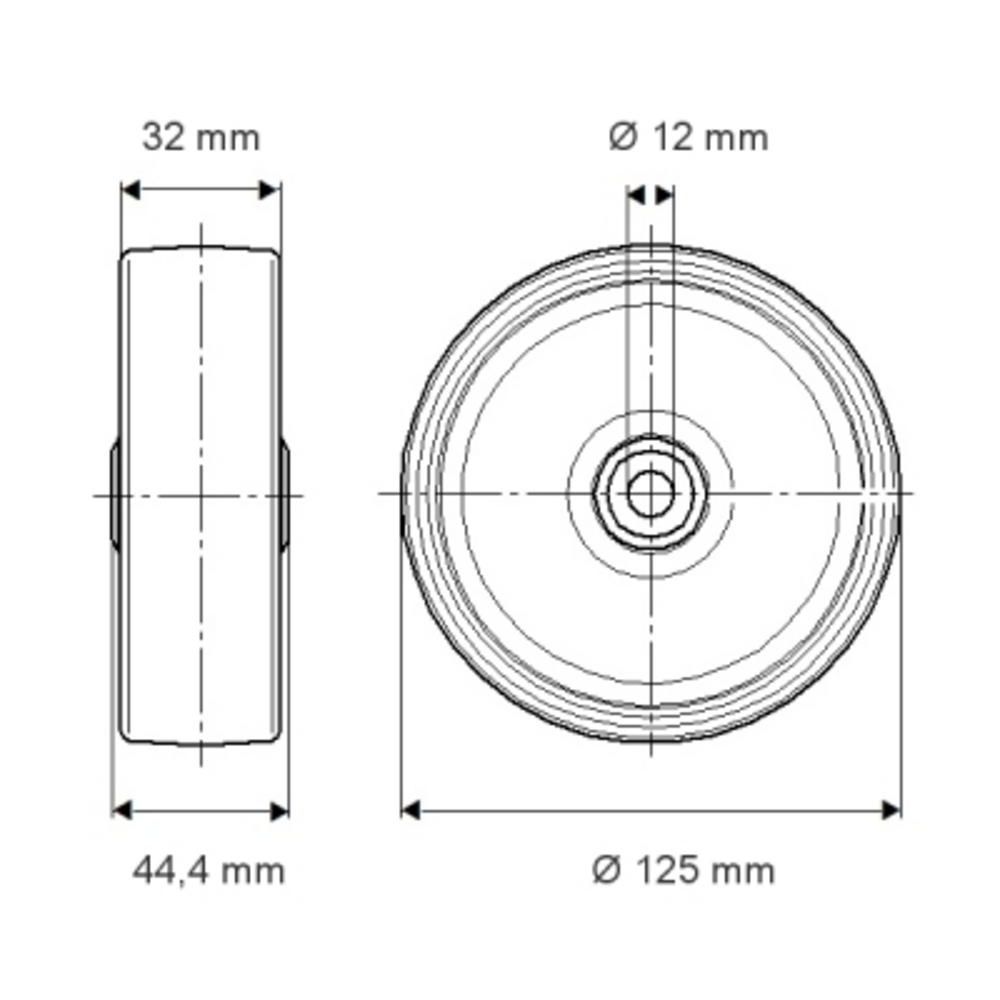

The Maxtech wheel is a polyamide-bodied castor wheel featuring a 125 mm diameter with a 32 mm wide polyurethane injected tread, designed for reliable performance in demanding applications. The wheel incorporates a roller bearing for smooth operation and is equipped with a 12 mm axle hole diameter, whilst the hub extends 44.4 mm in length to ensure stable mounting and load distribution. This wheel demonstrates substantial load-bearing capabilities, with a static load capacity of 400 kg and a dynamic load capacity of 200 kg at speeds up to 4 km/h, making it suitable for both stationary and mobile castor applications requiring robust performance and durability.
Roll performance
Movement noise
Attrition
Corrosion resistance
Article numbers
Core attributes
Wheel
Special Features
Non-hazardous materials
Complies with RoHS and REACH regulations. Does not contain polycyclic aromatic carbons or chromium (VI).
Tested quality
Tested in our own laboratory for compliance with European standards.
Non-marking movement
Wheels with reduced abrasion and little cleaning requirement.
