Wheel 100 mm
Supratech
EAN:
4031582419306
Product number:
PJR100x32-Ø12 HL44,4
- Non-hazardous materials
- Tested quality
- Non-marking movement
The Supratech wheel is a precision castor component engineered for demanding industrial and commercial applications including ro...
Details
Custom or high volume? Request a quote now.

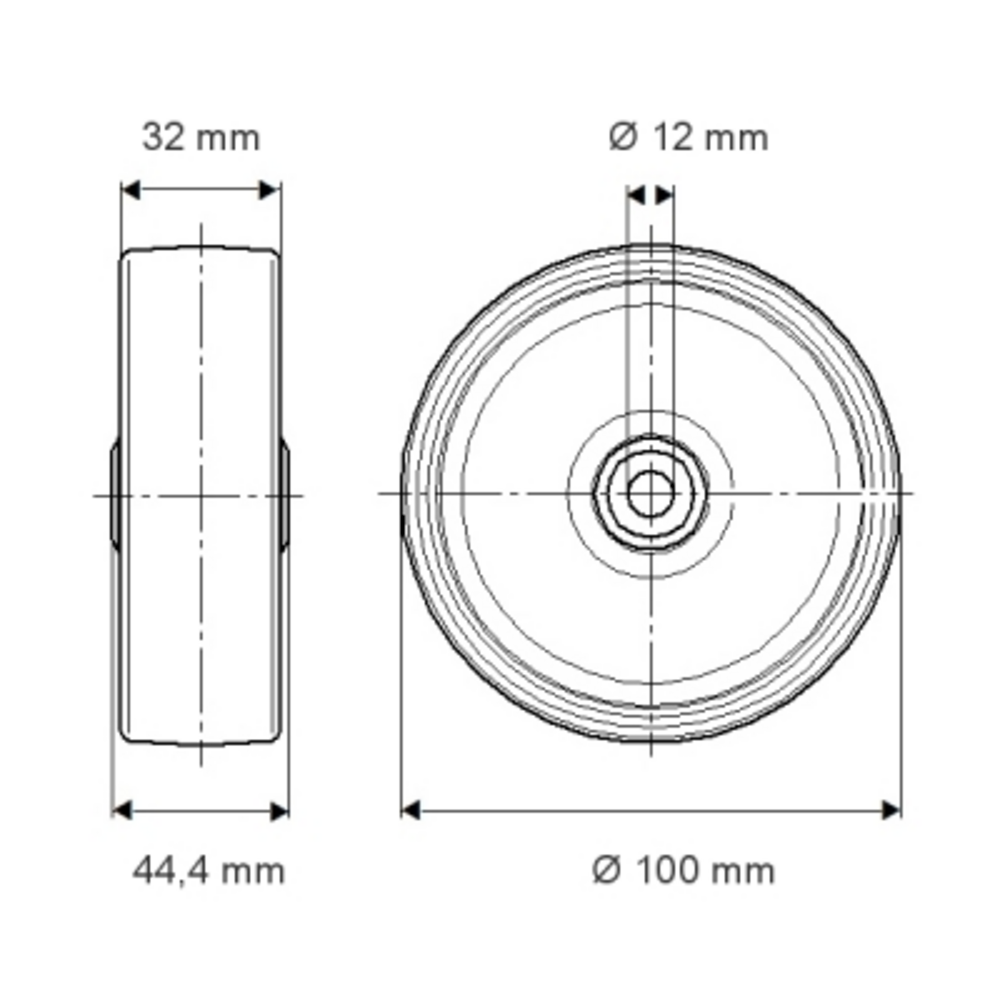

The Supratech wheel is a precision castor component engineered for demanding industrial and commercial applications including roll cages, shopping trolleys, store fixtures and display systems, tool cabinets, work benches, and transport equipment. This wheel features a polypropylene body with a thermoplastic rubber tread measuring 32 mm in width, delivering optimal grip and durability across varied floor surfaces. The wheel diameter is 100 mm, with a hub length of 44.4 mm and an axle hole diameter of 12 mm, ensuring compatibility with standard castor mounting systems. Equipped with a roller bearing for smooth rotation and reduced friction, the Supratech wheel is rated for a static load capacity of 160 kg and a dynamic load capacity of 80 kg at speeds up to 3 km/h, making it suitable for both stationary and mobile applications requiring reliable performance and extended service life.
Roll performance
Movement noise
Attrition
Corrosion resistance
Article numbers
Core attributes
Wheel
Special Features
Non-hazardous materials
Complies with RoHS and REACH regulations. Does not contain polycyclic aromatic carbons or chromium (VI).
Tested quality
Tested in our own laboratory for compliance with European standards.
Non-marking movement
Wheels with reduced abrasion and little cleaning requirement.
