Wheel 100 mm
Novatech
Order number:
199830926
EAN:
4031582324525
Product number:
ITP 100x40-Ø15 HL40
- Non-hazardous materials
- Tested quality
- Non-marking movement
The Novatech wheel is a precision castor component engineered for demanding industrial applications, featuring a 100 mm diameter...
Details
Custom or high volume? Request a quote now.
Data sheets

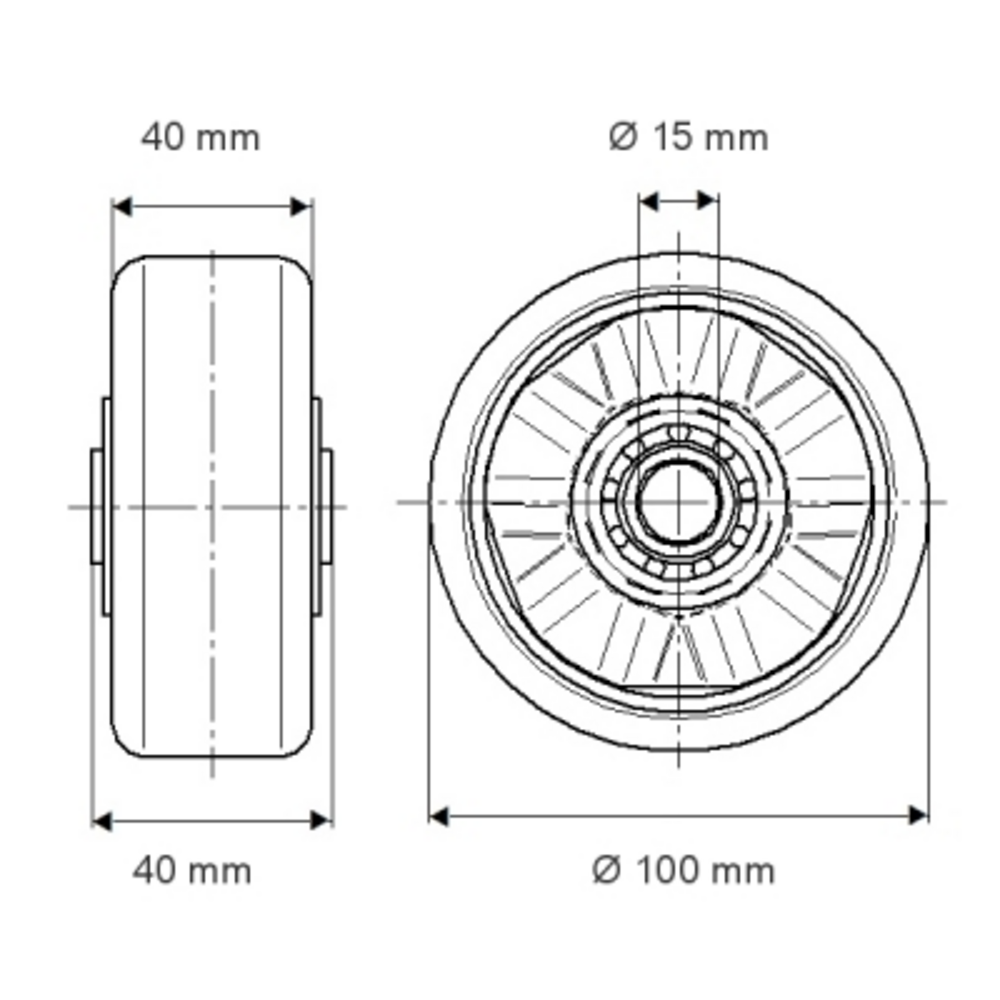

The Novatech wheel is a precision castor component engineered for demanding industrial applications, featuring a 100 mm diameter with a 40 mm wide polyurethane casted tread that ensures excellent grip and durability. The wheel is constructed with an aluminium body and incorporates a precision ball bearing for smooth, reliable rotation, whilst the hub measures 40 mm in length and accommodates a 15 mm diameter axle hole for secure mounting. This wheel delivers exceptional load-bearing performance with a static load capacity of 600 kg, and dynamic load capacities of 240 kg at 6 km/h or 300 kg at 4 km/h, making it suitable for both light and heavy-duty material handling, transport, and positioning applications where consistent performance and longevity are essential requirements.
Roll performance
Movement noise
Attrition
Corrosion resistance
Article numbers
Core attributes
Wheel
Special Features
Non-hazardous materials
Complies with RoHS and REACH regulations. Does not contain polycyclic aromatic carbons or chromium (VI).
Tested quality
Tested in our own laboratory for compliance with European standards.
Non-marking movement
Wheels with reduced abrasion and little cleaning requirement.
Ergonomically friendly use
Wheels with optimised roll resistance to lighten the load for the user.
