Wheel 100 mm
Novatech
Order number:
199845115
EAN:
4031582365405
Product number:
ITP 100x40-Ø12 HL49 cv incl. A-set
- Non-hazardous materials
- Tested quality
- Non-marking movement
The Novatech wheel is a precision castor component engineered for demanding industrial applications, featuring a 100 mm diameter...
Details
Custom or high volume? Request a quote now.
CAD files
You can download construction data for this product.

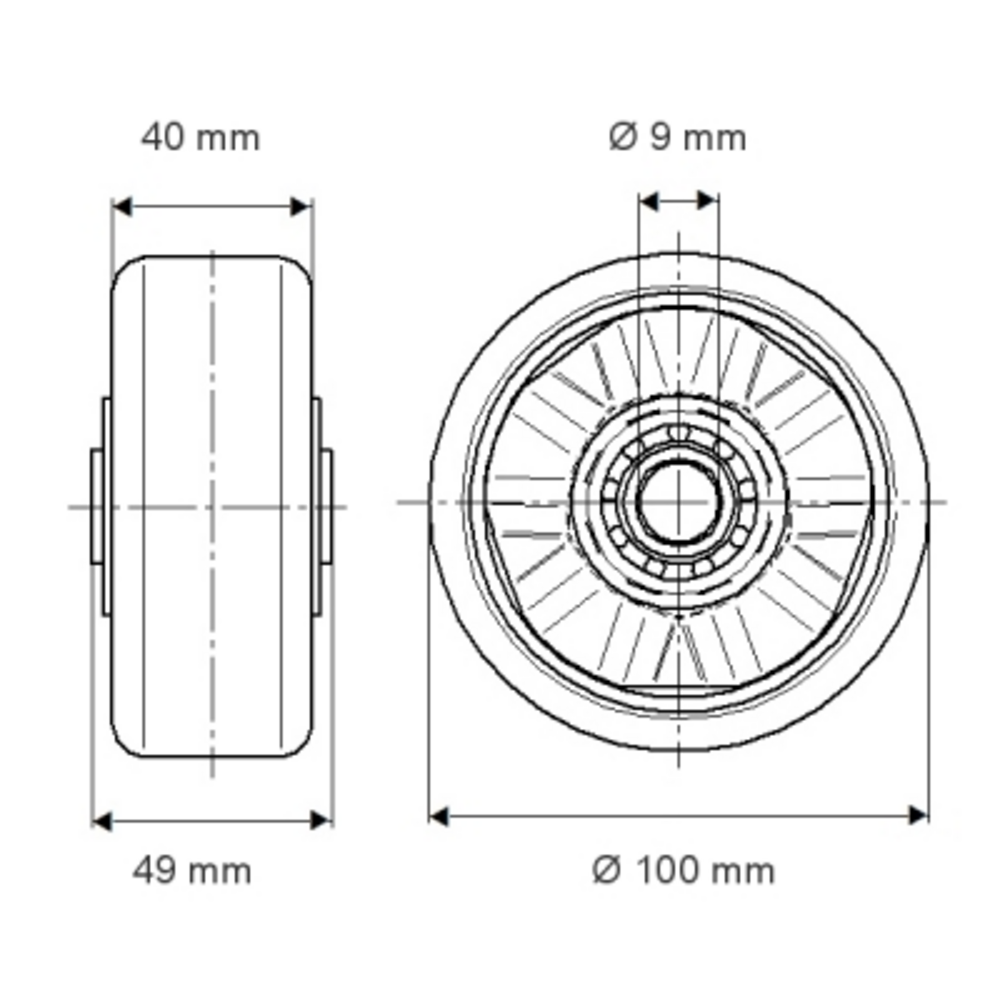

The Novatech wheel is a precision castor component engineered for demanding industrial applications, featuring a 100 mm diameter with a 40 mm wide polyurethane casted tread that delivers excellent durability and floor protection. The aluminium body is mounted on a precision ball bearing and incorporates a 49 mm hub length with a 9 mm axle hole diameter for secure installation. This wheel demonstrates exceptional load-bearing capabilities, supporting a static load capacity of 600 kg, whilst maintaining dynamic load ratings of 240 kg at 6 km/h and 300 kg at 4 km/h, making it suitable for both stationary and mobile castor applications across various industrial environments.
Roll performance
Movement noise
Attrition
Corrosion resistance
Article numbers
Core attributes
Wheel
Special Features
Non-hazardous materials
Complies with RoHS and REACH regulations. Does not contain polycyclic aromatic carbons or chromium (VI).
Tested quality
Tested in our own laboratory for compliance with European standards.
Non-marking movement
Wheels with reduced abrasion and little cleaning requirement.
Ergonomically friendly use
Wheels with optimised roll resistance to lighten the load for the user.
