Turtle castor 80 mm
Radiata
EAN:
4031582423471
Product number:
994TETP080P64
- Non-hazardous materials
- Tested quality
- Uninterrupted use

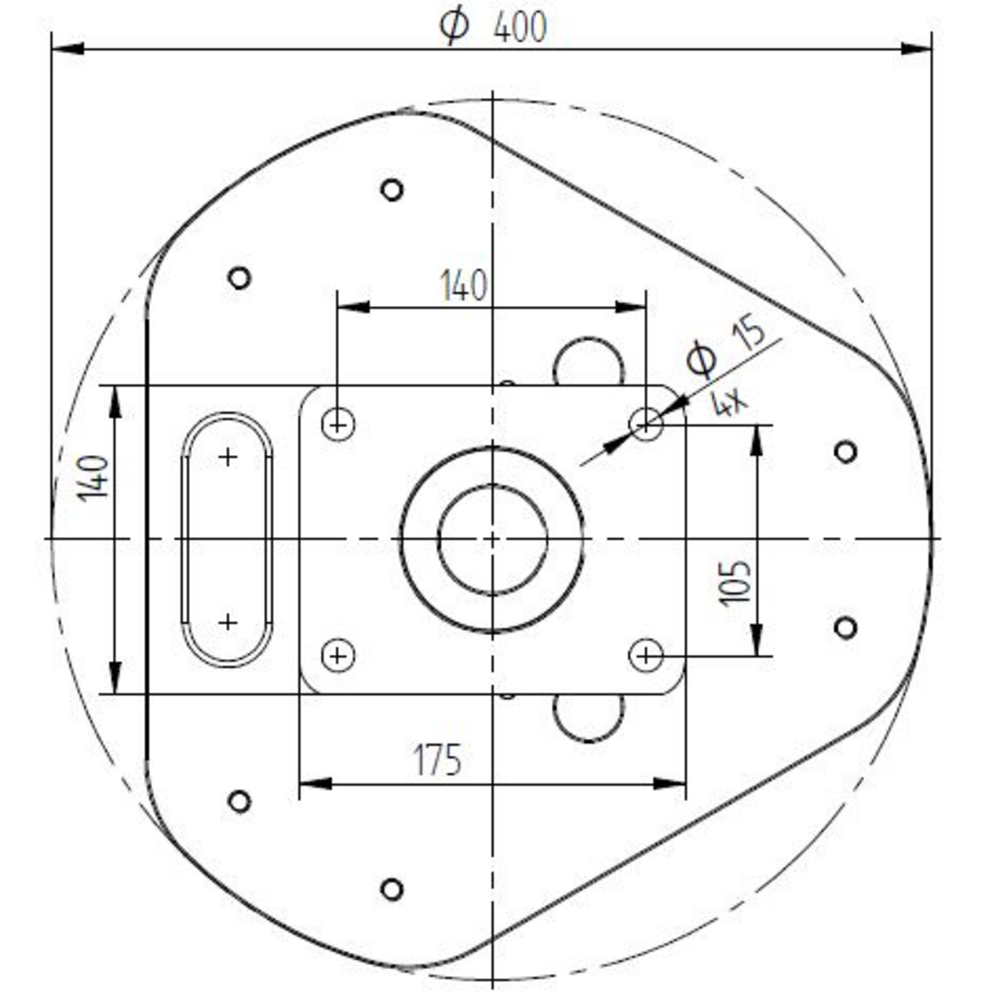

The Radiata turtle castor features a large rectangular plate fitting designed for secure mounting in demanding industrial applic...
Details
Custom or high volume? Request a quote now.
Data sheets

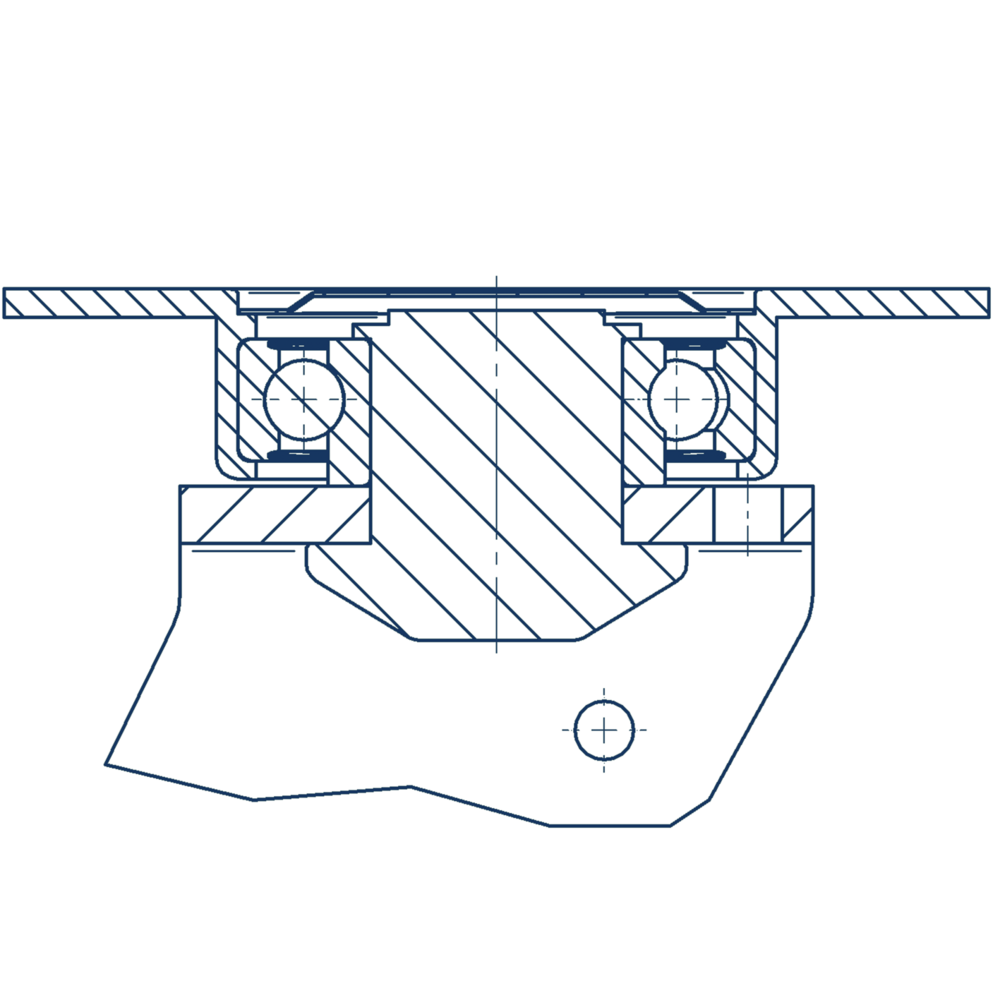

The Radiata turtle castor features a large rectangular plate fitting designed for secure mounting in demanding industrial applications. The housing is constructed from iron forged, heavy material and incorporates a precision ball bearing swivel mechanism to ensure smooth directional changes and long-lasting performance. The wheel assembly consists of a steel, iron body fitted with a casted polyurethane tread that provides excellent floor protection and quiet operation, whilst the precision ball bearing within the wheel guarantees effortless rolling motion. With an 80mm wheel diameter and an overall height of 166mm, this castor offers compact yet robust construction. The dynamic load capacity reaches 1500kg at speeds up to 3km/h, making it ideally suited for AMR systems and other automated material handling equipment where reliability and precision are essential requirements.
Roll performance
Movement noise
Attrition
Corrosion resistance
Article numbers
Core attributes
Fitting
Housing
Wheel
Special Features
Non-hazardous materials
Complies with RoHS and REACH regulations. Does not contain polycyclic aromatic carbons or chromium (VI).
Tested quality
Tested in our own laboratory for compliance with European standards.
Solid housing
Made of pressed steel, zinc plated.
Resource-conserving part replacement
Threaded axles allow effortless wheel change.
Uninterrupted use
Swivel bearing with dust ring for continuous, uninterrupted movement.
Solid construction
Solid steel plate for maximum load capacity.
Low-maintenance wheels
Thread guards for unobstructed operation with minimal cleaning effort.
Non-marking movement
Wheels with reduced abrasion and little cleaning requirement.
Ergonomically friendly use
Wheels with optimised roll resistance to lighten the load for the user.
Skip product gallery
Accessories
Wheel 80 mm
Novatech
ETP 080x40-Ø20 HL40
The Novatech wheel features a steel, iron body construction with an 80 mm diameter and 40 mm tread width made from casted polyurethane, incorporating a precision ball bearing system with a 20 mm axle hole diameter and 40 mm hub length. This wheel delivers exceptional load performance with a static load capacity of 1000 kg and dynamic load capacities of 500 kg at 4 km/h and 400 kg at 6 km/h, making it suitable for demanding industrial castor applications requiring reliable performance under varying operational speeds and loads.
80
mm
Heavy Duty | 500 - 1.500 kg
80
mm
Heavy Duty | 500 - 1.500 kg
