Swivel castor 75 mm

Agila twin

Order number: 990004271

EAN: 4031582302714

Product number: 2970PJO075P50 offset-28 axle-M6

Non-hazardous materials
Tested quality
Solid housing

The Agila twin swivel castor features a rectangular plate fitting for secure mounting to equipment bases. The housing is constru... Details

Features

75 mm
102 mm
100.0000 kg

Wheel

Wheel Diameter

Housing Color

Housing

Fitting

Custom or high volume? Request a quote now.

CAD files

Data sheets

ds_TI_990004271_2970PJO075P50_offset_28_axle_M6__en_GB.pdf

Documents

Agila_twin.pdf

The Agila twin swivel castor features a rectangular plate fitting for secure mounting to equipment bases. The housing is constructed from medium steel sheet and incorporates two ball races for the swivel bearing mechanism, ensuring smooth directional changes and enhanced durability under operational loads. The wheel comprises a polypropylene body with thermoplastic rubber tread material, providing excellent grip and floor protection, whilst utilising a plain bearing system for reliable rotation. With a wheel diameter of 75 mm, the castor has an overall height of 102 mm, making it suitable for compact installations. Load specifications include a dynamic capacity of 100 kg at speeds up to 3 km/h and a static load capacity of 200 kg. This castor is specifically designed for applications including care beds, catering carts and meal delivery systems, inflight trolleys, and store fixtures and display units.

Roll performance

Movement noise

Attrition

Corrosion resistance

Article numbers

Article Number

2970PJO075P50 offset-28 axle-M6

EAN

4031582302714

S4 Material Number

990004271

Core attributes

Type

Swivel castor

Overall width

71 mm

Load capacity at 3 km/h

100 kg

Load capacity Static

200 kg

Overall height

102 mm

Temperature range (Maximum)

60 °C

Temperature range (Minimum)

-20 °C

Overall weight

0.55 kg

Product name

Agila twin

Standard

EN12530 - Devices Castors

Electric conductive

Stainless

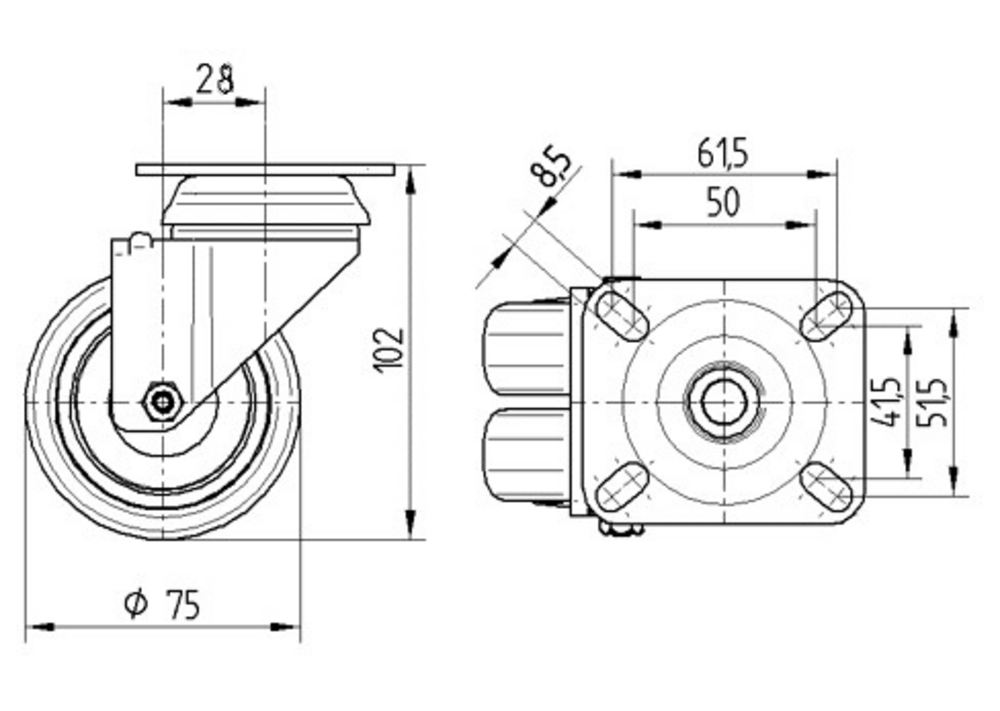

Fitting

Fitting type

Rectangular plate

Plate hole diameter

8.5 mm

Plate hole length (Maximum)

51.5 mm

Plate hole length (Minimum)

46.5 mm

Plate hole width (Maximum)

61.5 mm

Plate hole width (Minimum)

56 mm

Plate length

77 mm

Plate width

67 mm

Housing

Colour

Blue passivated

Fork shape

Twin wheel housing

Material fork

Steel sheet, medium

Swivel bearing

Two ball races

Dome diameter

65 mm

Swivel interference

137.8 mm

Offset

28 mm

Swivel radius

68.9 mm

Wheel

Hardness of tread (A)

87 Shore A

Body material

Polypropylene

Tread material

Thermoplastic rubber

Tread width

25 mm

Diameter

75 mm

Body width

25 mm

Threadguards

Without threadguard

Bearing

Plain bearing

Wheel color

Silver grey (RAL7001)

Special Features

Non-hazardous materials

Complies with RoHS and REACH regulations. Does not contain polycyclic aromatic carbons or chromium (VI).

Tested quality

Tested in our own laboratory for compliance with European standards.

Solid housing

Made of pressed steel, zinc plated.

Non-marking movement

Wheels with reduced abrasion and little cleaning requirement.

Easy steering

Double ball bearing swivel head.

Optimised manoeuvrability

Twin wheel castor with high manoeuvrability due to differential effect.

Protect floors with load distribution

Two wheels distribute the load and minimise floor impressions.
