Swivel castor 75 mm

Agila twin

Order number: 990004821

EAN: 4031582302677

Product number: 2970DIK075P50 offset-31,4 axle-M8

Non-hazardous materials
Tested quality
Solid housing

The Agila twin swivel castor features a rectangular plate fitting for secure mounting to equipment bases. The housing is constru... Details

Features

75 mm
102 mm
100.0000 kg

Wheel

Wheel Diameter

Housing Color

Housing

Fitting

Custom or high volume? Request a quote now.

CAD files

Data sheets

ds_TI_990004821_2970DIK075P50_offset_31_4_axle_M8__en_GB.pdf

Documents

Agila_twin.pdf

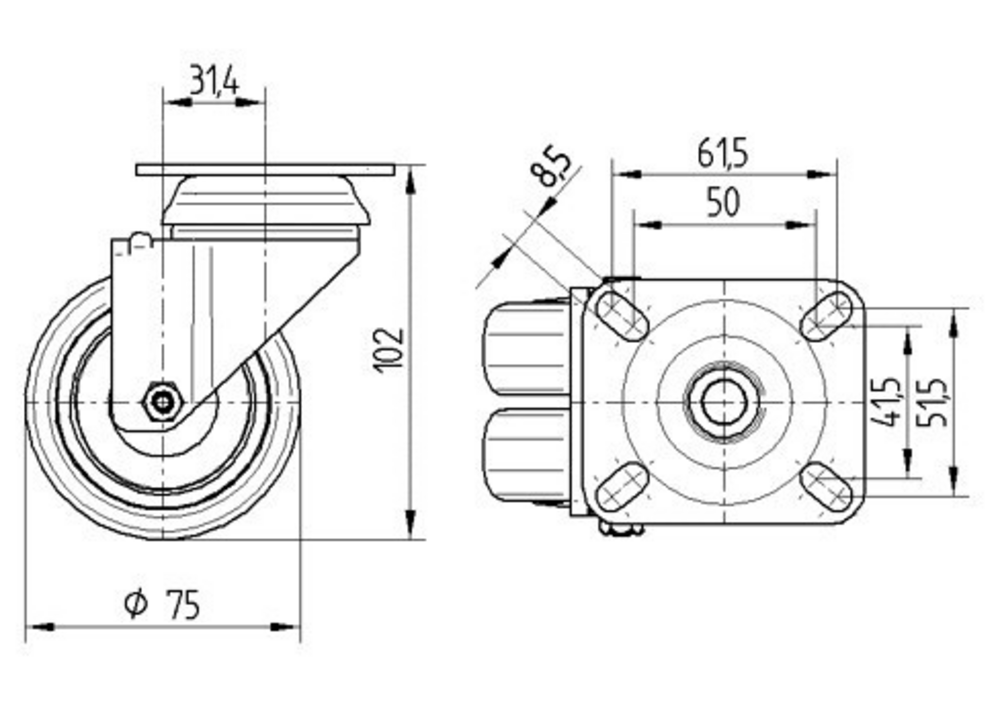

The Agila twin swivel castor features a rectangular plate fitting for secure mounting to equipment bases. The housing is constructed from medium steel sheet and incorporates two ball races for the swivel bearing mechanism, ensuring smooth directional movement under load. The wheel comprises a sheet steel body with solid rubber, non-marking tread material that provides excellent floor protection and quiet operation, whilst the cone ball bearing system delivers reliable rolling performance. With a wheel diameter of 75 mm, the castor has an overall height of 102 mm for compact installation requirements. Load specifications include a dynamic capacity of 100 kg at speeds up to 3 km/h and a static load rating of 200 kg, making it suitable for care beds, catering carts and meal delivery systems, inflight trolleys, and store fixtures and display applications.

Roll performance

Movement noise

Attrition

Corrosion resistance

Article numbers

Article Number

2970DIK075P50 offset-31,4 axle-M8

EAN

4031582302677

S4 Material Number

990004821

Core attributes

Type

Swivel castor

Overall width

71 mm

Load capacity at 3 km/h

100 kg

Load capacity Static

200 kg

Overall height

102 mm

Temperature range (Maximum)

85 °C

Temperature range (Minimum)

-20 °C

Overall weight

0.87 kg

Product name

Agila twin

Standard

EN12530 - Devices Castors

Electric conductive

Stainless

Fitting

Fitting type

Rectangular plate

Plate hole diameter

8.5 mm

Plate hole length (Maximum)

51.5 mm

Plate hole length (Minimum)

46.5 mm

Plate hole width (Maximum)

61.5 mm

Plate hole width (Minimum)

56 mm

Plate length

77 mm

Plate width

67 mm

Housing

Colour

Blue passivated

Fork shape

Twin wheel housing

Material fork

Steel sheet, medium

Swivel bearing

Two ball races

Dome diameter

65 mm

Swivel interference

145 mm

Offset

31.4 mm

Swivel radius

72.5 mm

Wheel

Hardness of tread (A)

80 Shore A

Body material

Sheet Steel

Tread material

Solid rubber, non-marking

Tread width

25 mm

Diameter

75 mm

Body width

25 mm

Threadguards

With threadguard

Bearing

Cone ball bearing

Wheel color

Blue passivated

Special Features

Non-hazardous materials

Complies with RoHS and REACH regulations. Does not contain polycyclic aromatic carbons or chromium (VI).

Tested quality

Tested in our own laboratory for compliance with European standards.

Solid housing

Made of pressed steel, zinc plated.

Low-maintenance wheels

Thread guards for unobstructed operation with minimal cleaning effort.

Non-marking movement

Wheels with reduced abrasion and little cleaning requirement.

Easy steering

Double ball bearing swivel head.

Optimised manoeuvrability

Twin wheel castor with high manoeuvrability due to differential effect.

Protect floors with load distribution

Two wheels distribute the load and minimise floor impressions.
