Swivel castor 400 mm

Omikron twin
Order number: 990801591
EAN: 4031582316841
Product number: 9950FTP400P68
  • Non-hazardous materials
  • Tested quality
  • Strong construction
The Omikron twin swivel castor features an extra large rectangular heavy-duty plate fitting designed for demanding industrial ap... Details
Features
  • 400 mm
  • 510 mm
  • 7200.0000 kg
Custom or high volume? Request a quote now.
You have saved products in your offer list Request now

CAD files

Data sheets

Documents

The Omikron twin swivel castor features an extra large rectangular heavy-duty plate fitting designed for demanding industrial applications. The housing is constructed from iron forged, heavy material and incorporates a deep-groove ball thrust roller bearing swivel mechanism for smooth directional changes under load. The wheel assembly comprises a cast iron body with polyurethane, casted tread material, mounted on precision ball bearings for optimal performance and durability. With a wheel diameter of 400 mm, the castor has an overall height of 510 mm. Load capacity specifications include dynamic ratings of 7200 kg at 4 km/h and 5000 kg at 6 km/h operating speeds, whilst the static load capacity reaches 10800 kg. This heavy-duty castor is specifically engineered for airport equipment and AGV systems applications where reliability and high load-bearing capacity are essential requirements.
Roll performance
Movement noise
Attrition
Corrosion resistance
Article numbers
Article Number
9950FTP400P68
EAN
4031582316841
S4 Material Number
990801591
Core attributes
Type
Swivel castor
Overall width
285 mm
Load capacity at 4 km/h
7200 kg
Load capacity at 6 km/h
5000 kg
Load capacity Static
10800 kg
Overall height
510 mm
Temperature range (Maximum)
60 °C
Temperature range (Minimum)
-10 °C
Overall weight
91.11 kg
Product name
Omikron twin
Standard
similar EN12532 - Transport Equipment
Electric conductive
Stainless

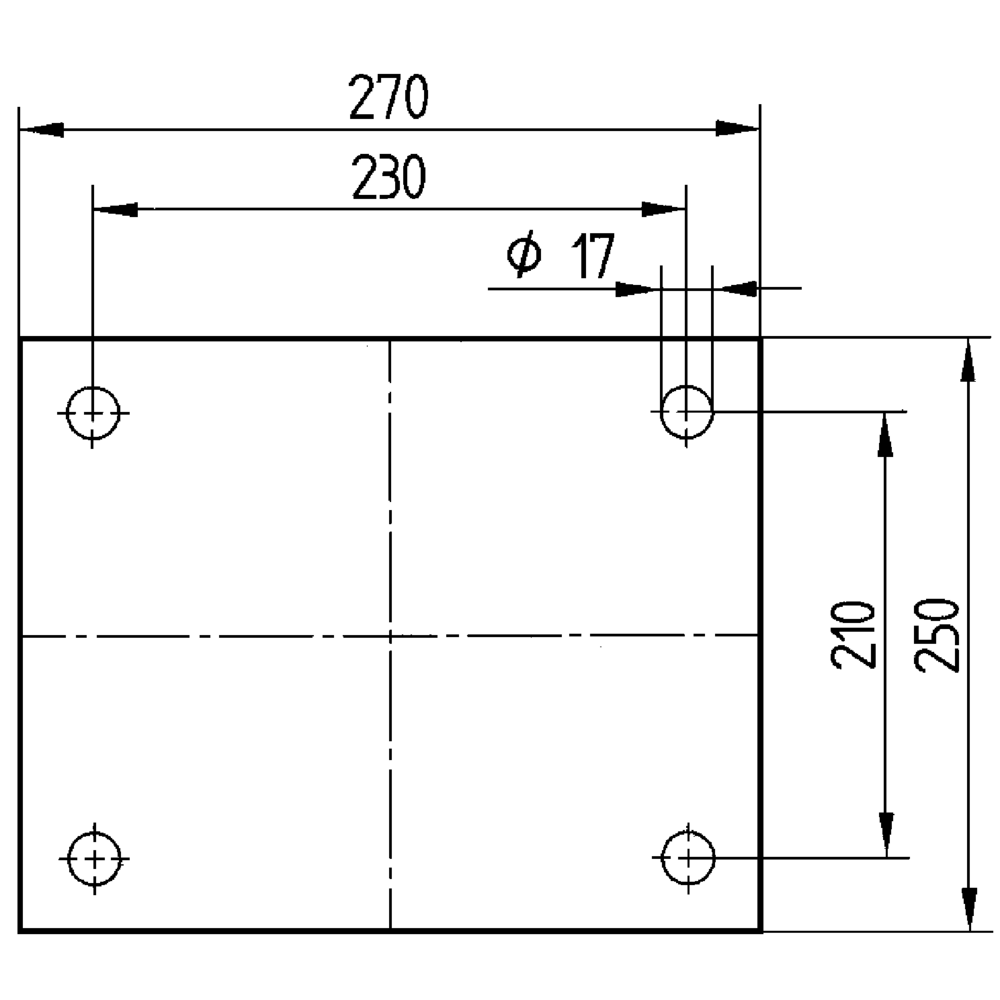

Fitting
Fitting type
Extra large rectangular heavy-duty plate
Plate hole diameter
17 mm
Plate hole length (Maximum)
210 mm
Plate hole length (Minimum)
210 mm
Plate hole width (Maximum)
230 mm
Plate hole width (Minimum)
230 mm
Plate length
270 mm
Plate width
250 mm
Housing
Colour
Transparent coating
Fork shape
Twin wheel housing
Material fork
Iron forged, heavy

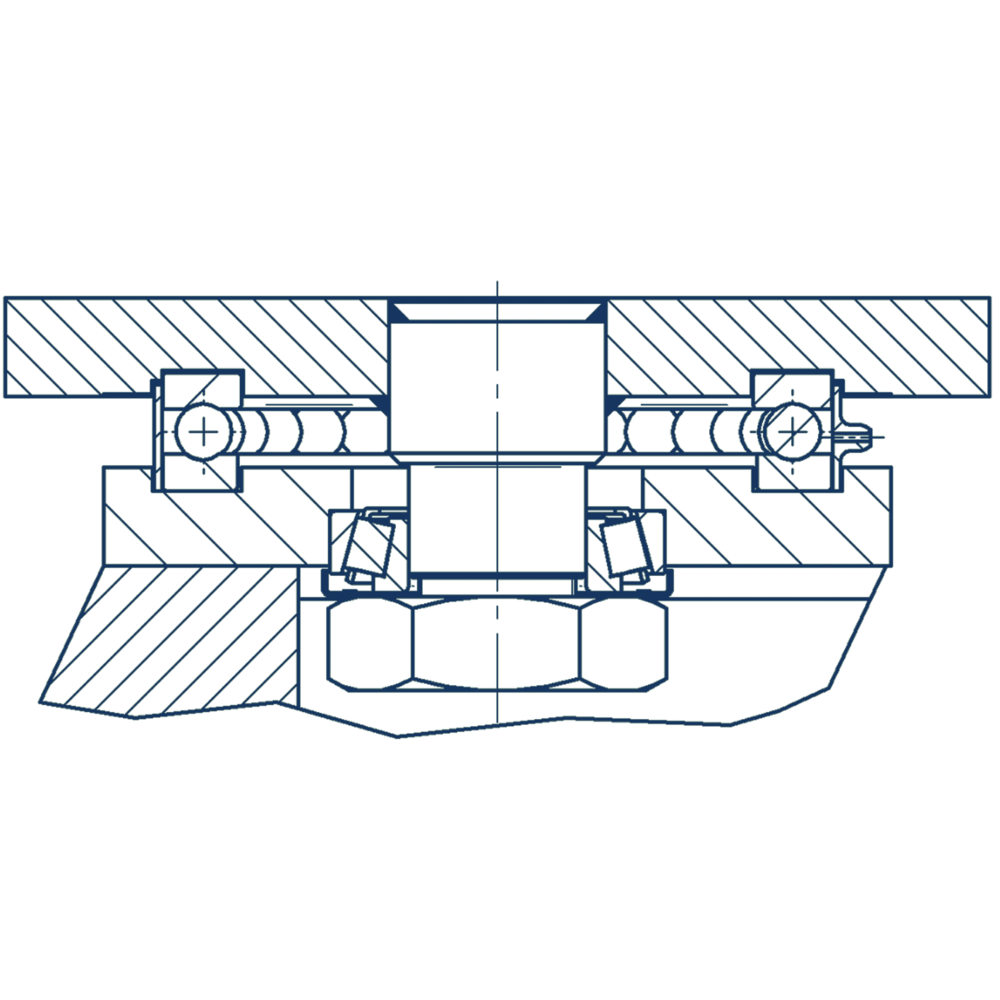

Swivel bearing
Deep-groove ball thrust roller bearing
Dome diameter
250.5 mm
Swivel interference
635 mm
Offset
105 mm
Swivel radius
317.5 mm
Wheel
Hardness of tread (A)
92 Shore A
Hardness of tread (D)
42 Shore D
Body material
Cast iron
Tread material
Polyurethane, casted
Tread width
80 mm
Diameter
400 mm
Body width
80 mm
Threadguards
With threadguard
Axle
Screwed with nut
Bearing
Precision ball bearing
Wheel color
Honey yellow (RAL1005)
special-features-image
Special Features
Non-hazardous materials
Complies with RoHS and REACH regulations. Does not contain polycyclic aromatic carbons or chromium (VI).
Tested quality
Tested in our own laboratory for compliance with European standards.
Solid housing
Made of pressed steel, zinc plated.
Strong construction
Housing made of heavy steel for high load capacity.
Low-maintenance wheels
Thread guards for unobstructed operation with minimal cleaning effort.
Non-marking movement
Wheels with reduced abrasion and little cleaning requirement.
Ergonomically friendly use
Wheels with optimised roll resistance to lighten the load for the user.
Quick maintenance
Swivel bearings lubricated with long-life grease and fitted with grease nipple for easy maintenance.
Extra heavy duty construction
Welded solid steel construction for highest load capacity.
Heavy duty construction
Extra heavy steel housing for high load capacity.
Optimised manoeuvrability
Twin wheel castor with high manoeuvrability due to differential effect.
Protect floors with load distribution
Two wheels distribute the load and minimise floor impressions.
Skip product gallery

Accessories

Wheel 400 mm
Wheel 400 mm
Novatech
FTP 400x80-Ø40 HL90

The Novatech castor wheel features a robust cast iron body construction with a 400mm diameter and 80mm wide polyurethane casted tread, incorporating precision ball bearings for smooth operation. The wheel includes a 40mm axle hole diameter and 90mm hub length for secure mounting. Load specifications include a static capacity of 5000kg, with dynamic capacities of 3000kg at 4km/h and 2500kg at 6km/h, making it suitable for heavy-duty industrial applications requiring reliable performance under varying operational speeds.

400 mm
Extreme Heavy Duty | > 1.500 kg
Details
400 mm
Extreme Heavy Duty | > 1.500 kg
Skip product gallery

Crossselling

Variants
Fixed castor 400 mm
Fixed castor 400 mm
Omikron twin
9958FTP400P68

The Omikron twin fixed castor features an extra large rectangular heavy-duty plate fitting designed for demanding industrial applications. The housing is constructed from iron forged, heavy material ensuring exceptional durability and strength. The wheel incorporates a cast iron body with polyurethane, casted tread material, mounted on precision ball bearing for smooth operation and extended service life. With a wheel diameter of 400 mm, the castor achieves an overall height of 510 mm. Load capacity specifications include dynamic loads of 7,200 kg at 4 km/h and 5,000 kg at 6 km/h operating speeds, whilst the static load capacity reaches 10,800 kg. This robust castor is specifically engineered for airport equipment and AGV systems where heavy-duty performance and reliability are essential requirements.

400 mm
Extreme Heavy Duty | > 1.500 kg
510 mm
Details
400 mm
Extreme Heavy Duty | > 1.500 kg
510 mm
