Swivel castor 125 mm
- Non-hazardous materials
- Tested quality
- Uninterrupted use
CAD files
Accessories
The Elastech wheel is a castor wheel manufactured from polyamide with a diameter of 125 mm and a tread width of 40 mm, featuring an elastic tire in black vulcanized material that provides reliable performance across various applications. The wheel is equipped with a roller bearing and incorporates a hub length of 44 mm with an axle hole diameter of 12 mm, ensuring compatibility with standard castor assemblies. This wheel is designed to support a static load capacity of 500 kg, whilst maintaining a dynamic load capacity of 250 kg at speeds up to 4 km/h, making it suitable for both stationary and mobile applications requiring robust load-bearing capabilities in industrial and commercial environments.
Matching Products

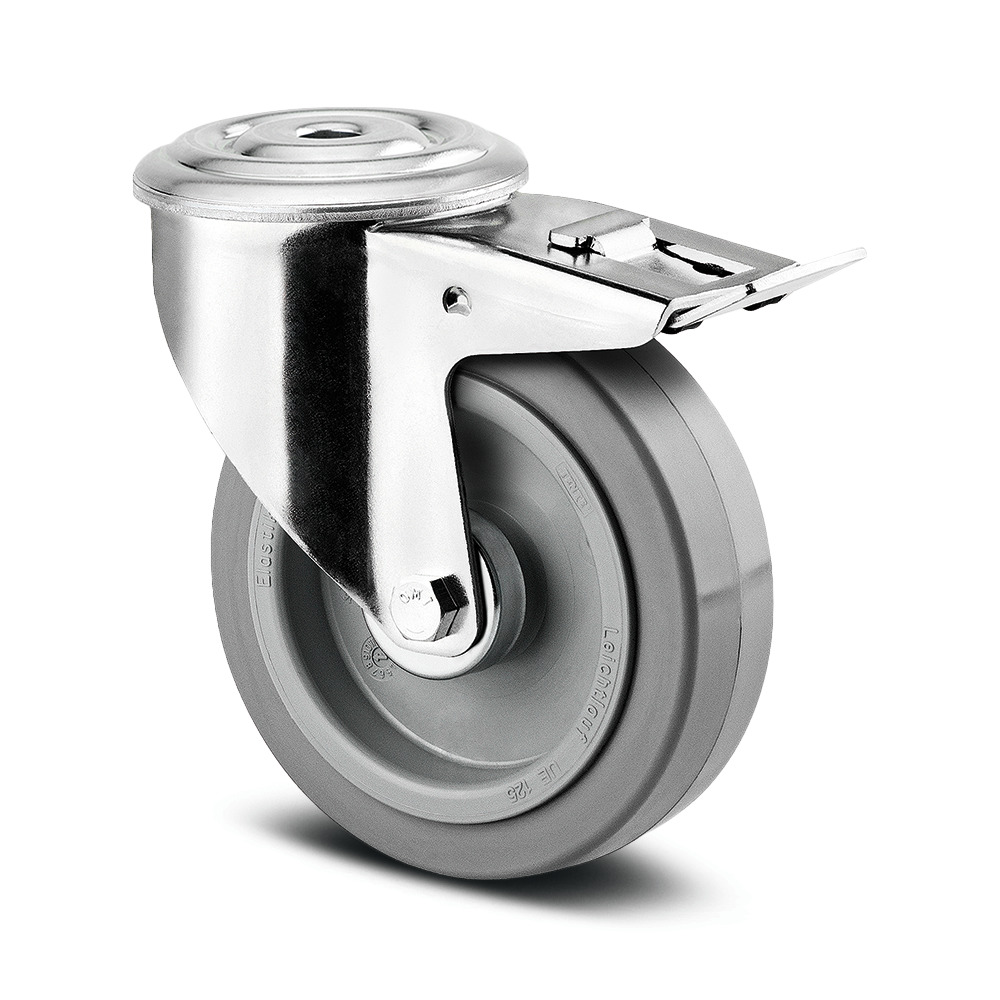

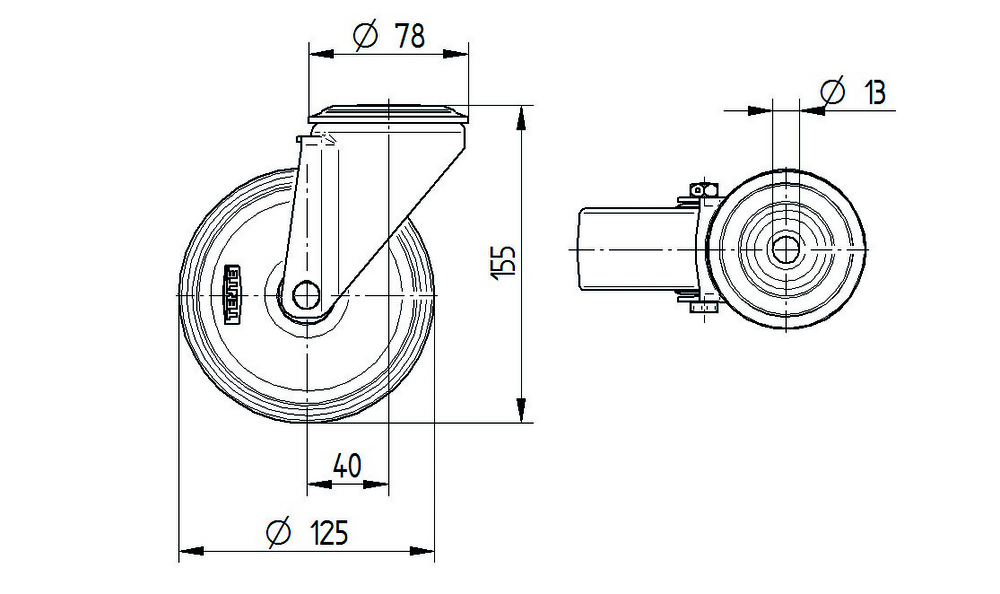

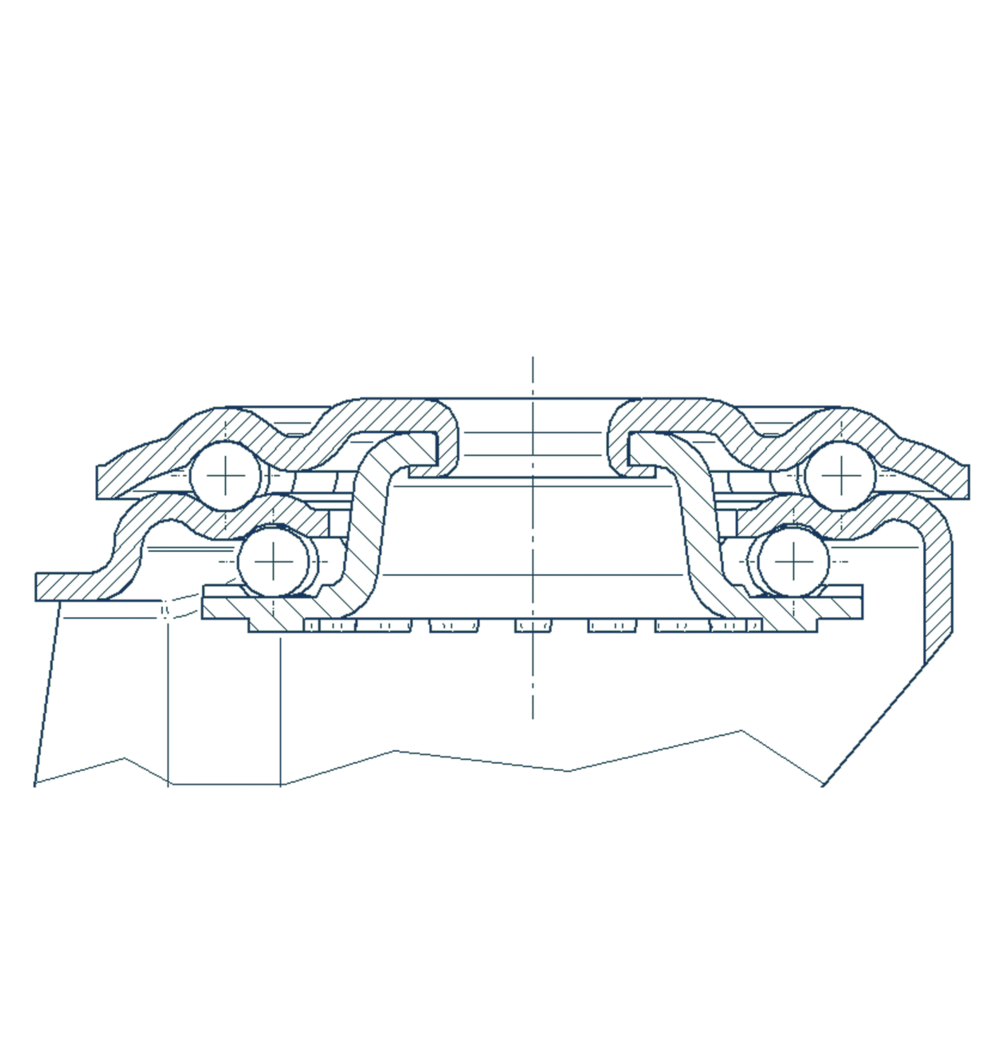

The Alpha is a swivel castor with total lock, designed for demanding industrial applications and equipped with a bolt hole fitting for secure installation. The housing is constructed from heavy steel sheet and features two ball races for smooth swivel operation, ensuring reliable performance in high-frequency use environments. The wheel comprises a 125 mm diameter design with a polyamide body and is fitted with a roller bearing for enhanced durability and smooth rotation. The tread is manufactured from elastic, non-marking, vulcanised material, making it suitable for sensitive floor surfaces and clean-room environments where marking prevention is critical. The castor achieves an overall height of 155 mm, providing a compact profile suitable for integration into various equipment designs. Load capacity specifications indicate a static load rating of 320 kg, whilst the dynamic load capacity reaches 160 kg at a maximum speed of 4 km/h, making this castor ideal for applications including automotive original equipment manufacturing, catering carts and meal delivery systems, container construction, electronic systems and clean-room technology, fire fighting and fire protection equipment, machine construction, post logistic systems, production and platform trolleys, roll cages, tool cabinets, transport equipment, waste disposal equipment, and work benches. This comprehensive specification ensures the Alpha castor delivers reliable performance across diverse industrial and commercial sectors.
