linea

Linea
Order number: 990771073
EAN: 4031582378498
Product number: 594CXSP125P50 RAL9002 combined Ri-Festst
  • Non-hazardous materials
  • Tested quality
  • Colour matching
The Linea swivel castor with combined lock is engineered for demanding healthcare and commercial environments, featuring a recta... Details
Custom or high volume? Request a quote now.
You have saved products in your offer list Request now

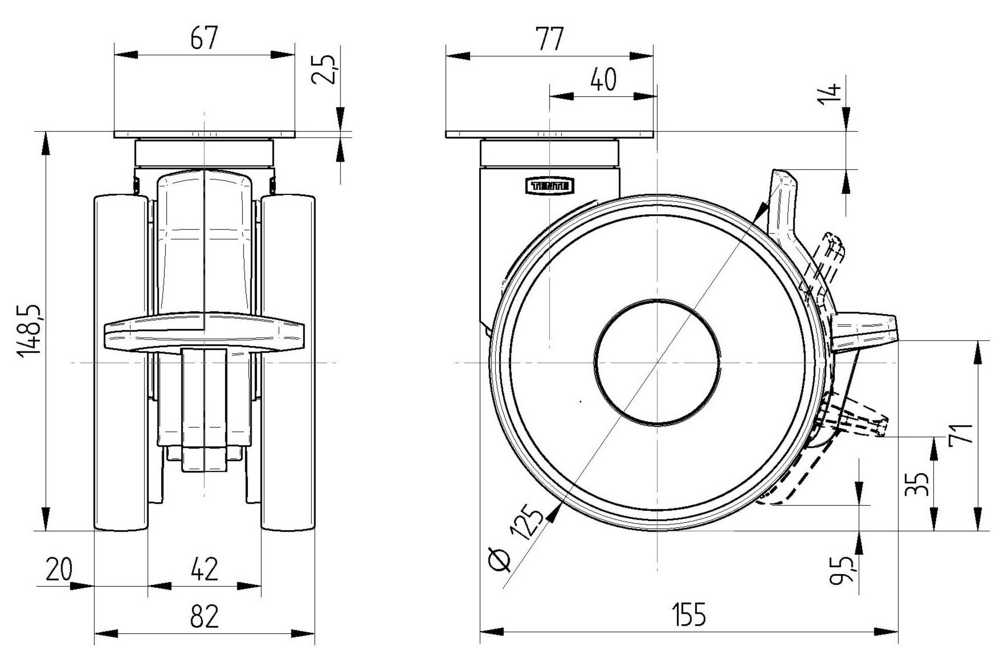

The Linea swivel castor with combined lock is engineered for demanding healthcare and commercial environments, featuring a rectangular plate fitting that ensures secure and stable mounting across diverse equipment platforms. The housing is constructed from polyamide with a precision ball bearing swivel mechanism, delivering smooth rotational performance and exceptional durability under continuous operational stress. The wheel assembly comprises a 125 mm diameter polyurethane tread with injected, electric-conductive properties, mounted on a precision ball bearing that guarantees reliable mobility whilst maintaining electrical safety standards essential for sensitive medical environments. The polyamide housing material is electric conductive, complementing the wheel's conductive tread to provide comprehensive electrostatic dissipation capabilities throughout the castor assembly. With an overall height of 148 mm, the Linea castor integrates seamlessly into equipment designs whilst maintaining optimal ergonomic clearance and manoeuvrability. The castor delivers a static load capacity of 220 kg, accommodating substantial equipment weight, whilst maintaining a dynamic load capacity of 110 kg at operational speeds up to 3 km/h, ensuring safe and controlled movement in clinical and commercial settings. This combination of robust construction, precision engineering, and electrical conductivity makes the Linea castor ideally suited for anesthesia carts, C-arms, CT scanners, MRI systems, X-ray equipment, care beds, catering carts, computers on wheels, dialysis carts, medication carts, nursing carts, patient lifters, recliners, surgery robots, treatment chairs, ultrasound systems, ventilators, and professional cleaning carts across hospitals, nursing homes, and retirement facilities.
Roll performance
Movement noise
Attrition
Corrosion resistance
Awards
Awards
019bb808ca2f71ceba27dde73e12ee47,019bbbd5e2a570aeab9a38b862a764b9,019bbbd5f0bb737e8686f6994897a48d
Article numbers
Article Number
594CXSP125P50 RAL9002 combined Ri-Festst
EAN
4031582378498
S4 Material Number
990771073
Core attributes
Certification
Tested and monitored by TÜV Süd
Type
Swivel castor with combined lock
Overall width
82 mm
Load capacity at 3 km/h
110 kg
Load capacity Static
220 kg
Overall Height
148 mm
Temperature range (Maximum)
60 °C
Temperature range (Minimum)
-20 °C
Overall weight
0.91 kg
Product Name
Linea
Standard
EN12530 - Devices Castors
Electric Conductive
Stainless
Fitting
Fitting type
Rectangular plate
Plate hole diameter
8.5 mm
Plate hole length (Maximum)
52 mm
Plate hole length (Minimum)
44.5 mm
Plate hole width (Maximum)
76 mm
Plate hole width (Minimum)
72 mm
Plate length
95 mm
Plate width
70 mm
Housing
Housing Color
Grey white (RAL9002)
Fork shape
Twin wheel housing
Housing Material
Polyamide
Swivel Bearing
Precision ball bearing
Dome diameter
52 mm
Swivel interference
258 mm
Offset
40 mm
Swivel radius
129 mm
Wheel
Hardness of tread (A)
92 Shore A
Hardness of tread (D)
42 Shore D
Body material
Polyamide, electric conductive
Tread Material Mix
Polyurethane, injected, electric-conductive
Axle Hole Diameter
0 mm
Hub Length
0 mm
Tread width
20 mm
Diameter
125 mm
Body width
20 mm
Threadguards
With threadguard
Tread Color
Slate grey (RAL7015)
Bearing
Precision ball bearing
Wheel Color
Slate grey (RAL7015)

Deutscher Designer Club

Deutscher Designer Club

Interzum Award

Interzum Award

IF Design Award

IF Design Award

special-features-image
Special Features
Non-hazardous materials
Complies with RoHS and REACH regulations. Does not contain polycyclic aromatic carbons or chromium (VI).
Tested quality
Tested in our own laboratory for compliance with European standards.
Colour matching
Colours can be adapted to match the product design
Award-winning design
Awarded with prestigious prizes by international juries.
User-friendly colour scheme
Green kickstop pedal for directional lock and red kickstop pedal for total lock.
Painted surface
Gold, chrome or glossy coloured.
Low-maintenance wheels
Thread guards for unobstructed operation with minimal cleaning effort.
Non-marking movement
Wheels with reduced abrasion and little cleaning requirement.
Ergonomically friendly use
Wheels with optimised roll resistance to lighten the load for the user.
Certified conductivity
Conductive version to protect users and electrical devices from electrostatic discharge.
Chemical-resistant components
Insensitive to many cleaning agents and chemical substances.
Optimised manoeuvrability
Twin wheel castor with high manoeuvrability due to differential effect.
Reduced cleaning
Due to mainly smooth surfaces, the castors are quick and easy to clean.
Integrated cable protection
Integrated cable pusher to protect cables lying on the floor.
Individual branding
Engraved, casted or printed.
Fascinating picture prints
Entire wheel caps printable with almost every theme.
