Linea

EAN: 4031582352122

Product number: 5940XSP100P50 RAL9002

Non-hazardous materials
Tested quality
Colour matching

The Linea swivel castor features a rectangular plate fitting for secure mounting applications. The housing is constructed from d... Details

Features

100 mm
124 mm
120.0000 kg

Wheel

Wheel Diameter

Housing Color

Housing

Fitting

Custom or high volume? Request a quote now.

CAD files

Data sheets

ds_ARB006759_5940XSP100P50_RAL9002_en_GB.pdf

Documents

The Linea swivel castor features a rectangular plate fitting for secure mounting applications. The housing is constructed from durable polyamide material and incorporates a precision ball bearing swivel mechanism to ensure smooth directional changes and extended service life. The wheel assembly comprises a polyamide body with electric-conductive properties, fitted with an injected polyurethane tread that maintains electrical conductivity throughout the contact surface. The wheel operates on precision ball bearings and measures 100 mm in diameter for optimal load distribution. The complete assembly has an overall height of 124 mm, making it suitable for various industrial applications. Load specifications include a dynamic capacity of 120 kg at speeds up to 3 km/h and a static load rating of 240 kg, providing reliable performance under demanding operational conditions whilst maintaining electrical conductivity for sensitive environments.

Roll performance

Movement noise

Attrition

Corrosion resistance

Article numbers

Article Number

5940XSP100P50 RAL9002

EAN

4031582352122

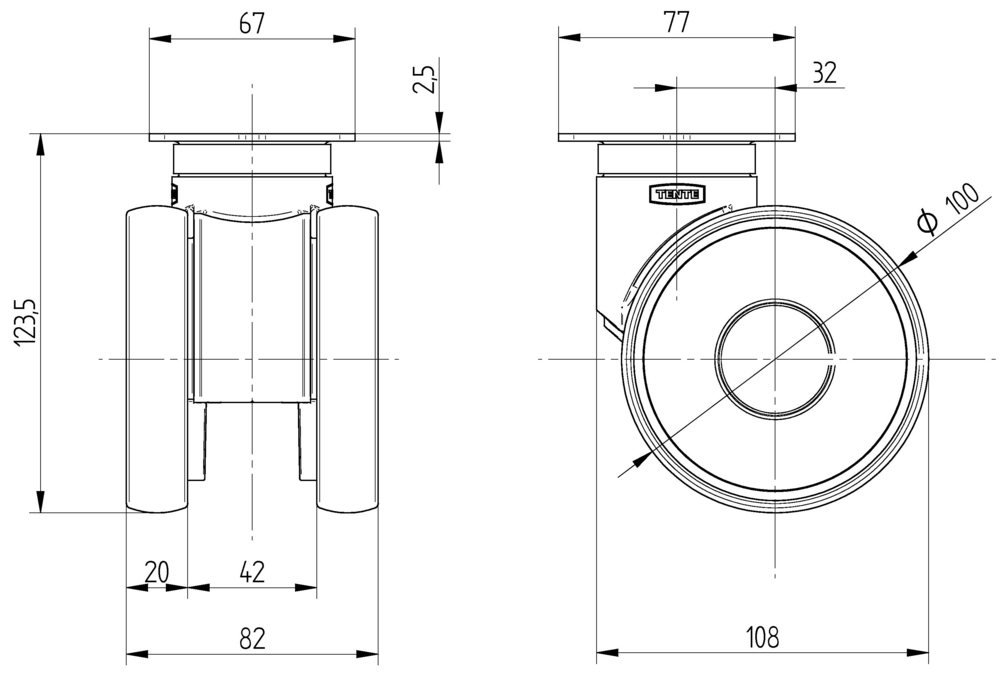

Core attributes

Type

Swivel castor

Overall width

82 mm

Load capacity at 3 km/h

120 kg

Load capacity Static

240 kg

Overall height

124 mm

Temperature range (Maximum)

40 °C

Temperature range (Minimum)

-10 °C

Product name

Linea

Standard

EN12530 - Devices Castors

Electric conductive

Stainless

Fitting

Fitting type

Rectangular plate

Plate hole diameter

8.5 mm

Plate hole length (Maximum)

61.5 mm

Plate hole length (Minimum)

56 mm

Plate hole width (Maximum)

51.5 mm

Plate hole width (Minimum)

46.5 mm

Plate length

77 mm

Plate width

67 mm

Housing

Colour

Grey white (RAL9002)

Fork shape

Twin wheel housing

Material fork

Polyamide

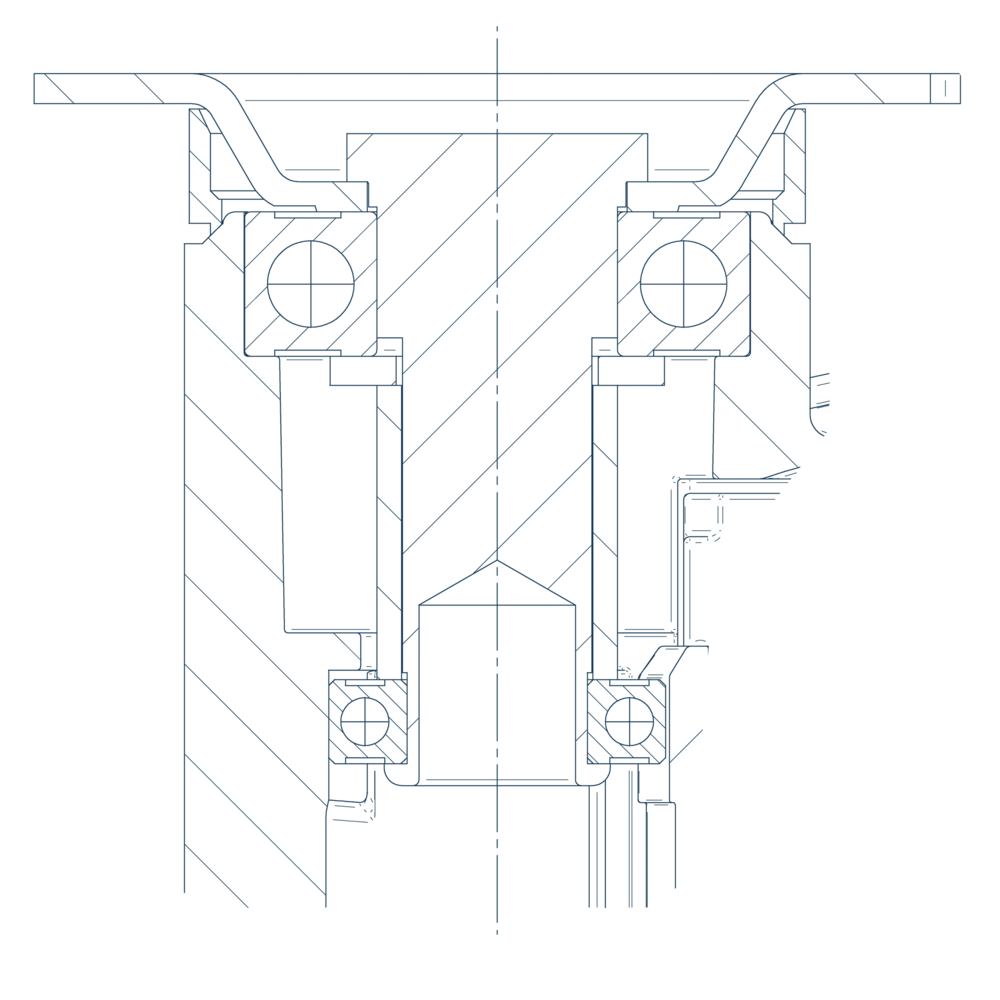

Swivel bearing

Precision ball bearing

Dome diameter

52 mm

Swivel interference

180 mm

Offset

32 mm

Swivel radius

90 mm

Wheel

Hardness of tread (A)

92 Shore A

Body material

Polyamide, electric conductive

Tread material

Polyurethane, injected, electric-conductive

Tread width

20 mm

Diameter

100 mm

Threadguards

With threadguard

Bearing

Precision ball bearing

Deutscher Designer Club

Interzum Award

IF Design Award

Special Features

Non-hazardous materials

Complies with RoHS and REACH regulations. Does not contain polycyclic aromatic carbons or chromium (VI).

Tested quality

Tested in our own laboratory for compliance with European standards.

Colour matching

Colours can be adapted to match the product design

Award-winning design

Awarded with prestigious prizes by international juries.

Painted surface

Gold, chrome or glossy coloured.

Low-maintenance wheels

Thread guards for unobstructed operation with minimal cleaning effort.

Non-marking movement

Wheels with reduced abrasion and little cleaning requirement.

Ergonomically friendly use

Wheels with optimised roll resistance to lighten the load for the user.

Certified conductivity

Conductive version to protect users and electrical devices from electrostatic discharge.

Chemical-resistant components

Insensitive to many cleaning agents and chemical substances.

Optimised manoeuvrability

Twin wheel castor with high manoeuvrability due to differential effect.

Reduced cleaning

Due to mainly smooth surfaces, the castors are quick and easy to clean.

Integrated cable protection

Integrated cable pusher to protect cables lying on the floor.

Individual branding

Engraved, casted or printed.
