Linea safety
Linea safety
Order number:
990771682
EAN:
4031582399363
Product number:
592DUAP100L51-11 7001/7015
- Non-hazardous materials
- Tested quality
- Colour matching

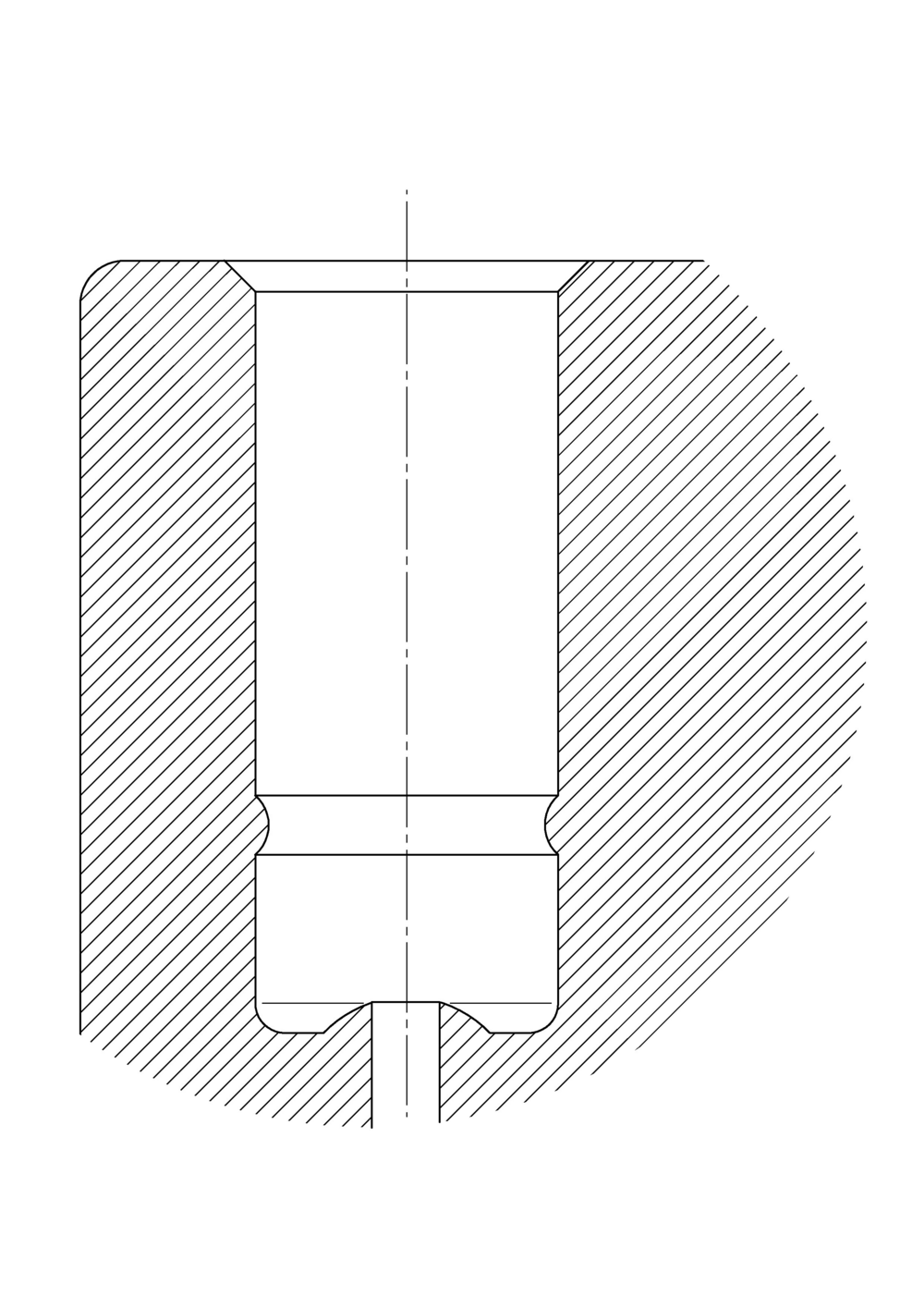

The Linea safety automatic locking system features a blind hole for B10 fitting configuration. The housing is constructed from p...
Details
Custom or high volume? Request a quote now.
CAD files
You can download construction data for this product.

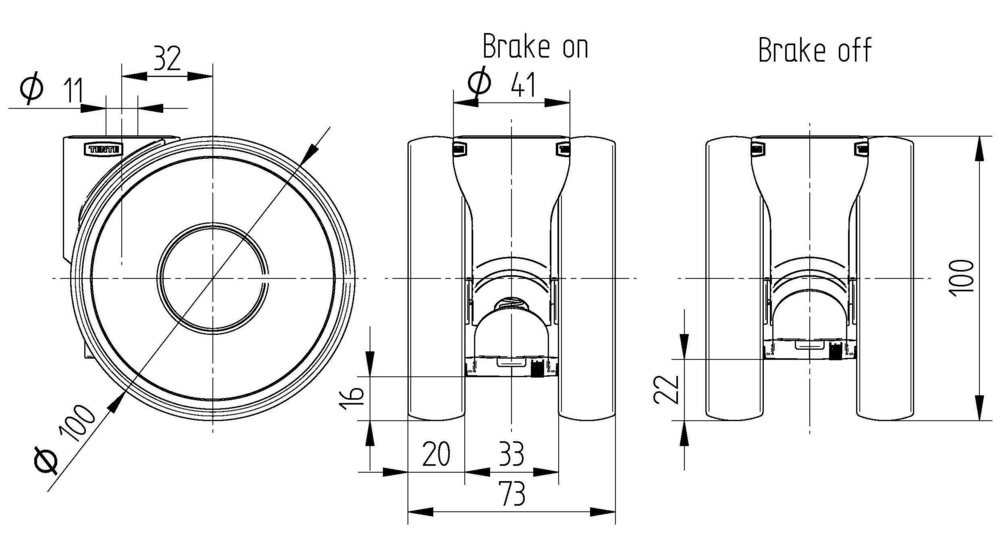

The Linea safety automatic locking system features a blind hole for B10 fitting configuration. The housing is constructed from polyamide material with a stem, swiveling swivel bearing design. The wheel incorporates a polyamide body with polyurethane, injected tread material and precision ball bearing for smooth operation. The wheel diameter measures 100 mm with an overall height of 100 mm. Load specifications include a dynamic capacity of 100 kg at 3 km/h operating speed and a static load capacity of 200 kg. This system is specifically designed for demanding medical and institutional applications including anesthesia carts, C-arms, CT scanners, MRI, X-ray equipment, care beds, computers on wheels, dialysis carts, media furniture, medication carts, mobilisation and special needs equipment, nursing carts, ultrasound devices, and ventilators.
Roll performance
Movement noise
Attrition
Corrosion resistance
Advantages
Awards
Article numbers
Core attributes
Fitting
Housing
Performance
Wheel
Deutscher Designer Club
Deutscher Designer Club
Interzum Award
Interzum Award
IF Design Award
IF Design Award
Special Features
Non-hazardous materials
Complies with RoHS and REACH regulations. Does not contain polycyclic aromatic carbons or chromium (VI).
Tested quality
Tested in our own laboratory for compliance with European standards.
Colour matching
Colours can be adapted to match the product design
Award-winning design
Awarded with prestigious prizes by international juries.
Reduced risk of accidents
Extremely low height to reduce the risk of accidents when used under hospital beds.
Secure lock
Only starts rolling when a lever or handle is activated by the user. Unintentional movement is effectively prevented.
Low-maintenance wheels
Thread guards for unobstructed operation with minimal cleaning effort.
Non-marking movement
Wheels with reduced abrasion and little cleaning requirement.
Ergonomically friendly use
Wheels with optimised roll resistance to lighten the load for the user.
Optimised manoeuvrability
Twin wheel castor with high manoeuvrability due to differential effect.
Individual branding
Engraved, casted or printed.
Efficient operation
Central locking at the touch of a button for the ultimate in comfort.
