Linea low height

EAN: 4031582373035

Product number: 5940UAP100P30-8 LH RAL7001

Non-hazardous materials
Tested quality
Colour matching

The Linea low height swivel castor has a bolt hole fitting with a housing made of polyamide and a precision ball bearing swivel ... Details

Features

100 mm
103 mm
100.0000 kg

Wheel

Wheel Diameter

Housing Color

Housing

Fitting

Custom or high volume? Request a quote now.

CAD files

Data sheets

ds_ARB008254_5940UAP100P30_8_LH_RAL7001_en_GB.pdf

Documents

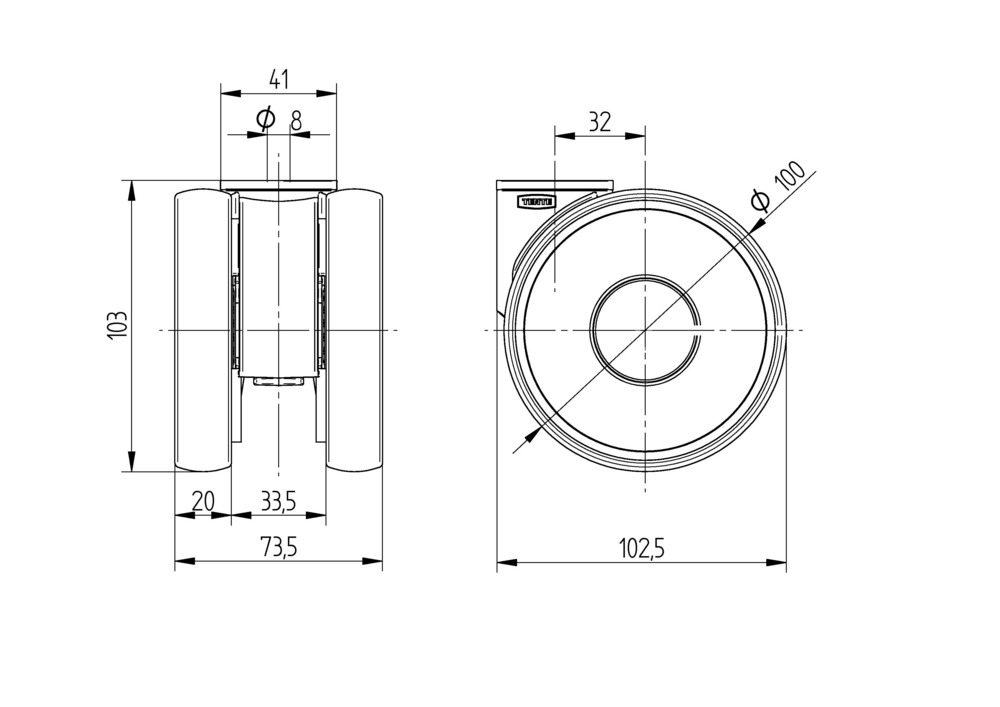

The Linea low height swivel castor has a bolt hole fitting with a housing made of polyamide and a precision ball bearing swivel bearing. The wheel body material is polyamide with a polyurethane tread injected onto the wheel. The wheel features a precision ball bearing and has a diameter of 100 mm. The overall height of the castor is 103 mm. At a speed of 3 km/h, the Linea low height castor has a load capacity of 100 kg. Under static load conditions, the load capacity is 200 kg.

Roll performance

Movement noise

Attrition

Corrosion resistance

Article numbers

Article Number

5940UAP100P30-8 LH RAL7001

EAN

4031582373035

Core attributes

Type

Swivel castor

Overall width

73 mm

Load capacity at 3 km/h

100 kg

Load capacity Static

200 kg

Overall height

103 mm

Temperature range (Maximum)

40 °C

Temperature range (Minimum)

-10 °C

Overall weight

0.25 kg

Product name

Linea low height

Standard

EN12530 - Devices Castors

Electric conductive

Stainless

Fitting

Fitting type

Bolt hole

Bolt hole diameter

8 mm

Housing

Colour

Silver grey (RAL7001)

Fork shape

Twin wheel housing

Material fork

Polyamide

Swivel bearing

Precision ball bearing

Dome diameter

41 mm

Swivel interference

180 mm

Offset

32 mm

Swivel radius

88 mm

Wheel

Hardness of tread (A)

92 Shore A

Body material

Polyamide

Tread material

Polyurethane, injected

Tread width

20 mm

Diameter

100 mm

Threadguards

With threadguard

Bearing

Precision ball bearing

Deutscher Designer Club

Interzum Award

IF Design Award

Special Features

Non-hazardous materials

Complies with RoHS and REACH regulations. Does not contain polycyclic aromatic carbons or chromium (VI).

Tested quality

Tested in our own laboratory for compliance with European standards.

Colour matching

Colours can be adapted to match the product design

Award-winning design

Awarded with prestigious prizes by international juries.

Reduced risk of accidents

Extremely low height to reduce the risk of accidents when used under hospital beds.

Robust housing

Twin wheel castor for high load capacity and low height.

Low-maintenance wheels

Thread guards for unobstructed operation with minimal cleaning effort.

Non-marking movement

Wheels with reduced abrasion and little cleaning requirement.

Ergonomically friendly use

Wheels with optimised roll resistance to lighten the load for the user.

Optimised manoeuvrability

Twin wheel castor with high manoeuvrability due to differential effect.

Individual branding

Engraved, casted or printed.
