Levina
Levina
EAN:
4031582363425
Product number:
5370UAP150P50
- Non-hazardous materials
- Tested quality
- Colour matching
The Levina swivel castor features a rectangular plate fitting for secure mounting applications. The housing is constructed from ...
Details
Custom or high volume? Request a quote now.
Data sheets
Documents
- Transport_chairs_with_Levina_scan.pdf
- Solutions_for_the_cleaning_industry.pdf
- Solutions_for_shopfitting_and_design.pdf
- TENTE_medical_furniture_product_brochure_EN_RZ_print.pdf
- TENTE_medical_devices_product_brochure_EN_RZ_print.pdf
- Solutions_for_commercial_kitchens_and_food_logistics.pdf
- TENTE_Levina_product_information_TRI_RZ_EN_web.pdf

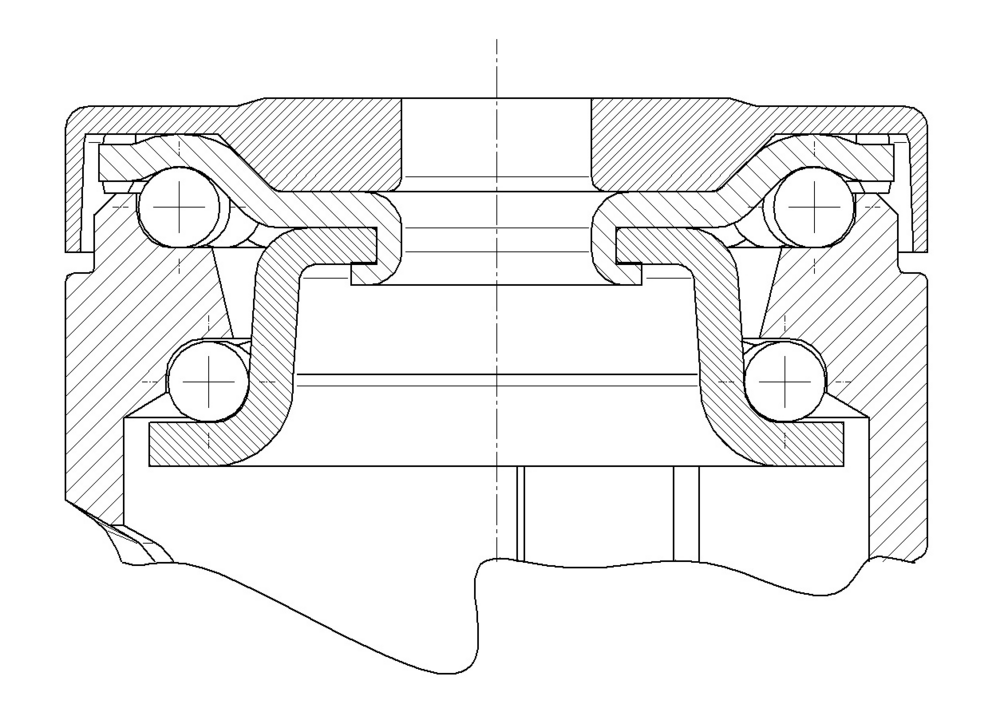

The Levina swivel castor features a rectangular plate fitting for secure mounting applications. The housing is constructed from durable polyamide material and incorporates a precision two ball race swivel bearing system for smooth directional movement. The wheel assembly comprises a polyamide body with an injected polyurethane tread, providing excellent floor protection and quiet operation. The wheel is equipped with precision ball bearings and measures 150 mm in diameter for optimal load distribution. The castor has an overall height of 190 mm, making it suitable for medium-duty applications. Load specifications include a dynamic capacity of 100 kg at speeds up to 3 km/h and a static load capacity of 200 kg, ensuring reliable performance under varying operational conditions.
Roll performance
Movement noise
Attrition
Corrosion resistance
Article numbers
Core attributes
Fitting
Housing
Wheel
Universal Design Award
Universal Design Award
Deutscher Designer Club
Deutscher Designer Club
Special Features
Non-hazardous materials
Complies with RoHS and REACH regulations. Does not contain polycyclic aromatic carbons or chromium (VI).
Tested quality
Tested in our own laboratory for compliance with European standards.
Variable fitting options
Different fitting dimensions for a large range of applications.
Colour matching
Colours can be adapted to match the product design
Award-winning design
Awarded with prestigious prizes by international juries.
Unbreakable construction
Extremely high shock absorbing.
Low-maintenance wheels
Thread guards for unobstructed operation with minimal cleaning effort.
Non-marking movement
Wheels with reduced abrasion and little cleaning requirement.
Easy steering
Double ball bearing swivel head.
Ergonomically friendly use
Wheels with optimised roll resistance to lighten the load for the user.
Chemical-resistant components
Insensitive to many cleaning agents and chemical substances.
