Levina
- Non-hazardous materials
- Tested quality
- Colour matching
CAD files
Data sheets
Documents
- Transport_chairs_with_Levina_scan.pdf
- Solutions_for_the_cleaning_industry.pdf
- Solutions_for_shopfitting_and_design.pdf
- TENTE_medical_furniture_product_brochure_EN_RZ_print.pdf
- TENTE_medical_devices_product_brochure_EN_RZ_print.pdf
- Solutions_for_commercial_kitchens_and_food_logistics.pdf
- TENTE_Levina_product_information_TRI_RZ_EN_web.pdf
Universal Design Award
Universal Design Award
Deutscher Designer Club
Deutscher Designer Club
Crossselling

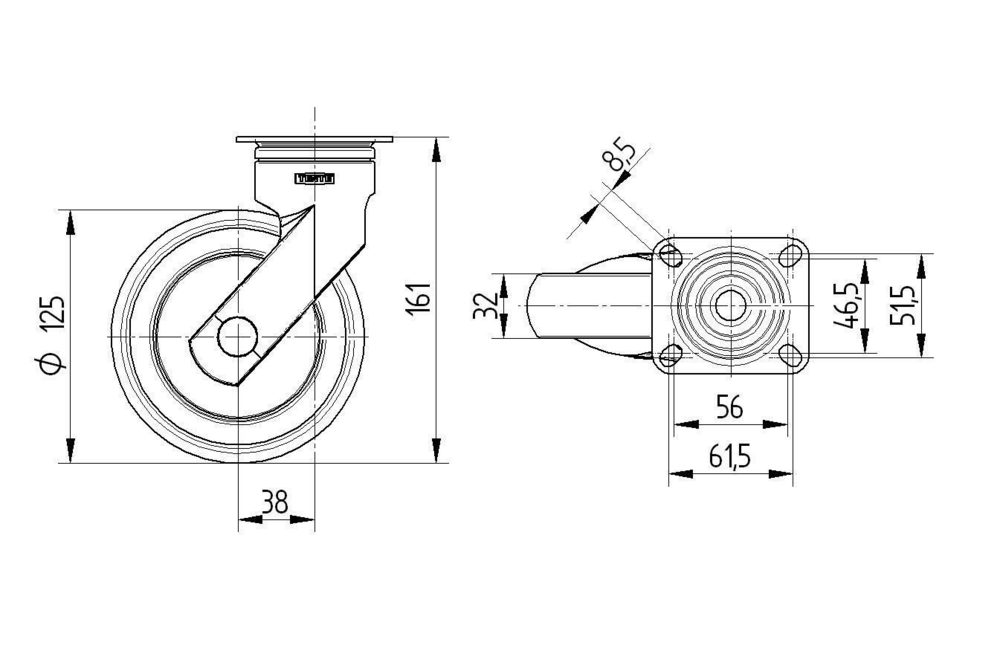

The Levina swivel castor with directional lock features a rectangular plate fitting for secure mounting to equipment bases. The housing is constructed from durable polyamide material and incorporates two ball races in the swivel bearing mechanism to ensure smooth directional movement and reliable locking functionality. The wheel assembly comprises a polypropylene body with thermoplastic rubber tread material for optimal floor protection and quiet operation, whilst the precision ball bearing system provides smooth rolling performance with a wheel diameter of 125 mm. The castor has an overall height of 161 mm, making it suitable for various mobile equipment applications. Load specifications include a dynamic capacity of 100 kg at speeds up to 3 km/h and a static load capacity of 200 kg, ensuring reliable performance in demanding healthcare, catering, and industrial environments where precise manoeuvrability and secure positioning are essential requirements.
The Levina swivel castor with total lock features a rectangular plate fitting for secure mounting applications. The housing is constructed from durable polyamide material and incorporates a two ball races swivel bearing system for smooth directional changes and reliable locking functionality. The wheel assembly consists of a polypropylene body with thermoplastic rubber tread material, providing excellent floor protection and quiet operation, whilst the precision ball bearing ensures smooth rolling performance with a 125 mm diameter wheel. The castor has an overall height of 161 mm, making it suitable for various equipment configurations. Load specifications include a dynamic capacity of 100 kg at speeds up to 3 km/h and a static load capacity of 200 kg, making it ideal for medical equipment, catering systems, cleaning carts, and industrial applications.
