integral_assist
Integral assist
Order number:
900000130
EAN:
4031582551112
Product number:
ED44ETW150R36-32S30 D 9002 4xM6 270°
- Non-hazardous materials
- Tested quality
- Award-winning design
The Integral assist is a swivel castor with central, total or directional lock, specifically engineered for electromobility appl...
Details
Custom or high volume? Request a quote now.

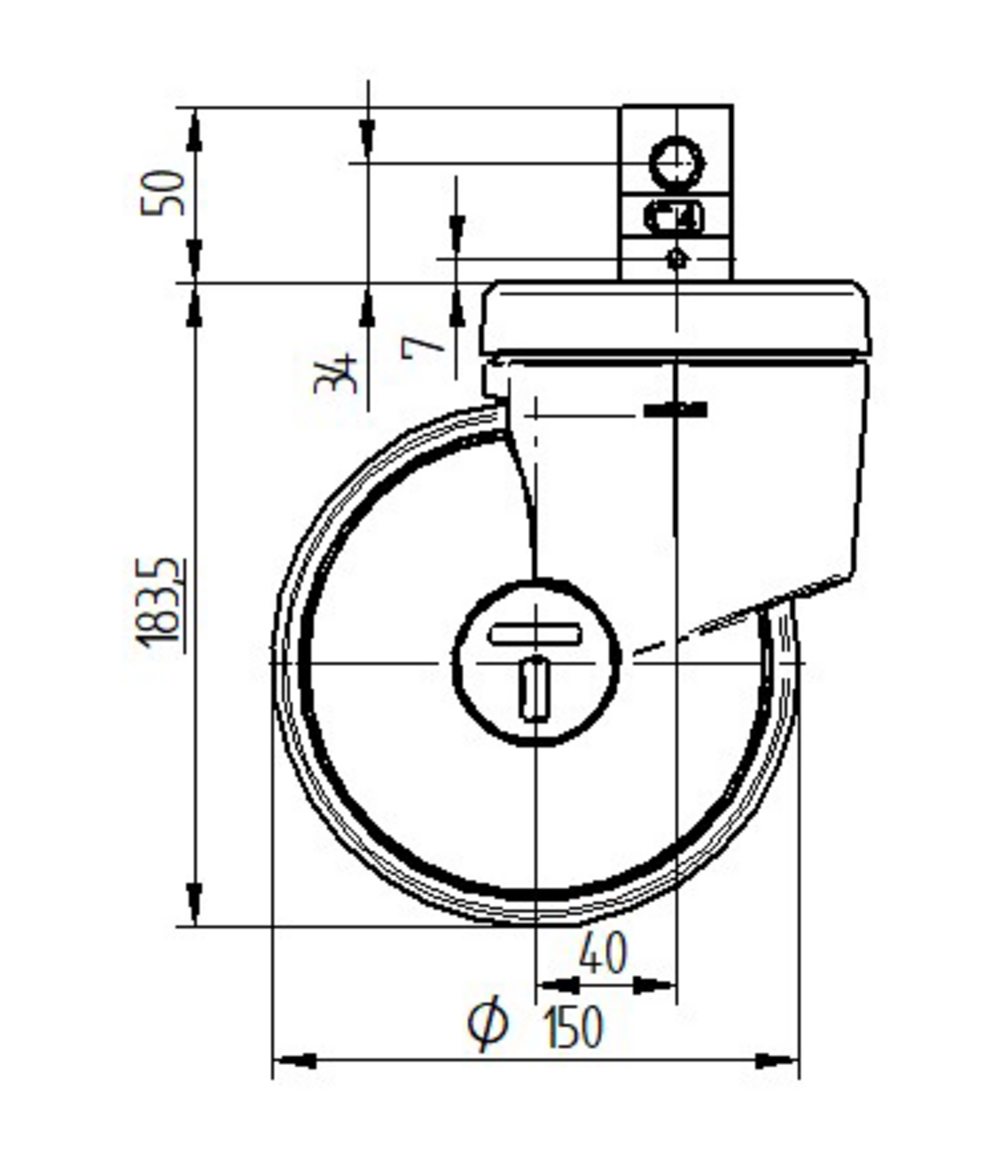

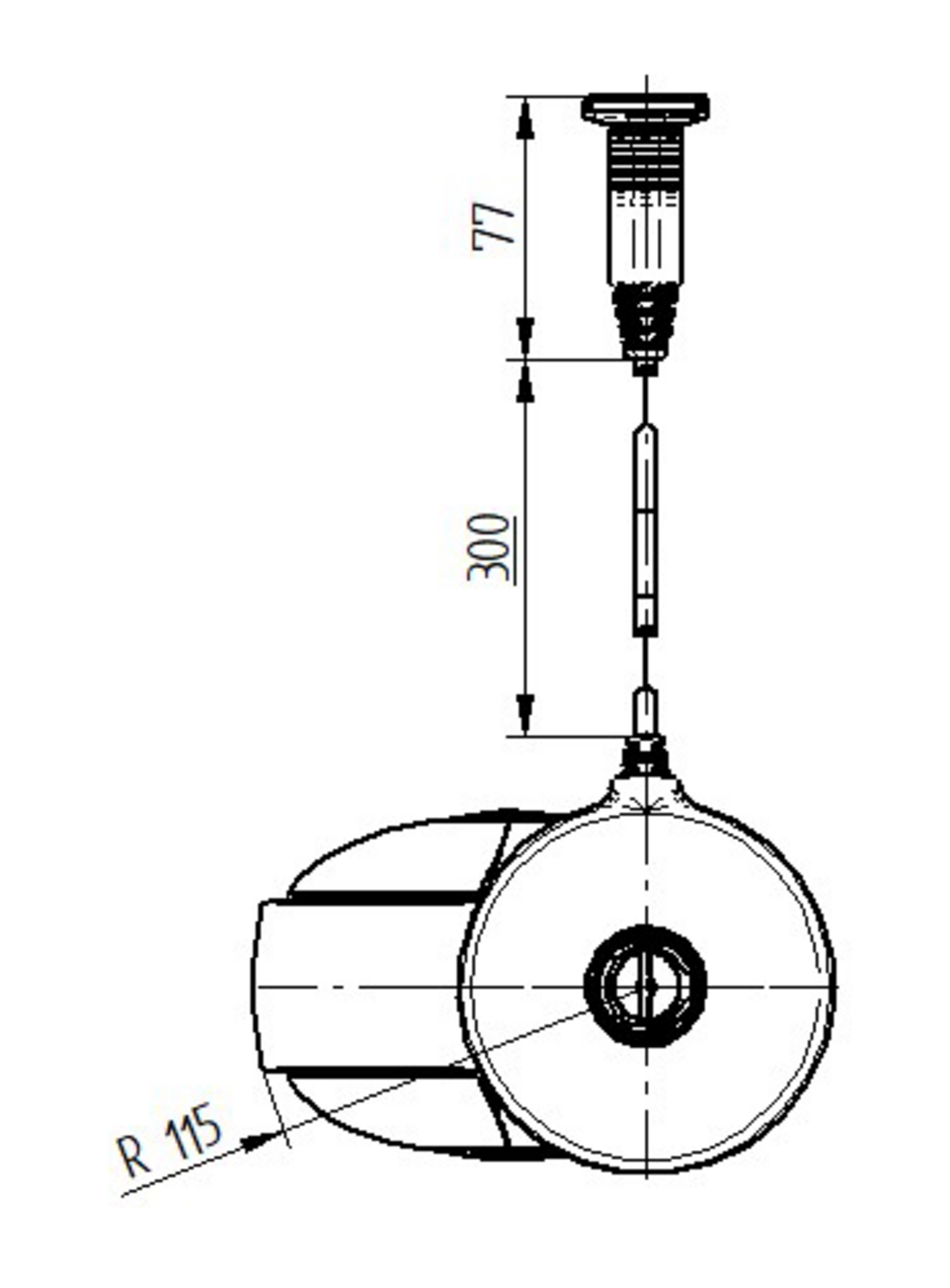

CAD files
You can download construction data for this product.
The Integral assist is a swivel castor with central, total or directional lock, specifically engineered for electromobility applications requiring reliable manoeuvrability and stability. Featuring a 150 mm diameter wheel constructed from premium PUR casted material, this castor delivers exceptional durability and smooth operation across diverse healthcare environments. The robust steel and iron body housing ensures structural integrity and longevity in demanding medical settings. The fitting incorporates a stem with cam hole for profile bars in short version configuration, enabling straightforward integration into existing equipment frameworks. This castor is ideally suited for deployment in hospitals, nursing and retirement homes, and is compatible with a comprehensive range of medical equipment including anesthesia carts, medication carts, nursing carts, dialysis carts, hospital beds, stretchers, ventilators, ultrasound systems, and imaging equipment such as C-Arms, CT scanners, MRI and X-Ray apparatus. The locking mechanism provides enhanced safety and control, making the Integral assist an essential component for stationary positioning and secure transport of critical medical devices throughout healthcare facilities.
Roll performance
Movement noise
Attrition
Corrosion resistance
Awards
Article numbers
Drive Unit Actuator
Drive Unit Travel Motor
Core attributes
Fitting
Housing
Wheel
Red Dot Design Award
Red Dot Design Award
Special Features
Non-hazardous materials
Complies with RoHS and REACH regulations. Does not contain polycyclic aromatic carbons or chromium (VI).
Tested quality
Tested in our own laboratory for compliance with European standards.
Prevents unintended movement
Wheel lock for manual operation
Secured stand
Total lock for simultaneously locking the wheel and swivel housing.
User-friendly central lock
Simultaneous locking of more than one castor using a central actuation lever.
Award-winning design
Awarded with prestigious prizes by international juries.
Low-maintenance wheels
Thread guards for unobstructed operation with minimal cleaning effort.
Non-marking movement
Wheels with reduced abrasion and little cleaning requirement.
Reduced absences due to illness
Rapid return on investment through fewer illness-related absences.
