integral_assist
Integral assist
Order number:
900000052
EAN:
4031582550429
Product number:
ED44ETW150R36-32D30 D 9002 4xM6 270°
- Non-hazardous materials
- Tested quality
- Award-winning design
The Integral assist is a swivel castor with central, total or directional lock, specifically engineered for electromobility appl...
Details
Custom or high volume? Request a quote now.

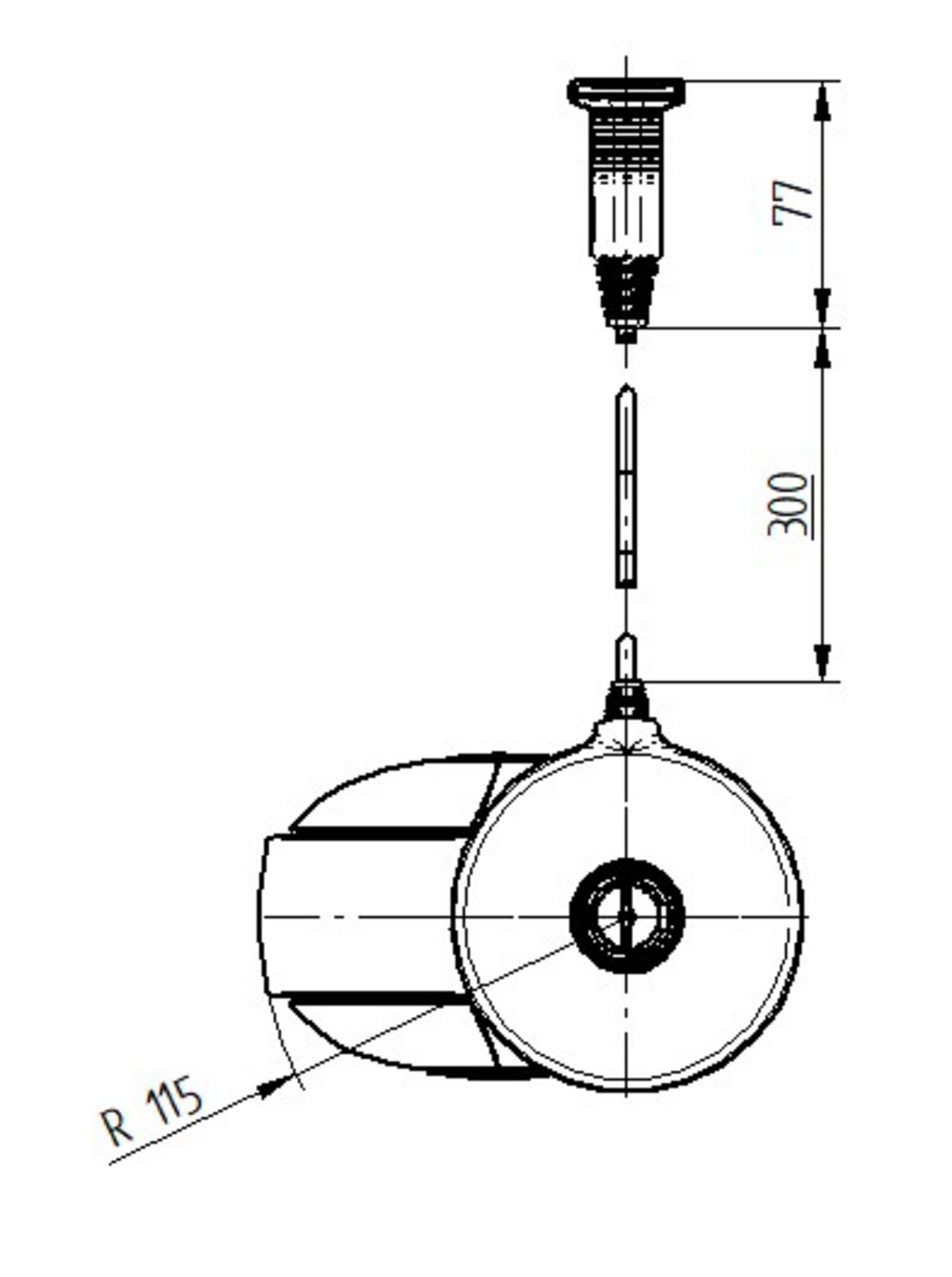

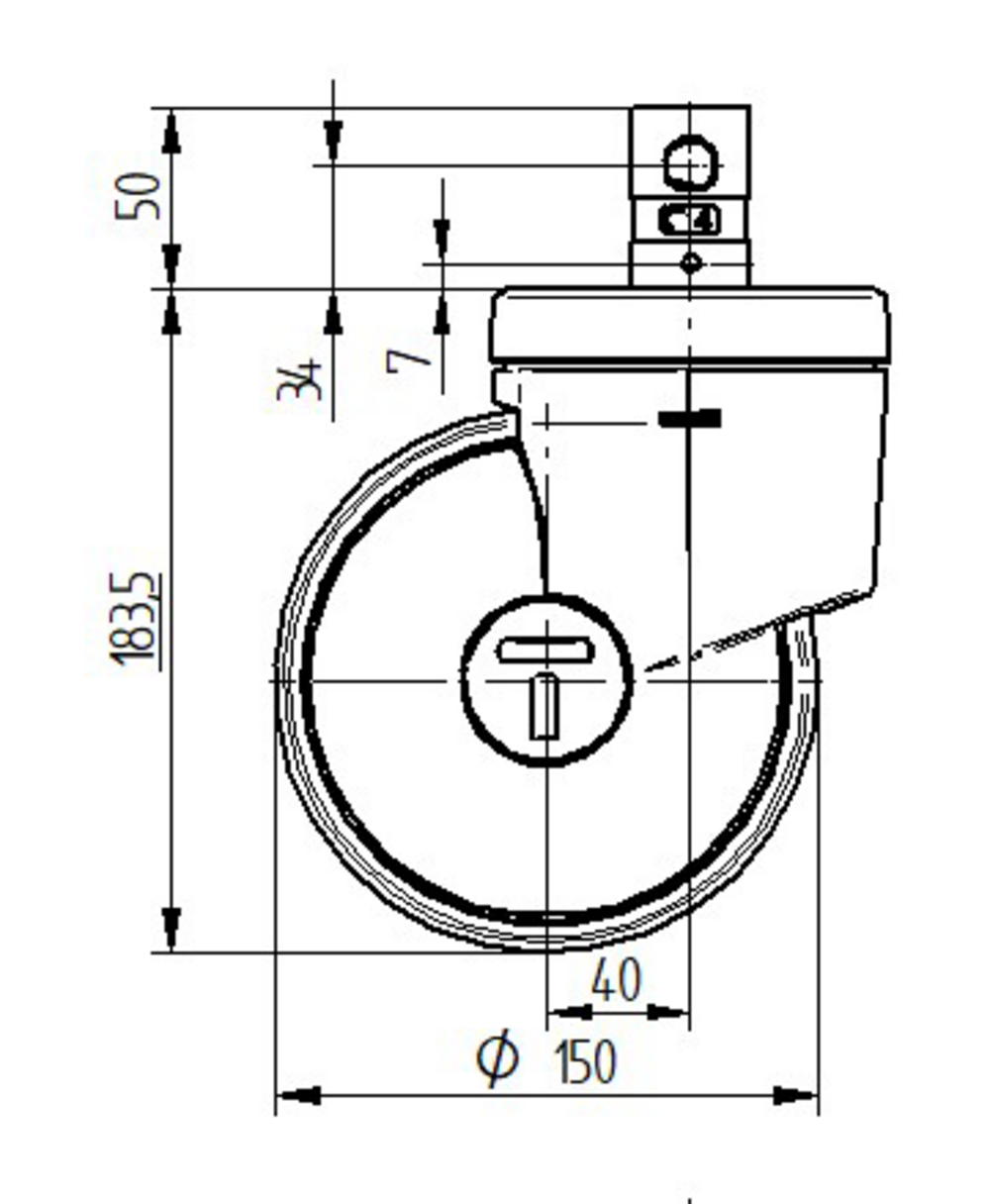

CAD files
You can download construction data for this product.
The Integral assist is a swivel castor with central, total or directional lock, specifically engineered for electromobility applications requiring reliable manoeuvrability and stability. This castor features a stem with cam hole for profile bars in short version, enabling seamless integration into medical and healthcare equipment. The wheel comprises a 150 mm diameter polyurethane tread that is casted for enhanced durability and consistent performance, whilst the body is constructed from steel and iron to ensure robust structural integrity. The Integral assist is ideally suited for deployment across diverse healthcare environments, including hospitals, nursing and retirement homes, where it supports critical applications such as anesthesia carts, medication carts, nursing carts, computer workstations on wheels, dialysis equipment, stretchers, ventilators, ultrasound systems, and imaging devices including C-Arms, CT scanners, MRI and X-Ray equipment. The directional lock mechanism provides operators with precise control, preventing unwanted movement whilst permitting smooth transitions between fixed and mobile positions, thereby enhancing both safety and operational efficiency in demanding clinical settings.
Roll performance
Movement noise
Attrition
Corrosion resistance
Awards
Article numbers
Drive Unit Actuator
Drive Unit Travel Motor
Core attributes
Fitting
Housing
Wheel
Red Dot Design Award
Red Dot Design Award
Special Features
Non-hazardous materials
Complies with RoHS and REACH regulations. Does not contain polycyclic aromatic carbons or chromium (VI).
Tested quality
Tested in our own laboratory for compliance with European standards.
Prevents unintended movement
Wheel lock for manual operation
Secured stand
Total lock for simultaneously locking the wheel and swivel housing.
User-friendly central lock
Simultaneous locking of more than one castor using a central actuation lever.
Award-winning design
Awarded with prestigious prizes by international juries.
Low-maintenance wheels
Thread guards for unobstructed operation with minimal cleaning effort.
Non-marking movement
Wheels with reduced abrasion and little cleaning requirement.
Reduced absences due to illness
Rapid return on investment through fewer illness-related absences.
