ICS
ICS
Order number:
990027148
EAN:
4031582309867
Product number:
5320XSX125S70-10x17 ~7001
- Non-hazardous materials
- Tested quality
- Colour matching
The ICS swivel castor features a threaded stem with hexagon neck, top fitting for secure mounting applications. The housing is c...
Details
Custom or high volume? Request a quote now.

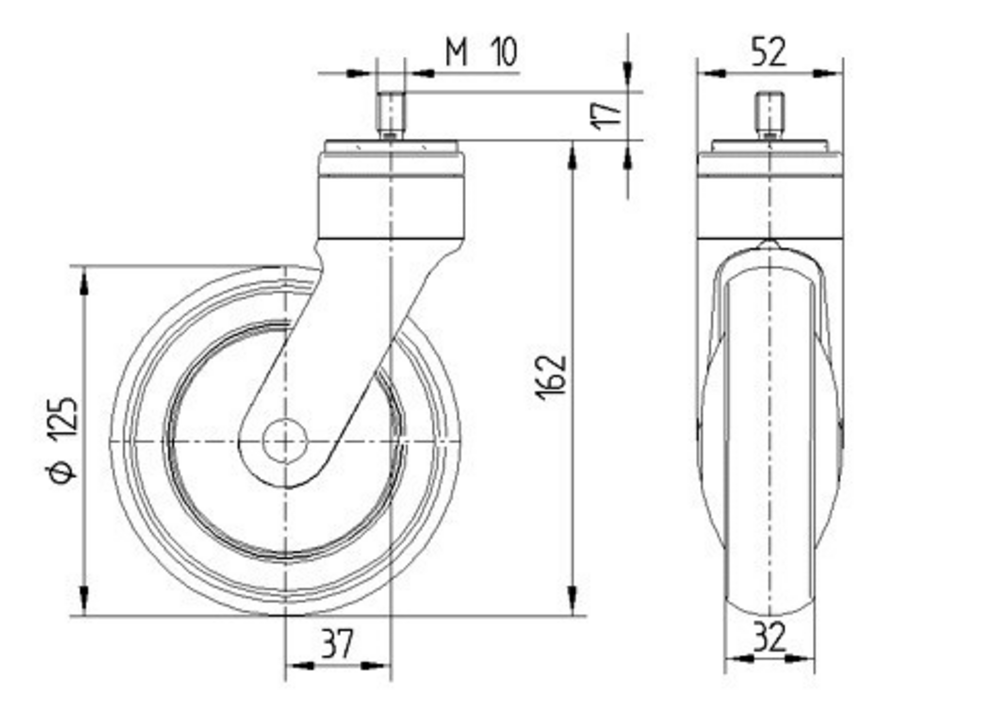

The ICS swivel castor features a threaded stem with hexagon neck, top fitting for secure mounting applications. The housing is constructed from durable polyamide material and incorporates a stem, swiveling bearing system that enables smooth directional changes under load. The wheel assembly comprises a polyamide, electric conductive body fitted with an injected polyurethane, electric-conductive tread that provides excellent grip whilst maintaining electrical conductivity throughout operation. The wheel runs on precision ball bearing, sealed units that ensure reliable performance and extended service life. With a wheel diameter of 125 mm and an overall height of 162 mm, this castor offers compact dimensions suitable for space-constrained installations. The dynamic load capacity reaches 100 kg at speeds up to 3 km/h, whilst the static load capacity extends to 200 kg, making it ideal for care beds and similar healthcare applications requiring both mobility and electrical safety.
Roll performance
Movement noise
Attrition
Corrosion resistance
Article numbers
Core attributes
Fitting
Housing
Wheel
IF Design Award
IF Design Award
Special Features
Non-hazardous materials
Complies with RoHS and REACH regulations. Does not contain polycyclic aromatic carbons or chromium (VI).
Tested quality
Tested in our own laboratory for compliance with European standards.
Colour matching
Colours can be adapted to match the product design
Award-winning design
Awarded with prestigious prizes by international juries.
Low-maintenance wheels
Thread guards for unobstructed operation with minimal cleaning effort.
Non-marking movement
Wheels with reduced abrasion and little cleaning requirement.
Ergonomically friendly use
Wheels with optimised roll resistance to lighten the load for the user.
Certified conductivity
Conductive version to protect users and electrical devices from electrostatic discharge.
Protective seal
Wheels with sealed bearings to protect against spray water and dirt.
