Accessory
Socket
EAN:
4031582090178
Product number:
R40-18x18 / 11
- Non-hazardous materials
- Tested quality
This Socket accessory features a synthetic socket with square design, engineered for castor applications requiring reliable load...
Details
Custom or high volume? Request a quote now.
CAD files
You can download construction data for this product.
Data sheets

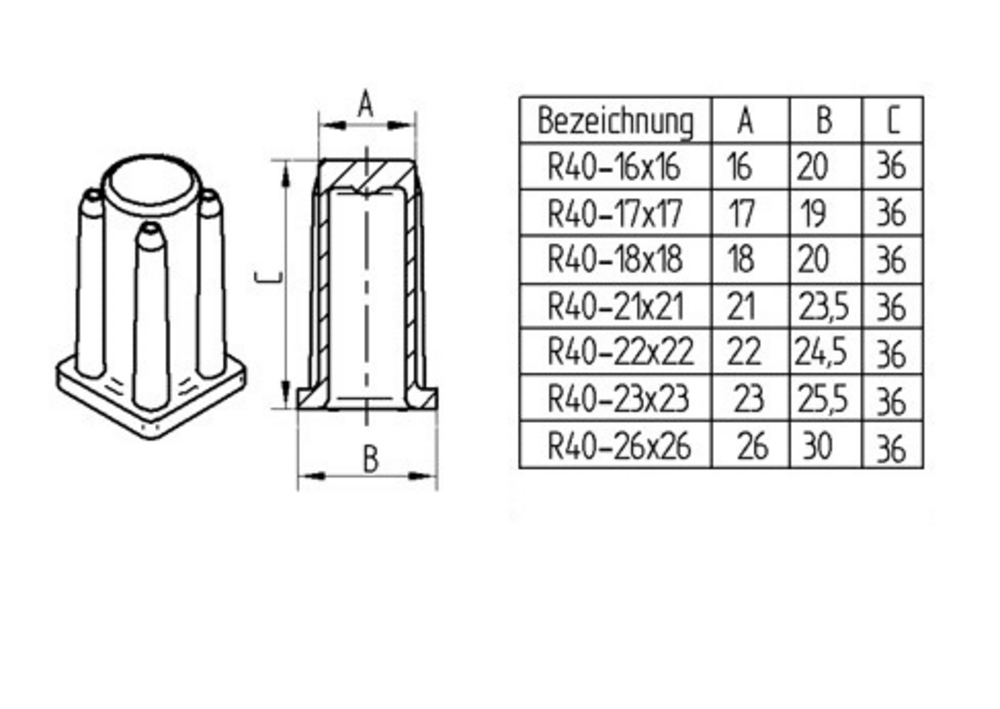

This Socket accessory features a synthetic socket with square design, engineered for castor applications requiring reliable load-bearing performance. The component measures 36 mm in overall height and weighs 0.01 kg, incorporating an 18 mm diameter bolt for secure mounting. Load capacity specifications include 40 kg dynamic loading at 3 km/h operational speed and 80 kg static loading, making it suitable for medium-duty industrial applications.
Roll performance
Movement noise
Attrition
Corrosion resistance
Article numbers
Core attributes
Fitting
Special Features
Non-hazardous materials
Complies with RoHS and REACH regulations. Does not contain polycyclic aromatic carbons or chromium (VI).
Tested quality
Tested in our own laboratory for compliance with European standards.
