Stainless Steel
Stainless Steel Castors
Swivel castor with total lock 100 mm
The Alpha stainless is a swivel castor with total lock, designed for demanding industrial and hygienic environments. The fitting is a small rectangular plate, which provides a compact and secure mounting interface for attaching the castor to the equipment. The housing is manufactured from heavy stainless steel and incorporates a swivel bearing with two ball races, ensuring smooth rotation and stable directional control under load. The wheel has a diameter of 100 mm and features a body made of polyamide, while the tread material is identical with the wheel body, providing consistent wear characteristics and reliable rolling behaviour. The wheel is fitted with a stainless roller bearing that supports low-friction operation and enhances durability. The overall height of the castor is 128 mm, allowing it to be integrated into a range of carts, containers, and equipment frames with defined clearance requirements. The static load capacity is 400 kg, while the dynamic load capacity is 200 kg at a travel speed of 4 km/h. The product is suitable for applications including catering carts and meal delivery systems, container construction, electronic systems and clean-room technology, fire fighting technology and fire protection, machine construction, and transport equipment.
Swivel castor 125 mm
The Alpha stainless swivel castor features a small rectangular plate fitting for secure mounting applications. The housing is constructed from stainless steel, heavy grade material and incorporates two ball races for the swivel bearing mechanism, ensuring smooth directional movement and enhanced durability. The wheel comprises a polyamide body fitted with an elastic tyre, non-marking, vulcanised tread material, and is equipped with a roller bearing, stainless for optimal performance and corrosion resistance. The wheel diameter measures 125mm, whilst the overall height of the complete assembly is 155mm. Load specifications include a dynamic capacity of 250kg at speeds up to 4km/h and a static load capacity of 500kg, making it suitable for demanding applications including catering carts and meal delivery systems, container construction, electronic systems and clean-room technology, fire fighting technology and fire protection, machine construction, and transport equipment.
Fixed castor 160 mm
The Alpha stainless is a fixed castor designed for demanding industrial applications, featuring a medium rectangular plate fitting that ensures secure and stable mounting to equipment and transport systems. The housing is constructed from heavy-duty stainless steel, providing exceptional corrosion resistance and durability in challenging environments including catering carts and meal delivery systems, container construction, electronic systems and clean-room technology, fire fighting technology and fire protection, machine construction, and transport equipment. The castor is equipped with a 160 mm diameter wheel manufactured from polyamide, where the tread material is identical with the wheel body, ensuring consistent performance and wear characteristics throughout the product's operational life. The wheel operates on a plain bearing system, which delivers reliable and maintenance-efficient rotation under continuous use. The overall height of the castor assembly measures 200 mm, providing appropriate clearance for most industrial applications. The castor demonstrates robust load-bearing capabilities, with a static load capacity of 1000 kg and a dynamic load capacity of 500 kg at a speed of 4 km/h, making it suitable for both stationary support and mobile transport applications where stability and strength are critical requirements.
Swivel castor 125 mm
The Agila stainless swivel castor features a bolt hole fitting system that allows mounting with standard screws of any length, providing flexible installation options. The housing is constructed from medium-grade stainless steel and incorporates two ball races for the swivel bearing mechanism, ensuring smooth directional movement and enhanced durability. The wheel comprises a polypropylene body with a thermoplastic rubber tread and plain bearing system, delivering a wheel diameter of 125 mm for optimal mobility across various surfaces. With an overall height of 160 mm, this castor offers compact integration whilst maintaining robust performance characteristics. The load capacity specifications include a dynamic load rating of 100 kg at speeds up to 3 km/h and a static load capacity of 200 kg, making it ideally suited for demanding applications including catering carts and meal delivery systems as well as professional cleaning carts where reliability and hygiene standards are paramount.

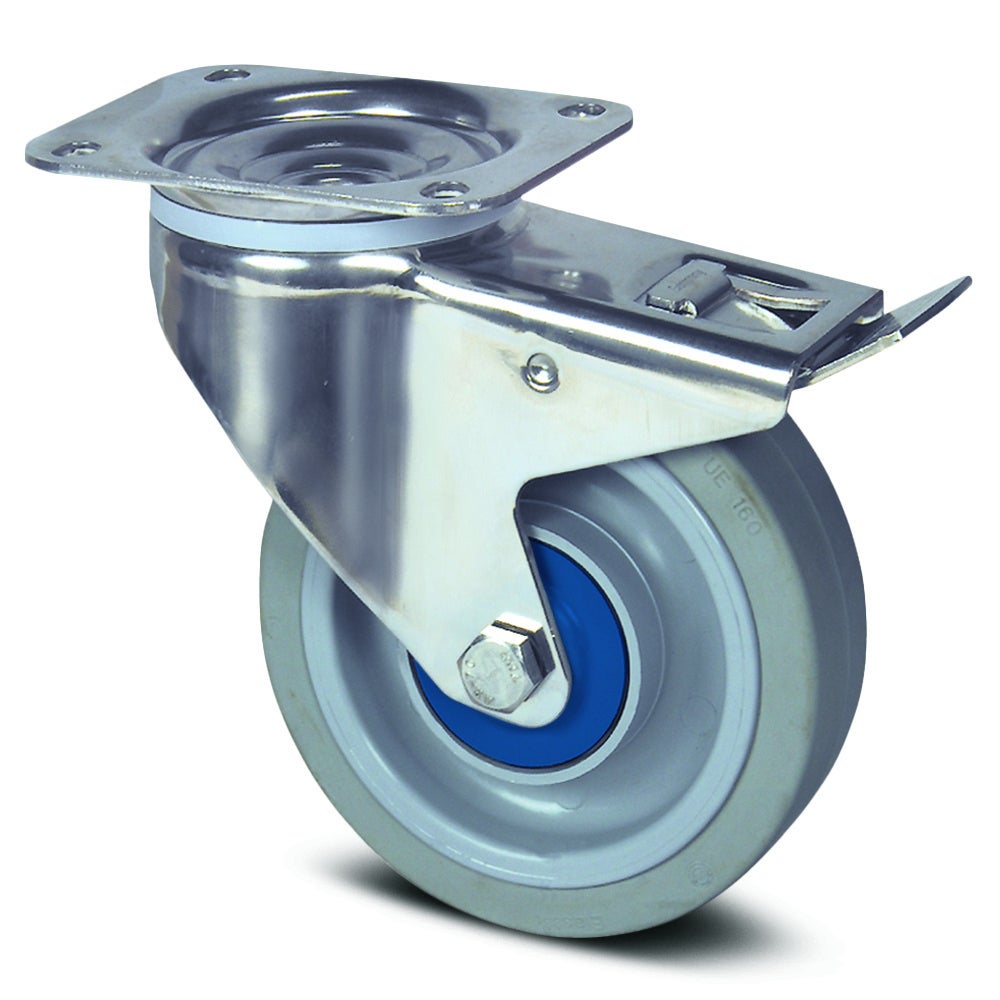

Swivel castor with total lock 125 mm
The Agila stainless is a swivel castor with total lock, designed for demanding mobile equipment. It is fitted with a bolt hole fitting, and castors can be mounted with standard screws of any length. The housing is manufactured from stainless steel, medium, and its swivel bearing comprises two ball races to ensure smooth rotation. The total lock function secures the castor in a fixed position, preventing both rotation and swivelling. The wheel has a diameter of 125 mm and runs on a plain bearing, with a thermoplastic rubber tread and a polypropylene body. The overall height of the castor is 160 mm. The static load capacity is 200 kg, while the dynamic load capacity is 100 kg at a speed of 3 km/h. Typical applications include catering carts and meal delivery systems, as well as professional cleaning carts.
Swivel castor 125 mm
The Agila stainless swivel castor features a rectangular plate fitting for secure mounting to equipment bases. The housing is constructed from medium-grade stainless steel and incorporates a robust two ball races swivel bearing system for smooth directional movement. The wheel comprises a polypropylene body with a thermoplastic rubber tread, providing excellent grip and floor protection, whilst the precision ball bearing in stainless steel ensures reliable rotation with minimal maintenance requirements. With a wheel diameter of 125 mm, the castor has an overall height of 160 mm. The dynamic load capacity is rated at 100 kg at speeds up to 3 km/h, with a static load capacity of 200 kg. This castor is specifically designed for demanding applications including catering carts and meal delivery systems, as well as professional cleaning carts where hygiene and durability are paramount.
Swivel castor with central, total lock 160 mm
Alpha is a swivel castor with central, total lock, designed for engineering and industrial applications where reliable positioning is required. The fitting is a plate with central locking, which secures the castor in place and allows the mounting to be fixed to the load-bearing structure. The housing is manufactured from stainless steel, heavy, and incorporates two ball races in its swivel bearing, enabling smooth and precise rotation about the vertical axis. The wheel has a diameter of 160 mm and runs on a precision ball bearing, stainless, which ensures low rolling resistance and long service life. Its tread is an elastic tyre, non-marking and vulcanised, providing good grip and protecting floor surfaces, while the body of the wheel is made from polyamide, combining low weight with high mechanical strength. The overall height of the castor is 200 mm, measured from the mounting surface to the floor contact point, which allows it to be integrated easily into existing equipment and trolley designs. The static load capacity is 600 kg, the maximum load the castor can bear at rest without deformation. The dynamic load capacity is 300 kg at a travel speed of 4 km/h, which defines the permissible load during movement.
Swivel castor with central, total lock 160 mm
The Alpha is a swivel castor with central, total lock, suited to demanding industrial and commercial applications. The fitting is a plate with central locking, securing the castor in position when required. The housing is manufactured from heavy stainless steel and incorporates a swivel bearing with two ball races, enabling smooth and stable rotation. The wheel has a diameter of 160 mm and is equipped with a precision ball bearing, sealed, which protects the internal components from dust and moisture. The tread is an elastic tyre, non-marking, vulcanised, while the body is made from polyamide. The overall height of the castor is 200 mm. The static load capacity is 500 kg, and the dynamic load capacity is 250 kg at a speed of 4 km/h. These ratings should guide selection, particularly where dynamic loads are involved.
Swivel castor 125 mm
The Alpha stainless swivel castor features a small rectangular plate fitting for secure mounting applications. The housing is constructed from stainless steel, heavy grade material and incorporates two ball races for the swivel bearing mechanism, ensuring smooth directional movement and enhanced durability. The wheel comprises a polyamide body fitted with an elastic tyre, non-marking, vulcanised tread material, mounted on a precision ball bearing, stainless for optimal performance and corrosion resistance. The wheel diameter measures 125mm, whilst the overall height of the complete assembly is 155mm. Load specifications include a dynamic capacity of 250kg at speeds up to 4km/h and a static load capacity of 500kg, making this castor suitable for demanding applications including catering carts and meal delivery systems, container construction, electronic systems and clean-room technology, fire fighting technology and fire protection, machine construction, and transport equipment.
Swivel castor 80 mm
The Alpha stainless is a swivel castor designed for demanding industrial applications. The castor features a bolt hole fitting for secure mounting to equipment. The housing is constructed from heavy-duty stainless steel and incorporates a precision swivel bearing system with two ball races, ensuring smooth rotation and enhanced durability in corrosive environments. The wheel comprises a polyamide body with an identical polyamide tread material, providing excellent chemical resistance and low rolling resistance. The wheel operates on a plain bearing system and has a diameter of 80 mm. The castor has an overall height of 108 mm, making it suitable for medium-duty mobile equipment. Load specifications include a dynamic load capacity of 150 kg at speeds up to 4 km/h and a static load capacity of 300 kg, providing reliable performance under varying operational conditions.
Swivel castor 125 mm
The Alpha stainless is a swivel castor designed for demanding industrial applications. The fitting features a bolt hole configuration for secure mounting to equipment. The housing is constructed from heavy-duty stainless steel and incorporates a precision swivel bearing system with two ball races, ensuring smooth rotation and enhanced durability in corrosive environments. The wheel comprises a 125 mm diameter polyamide body with matching polyamide tread material, providing excellent chemical resistance and low rolling resistance. The wheel operates on a plain bearing system for reliable performance. The castor has an overall height of 155 mm, making it suitable for medium-duty mobile equipment. Load specifications include a dynamic capacity of 150 kg at speeds up to 4 km/h and a static load capacity of 300 kg, delivering robust performance for industrial transport applications.
Swivel castor with total lock 80 mm
The Alpha stainless is a swivel castor with total lock, designed for demanding industrial use. The total lock function immobilises the castor so that the equipment remains stable when stationary. The fitting is a bolt hole, which allows secure attachment to the equipment frame. The housing is made from heavy stainless steel and incorporates two ball races for the swivel bearing. The wheel has a diameter of 80 mm and runs on a plain bearing, with a polyamide body and a tread material identical with the wheel body. The overall height is 108 mm. Load capacity is 300 kg static and 150 kg dynamic at a speed of 4 km/h. It is suited to catering carts and meal delivery systems, container construction, electronic systems and clean-room technology, fire fighting and fire protection, machine construction and transport equipment.

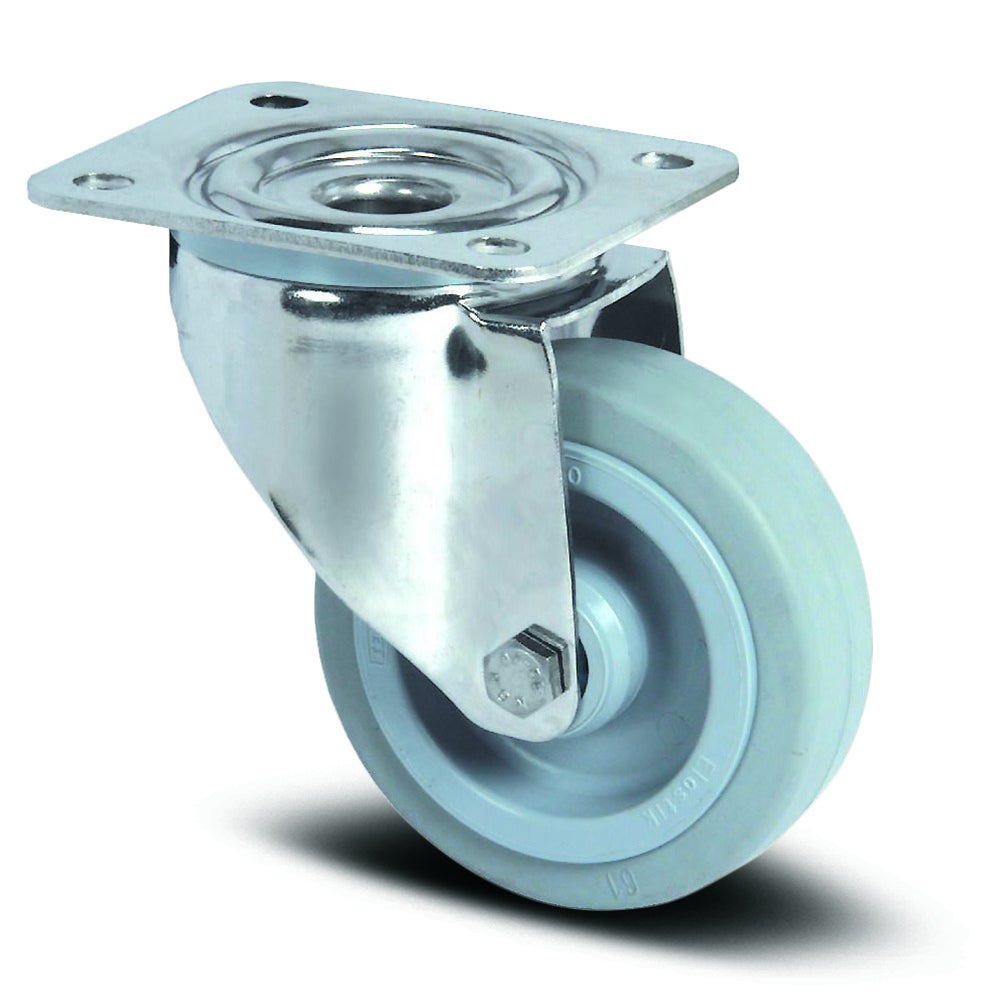

Swivel castor 100 mm
The Alpha stainless swivel castor features a small rectangular plate fitting for secure mounting applications. The housing is constructed from stainless steel, heavy grade material and incorporates two ball races for the swivel bearing mechanism, ensuring smooth directional movement and enhanced durability. The wheel comprises a polyamide body with tread material identical to the wheel body, providing consistent performance characteristics, whilst utilising a plain bearing system for reliable rotation. The wheel diameter measures 100mm with an overall height of 128mm. Load capacity specifications include a dynamic rating of 200kg at 4km/h operating speed and a static load capacity of 400kg. This castor is specifically designed for demanding applications including catering carts and meal delivery systems, container construction, electronic systems and clean-room technology, fire fighting technology and fire protection, machine construction, and transport equipment where corrosion resistance and reliable performance are essential requirements.
Swivel castor with total lock 100 mm
The Alpha stainless is a swivel castor with total lock designed for demanding industrial and hygienic use. It is fitted with a small rectangular plate, providing a compact and secure mounting interface. The housing is made of stainless steel, heavy, and its swivel bearing features two ball races for smooth, precise rotation. The wheel, 100 mm in diameter, has a roller bearing, stainless, and an elastic tire, non-marking, vulcanized tread on a polyamide body. The overall height of the castor is 128 mm. The static load capacity is 320 kg, and the dynamic load capacity is 160 kg at a speed of 4 km/h. Suitable applications include catering carts and meal delivery systems, container construction, electronic systems and clean-room technology, fire fighting technology and fire protection, machine construction, and transport equipment.
Swivel castor with total lock 100 mm
Alpha stainless is a swivel castor with total lock, engineered for demanding industrial and commercial environments. The fitting is a small rectangular plate, providing a compact and secure mounting interface for the castor. The housing is manufactured from heavy stainless steel and incorporates two ball races in its swivel bearing, which ensures smooth, reliable rotation and precise steering under load. The wheel has a diameter of 100 mm and runs on a plain bearing, with a tread made from a material identical to the wheel body, and the wheel body itself is made from polyamide. The overall height of the castor is 128 mm, measured from the mounting surface to the top of the housing. The castor offers a static load capacity of 400 kg, while its dynamic load capacity is 200 kg at a travel speed of 4 km/h. Typical applications include catering carts and meal delivery systems, container construction, electronic systems and clean-room technology, fire fighting technology and fire protection, machine construction, and transport equipment.
Swivel castor with total lock 125 mm
The Alpha stainless is a swivel castor with total lock, engineered for demanding industrial and hygienic environments where reliable positioning and corrosion resistance are required. The fitting is a small rectangular plate, providing a compact and secure mounting interface. The housing is made of heavy stainless steel and incorporates a swivel bearing with two ball races. The 125 mm wheel features a sealed precision ball bearing, an elastic, non-marking, vulcanised tyre tread and a polyamide body. The overall height is 155 mm, a key dimension for installation planning. Load capacity is 500 kg static and 250 kg dynamic at 4 km/h. Suitable applications include catering carts and meal delivery systems, container construction, electronic systems and clean-room technology, fire fighting and fire protection, machine construction and transport equipment.
Swivel castor with total lock 125 mm
Alpha stainless is a swivel castor with total lock, designed for demanding industrial and commercial use. The fitting is a small rectangular plate, which provides a compact and secure means of mounting the castor to the equipment or structure. The housing is manufactured from heavy stainless steel and incorporates a swivel bearing with two ball races, ensuring smooth, low-friction rotation and reliable directional control. The wheel has a diameter of 125 mm and features a plain bearing. Its tread material is identical with the wheel body, which is made from polyamide, giving a uniform and consistent running surface. The overall height of the castor is 155 mm, measured from the mounting plate to the base of the wheel. The castor offers a static load capacity of 400 kg and a dynamic load capacity of 200 kg at a travel speed of 4 km/h. Its robust construction makes it suitable for catering carts and meal delivery systems, container construction, electronic systems and clean-room technology, fire fighting technology and fire protection, machine construction, and transport equipment.
Fixed castor 100 mm
The Alpha stainless is a fixed castor designed for demanding industrial applications including catering carts and meal delivery systems, container construction, electronic systems and clean-room technology, fire fighting technology and fire protection, machine construction, and transport equipment. The castor is fitted with a small rectangular plate that provides secure attachment to equipment and machinery. The housing is manufactured from heavy-duty stainless steel, ensuring exceptional corrosion resistance and durability in challenging environments where hygiene and material integrity are paramount. The wheel features a 100 mm diameter and is constructed from polyamide with an identical tread material, providing reliable performance across varied floor surfaces. The wheel is equipped with a plain bearing that facilitates smooth rotation whilst maintaining the structural integrity of the castor assembly. The overall height of the castor measures 128 mm, allowing for precise integration into equipment designs with specific spatial constraints. The load capacity specifications indicate a static load rating of 400 kg, enabling the castor to support substantial stationary loads, whilst the dynamic load capacity reaches 200 kg at a speed of 4 km/h, making it suitable for mobile applications requiring consistent performance during transport operations. This combination of robust construction, high load capacity, and corrosion-resistant materials makes the Alpha stainless an ideal choice for professional and industrial environments demanding reliability and longevity.
Fixed castor 125 mm
The Alpha stainless is a fixed castor designed for demanding industrial applications, featuring a small rectangular plate fitting that ensures secure and straightforward installation on various equipment and transport systems. The housing is constructed from heavy-duty stainless steel, providing exceptional corrosion resistance and durability in challenging environments including catering carts and meal delivery systems, container construction, electronic systems and clean-room technology, fire fighting technology and fire protection, machine construction, and transport equipment. The castor is equipped with a 125 mm diameter wheel featuring a precision ball bearing that is sealed to prevent contamination and ensure smooth operation under continuous use. The wheel tread comprises an elastic, non-marking vulcanised material mounted on a polyamide body, which effectively minimises marking on sensitive floor surfaces whilst maintaining excellent load distribution and manoeuvrability. With an overall height of 155 mm, this castor provides optimal clearance and stability for integration into diverse equipment configurations. The load capacity specifications indicate a static load rating of 500 kg, ensuring reliable performance under stationary conditions, whilst the dynamic load capacity reaches 250 kg when the castor is in motion at speeds up to 4 km/h, making it suitable for both stationary and mobile applications requiring robust, corrosion-resistant castor solutions in hygienic and industrial environments.
Fixed castor 125 mm
The Alpha stainless is a fixed castor designed for demanding industrial applications, featuring a small rectangular plate fitting that ensures secure and stable mounting to equipment and transport systems. The housing is constructed from heavy-duty stainless steel, providing exceptional corrosion resistance and durability in challenging environments including catering carts and meal delivery systems, container construction, electronic systems and clean-room technology, fire fighting technology and fire protection, machine construction, and transport equipment. The castor is equipped with a 125 mm diameter polyamide wheel, which features an identical tread material to the wheel body for consistent performance and longevity. The wheel is supported by a plain bearing that facilitates smooth rotation whilst maintaining structural integrity. The overall height of the castor assembly measures 155 mm, making it suitable for integration into various equipment configurations. The load capacity specifications indicate a static load rating of 500 kg, ensuring robust performance under stationary conditions, whilst the dynamic load capacity reaches 250 kg at operational speeds of 4 km/h, making this castor ideal for applications requiring reliable mobility and stability in professional and industrial settings.
Fixed castor 100 mm
The Alpha stainless is a fixed castor designed for demanding industrial applications, featuring a small rectangular plate fitting that ensures secure and straightforward installation onto equipment and transport systems. The housing is constructed from heavy-duty stainless steel, providing exceptional corrosion resistance and durability in challenging environments including catering carts and meal delivery systems, container construction, electronic systems and clean-room technology, fire fighting technology and fire protection, machine construction, and transport equipment. The castor is equipped with a 100 mm diameter wheel featuring a precision ball bearing that is sealed to prevent contamination and ensure smooth operation under continuous use. The wheel tread comprises an elastic, non-marking vulcanised material mounted on a polyamide body, which combines resilience with the ability to traverse various floor surfaces without leaving marks, making it particularly suitable for sensitive environments. The overall height of the castor is 128 mm, providing appropriate ground clearance for most industrial applications. The load capacity specifications indicate a static load rating of 320 kg, enabling the castor to support substantial stationary loads, whilst the dynamic load capacity is rated at 160 kg when operating at speeds up to 4 km/h, ensuring reliable performance during transport and manoeuvring operations. This combination of robust materials, precision engineering, and substantial load ratings makes the Alpha stainless an ideal choice for applications requiring both strength and reliability in corrosive or hygiene-sensitive environments.
Fixed castor 80 mm
The Alpha stainless is a fixed castor designed for demanding industrial applications including catering carts and meal delivery systems, container construction, electronic systems and clean-room technology, fire fighting technology and fire protection, machine construction, and transport equipment. The castor is fitted with a small rectangular plate that provides secure attachment to equipment and machinery. The housing is constructed from heavy-duty stainless steel, ensuring exceptional corrosion resistance and durability in challenging environments where hygiene and material integrity are paramount. The wheel features an 80 mm diameter and is manufactured from polyamide, with the tread material being identical to the wheel body for consistent performance and wear characteristics. The wheel is supported by a plain bearing that facilitates smooth rotation and reliable operation under continuous use. The overall height of the castor assembly measures 108 mm, providing a compact profile suitable for integration into various equipment designs. The castor demonstrates impressive load-bearing capabilities, with a static load capacity of 400 kg and a dynamic load capacity of 200 kg at speeds up to 4 km/h, making it suitable for both stationary and mobile applications requiring robust performance and reliability in professional and industrial settings.
Swivel castor 80 mm
The Alpha stainless swivel castor features a small rectangular plate fitting for secure mounting applications. The housing is constructed from stainless steel, heavy grade material and incorporates two ball races for the swivel bearing mechanism, ensuring smooth directional movement and enhanced durability. The wheel comprises a polyamide body with tread material identical to the wheel body, providing consistent performance characteristics, whilst utilising a plain bearing system for reliable rotation. The wheel diameter measures 80mm with an overall height of 108mm. Load capacity specifications include a dynamic load rating of 200kg at 4km/h operating speed and a static load capacity of 400kg. This castor is specifically designed for demanding applications including catering carts and meal delivery systems, container construction, electronic systems and clean-room technology, fire fighting technology and fire protection, machine construction, and various transport equipment installations.
Frequently Asked Questions
Advantages of Stainless Steel Castors
Stainless steel castors are designed for environments where durability and corrosion resistance are critical. Built from high-quality stainless steel, they withstand moisture, chemicals, and frequent cleaning, making them ideal for industries with strict hygiene requirements or outdoor use. Whether in food production, healthcare, or industrial settings, stainless steel castors provide smooth, reliable movement while maintaining their strength and appearance over time.
TENTE stainless steel castors offer various benefits:
Corrosion Resistance - Stainless steel castors are highly resistant to rust and corrosion, even when exposed to moisture, cleaning agents, or harsh environments.
Imrpoved Hygiene - Their smooth, non-porous surfaces can be cleaned and disinfected easily, helping to maintain strict hygiene standards.
Proven Strength - Stainless steel castors are strong and can handle heavy loads without compromising performance. They offer both reliability and stability for demanding applications.
Versatility - Available with a range of wheel materials, including heat-resistant rubber and polyurethane, TENTE stainless steel castors adapt to different surfaces and requirements.
Heat Resistance - Stainless steel castors with heat-resistant wheels maintain their shape, load capacity, and smooth movement, even under extreme conditions.
Types of Stainless Steel Castors
Stainless steel castors are available in different designs to meet the specific requirements of a wide range of applications — from hygiene-critical food production to heavy-duty industrial use. Each type is built to provide unique advantages, combining corrosion resistance and washability with reliable performance and smooth mobility. Below are some of the most common types of stainless steel castors and their key benefits:
Heavy Duty Stainless Steel Castors
Heavy duty stainless steel castors are built for demanding applications that require both strength and corrosion resistance. Made from robust stainless steel, they ensure smooth, reliable movement even under heavy loads of up to 500 kg. These castors are ideal for industrial, food production, and logistics environments where hygiene and durability are essential.
High Temperature Stainless Steel Castors
These castors are designed to withstand extreme heat, making them perfect for bakeries, autoclaves, and other high-temperature applications. Featuring heat-resistant wheel materials like duroplastic or heat-resistant rubber, they maintain smooth rolling and structural integrity even up to 250°C or 280°C, with short-term peaks up to 310°C.
Stainless Steel Swivel Castors
Stainless steel swivel castors offer full 360° rotation for effortless maneuverability. They combine corrosion resistance with smooth, flexible movement, making them ideal for applications in healthcare, catering, and cleanrooms.
Stainless Steel Castors with Brakes
These castors combine reliable locking functionality with the corrosion resistance and hygiene benefits of stainless steel. Their smooth, easy-to-clean surfaces make them ideal for environments that require frequent washing, such as food processing or medical facilities, while the integrated locking mechanism ensures equipment remains safely in place when needed.
Fields of Application for Stainless Steel Castors
Stainless steel castors are used in a wide range of industries where hygiene, durability, and corrosion resistance are essential. In healthcare, they are frequently found on sterilisation carts, clean room carts, medication trolleys, and nursing carts, where reliable movement and easy cleaning are crucial. In industrial settings, stainless steel castors are ideal for transport equipment, production and platform trolleys, and professional cleaning carts. Their resistance to moisture and chemicals makes them well-suited for harsh environments like food processing or chemical manufacturing. In furniture and mobile applications, they are used on catering carts, roll cages, meal delivery systems, and other equipment that demands a combination of hygiene, durability, and smooth mobility. No matter the segment, stainless steel castors offer smooth mobility and consistent performance, even under tough conditions.
