Wheel 400 mm
Puretech air
EAN:
4031582394078
Product number:
PPO400x100-Ø20 HL74 4PR TFR
- Non-hazardous materials
- Tested quality
- Quiet rolling
The Puretech air wheel is a castor wheel engineered with a polypropylene body and plain bearing construction, designed to delive...
Details
Custom or high volume? Request a quote now.
Data sheets

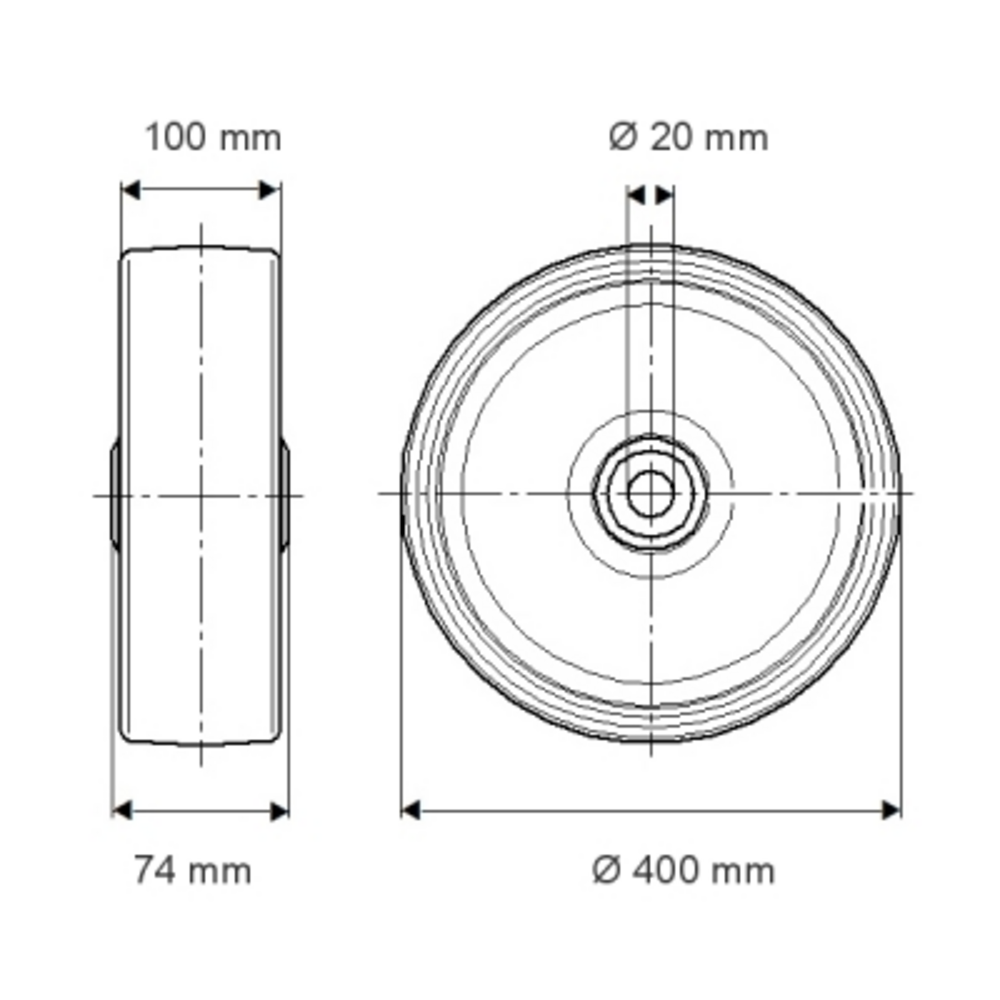

The Puretech air wheel is a castor wheel engineered with a polypropylene body and plain bearing construction, designed to deliver reliable performance in demanding applications. This wheel features a diameter of 400 mm with a tread width of 100 mm, utilising a pneumatic tyre with line profile for enhanced grip and shock absorption. The hub length measures 74 mm, whilst the axle incorporates a 20 mm hole diameter for secure mounting. The wheel demonstrates a static load capacity of 280 kg and a dynamic load capacity of 140 kg at a speed of 3 km/h, making it suitable for both stationary and mobile castor applications requiring robust load-bearing capabilities.
Roll performance
Movement noise
Attrition
Corrosion resistance
Article numbers
Core attributes
Wheel
Special Features
Non-hazardous materials
Complies with RoHS and REACH regulations. Does not contain polycyclic aromatic carbons or chromium (VI).
Tested quality
Tested in our own laboratory for compliance with European standards.
Quiet rolling
Soft wheel versions for a quiet working environment.
Low-vibration transport
Extra soft wheels with good shock absorbing properties.
