Wheel 125 mm
Puretech
EAN:
4031582410822
Product number:
DRR125x37-Ø12
- Non-hazardous materials
- Tested quality
The Puretech Wheel is a precision castor wheel engineered for industrial applications, featuring a 125 mm diameter with a 37 mm ...
Details
Custom or high volume? Request a quote now.
Data sheets

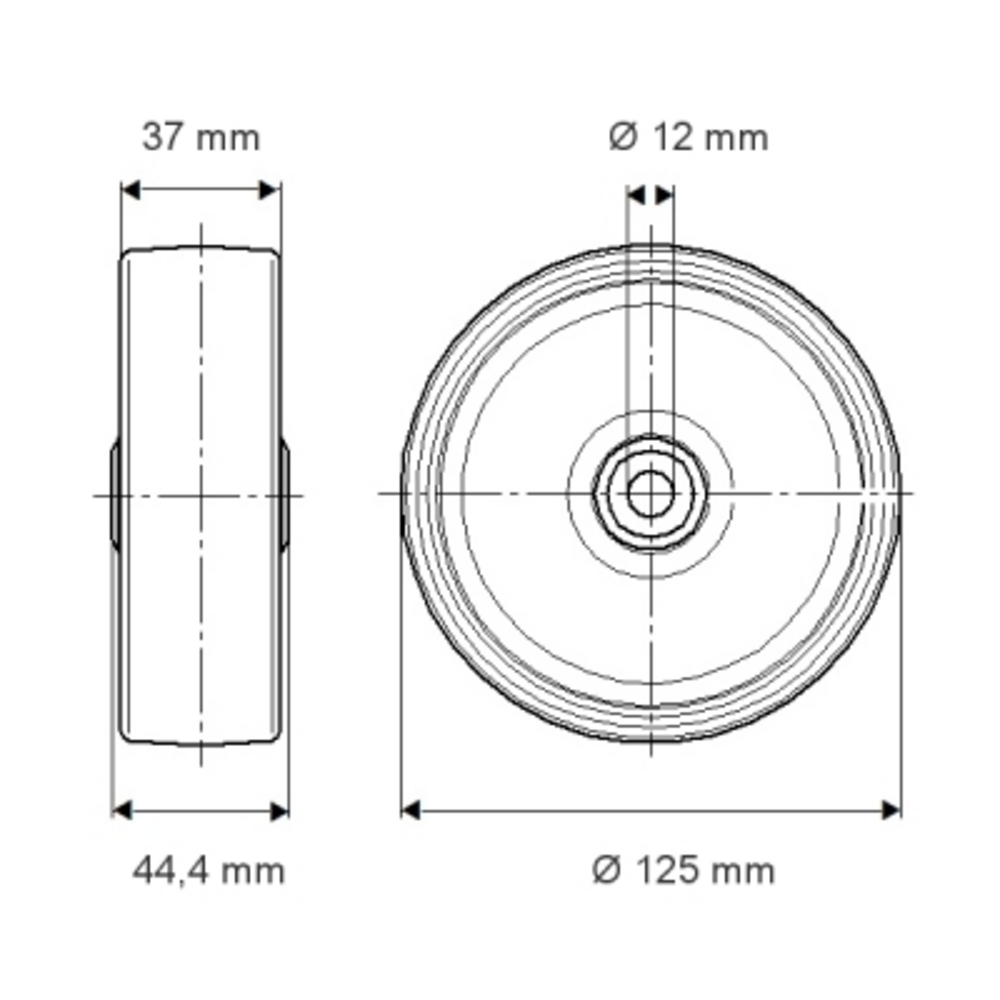

The Puretech Wheel is a precision castor wheel engineered for industrial applications, featuring a 125 mm diameter with a 37 mm width wound tread made of canvas and phenolic resin. The wheel body is constructed from sheet steel and incorporates a roller bearing for smooth operation. The hub measures 44.4 mm in length, whilst the axle features a 12 mm hole diameter for secure mounting. This wheel is rated for a static load capacity of 200 kg and a dynamic load capacity of 100 kg at speeds up to 4 km/h, making it suitable for demanding material handling and transport applications where reliability and durability are essential requirements.
Roll performance
Movement noise
Attrition
Corrosion resistance
Article numbers
Core attributes
Wheel
Special Features
Non-hazardous materials
Complies with RoHS and REACH regulations. Does not contain polycyclic aromatic carbons or chromium (VI).
Tested quality
Tested in our own laboratory for compliance with European standards.
