Linea light
Linea light
EAN:
4031582420548
Product number:
5925PJI075S70-10x15/10 scan RAL9002
- Non-hazardous materials
- Tested quality
- Colour matching
The Linea light swivel castor with wheel brake features a threaded stem with hexagon neck, top fitting for secure mounting appli...
Details
Custom or high volume? Request a quote now.

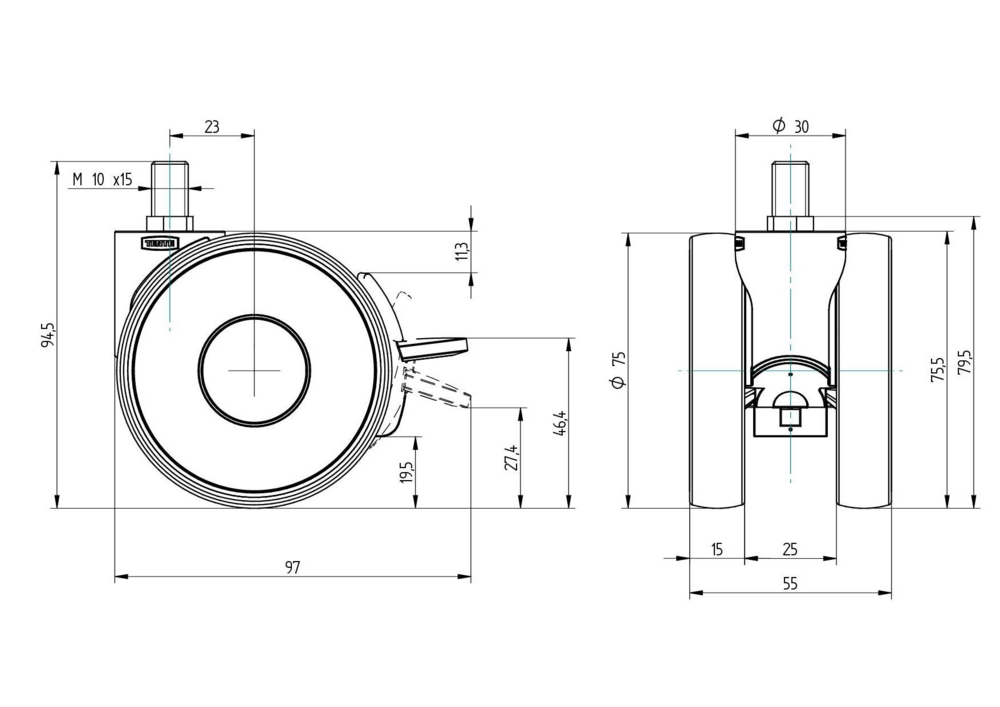

The Linea light swivel castor with wheel brake features a threaded stem with hexagon neck, top fitting for secure mounting applications. The housing is constructed from durable polyamide material and incorporates a stem, swiveling bearing system for smooth directional changes. The wheel assembly consists of a polypropylene body with thermoplastic rubber tread material, providing excellent grip and floor protection, whilst utilising a plain bearing with spacer tube for reliable rotation. The wheel measures 75 mm in diameter, contributing to an overall height of 79.5 mm. Load capacity specifications include a dynamic rating of 30 kg at speeds up to 3 km/h and a static load capacity of 60 kg. This castor is ideally suited for medical equipment including anaesthesia carts, dialysis carts, C-arms, CT scanners, MRI and X-ray equipment, ventilators and ultrasound machines, as well as office furniture, catering carts, computers on wheels, and professional cleaning carts in hospitals and nursing facilities.
Roll performance
Movement noise
Attrition
Corrosion resistance
Article numbers
Core attributes
Fitting
Housing
Wheel
Special Features
Non-hazardous materials
Complies with RoHS and REACH regulations. Does not contain polycyclic aromatic carbons or chromium (VI).
Tested quality
Tested in our own laboratory for compliance with European standards.
Prevents unintended movement
Wheel lock for manual operation
Colour matching
Colours can be adapted to match the product design
Award-winning design
Awarded with prestigious prizes by international juries.
User-friendly colour scheme
Green kickstop pedal for directional lock and red kickstop pedal for total lock.
Non-marking movement
Wheels with reduced abrasion and little cleaning requirement.
Optimised manoeuvrability
Twin wheel castor with high manoeuvrability due to differential effect.
Individual branding
Engraved, casted or printed.
Fascinating picture prints
Entire wheel caps printable with almost every theme.
