Wheel 200 mm
Novatech
EAN:
4031582472301
Product number:
ITP200x50-Ø20 antistatique 92shA plat
- Non-hazardous materials
- Tested quality
- Non-marking movement
The Novatech wheel is a precision-engineered castor component designed for demanding industrial applications including airport e...
Details
Custom or high volume? Request a quote now.
Documents
- Kappa.pdf
- electrostatic_discharge_capacity.pdf
- Solutions_for_mechanical_engineering___workshops.pdf
- Solutions_for_the_entertainment_industry.pdf
- Solutions_for_the_automotive_industry.pdf
- Solutions_for_intralogistic.pdf
- Delta.pdf
- Polyurethane_Wheels_Novatech___Ultratech.pdf
- Product_brochure_Omikron_EN__1_.pdf
- Alpha.pdf

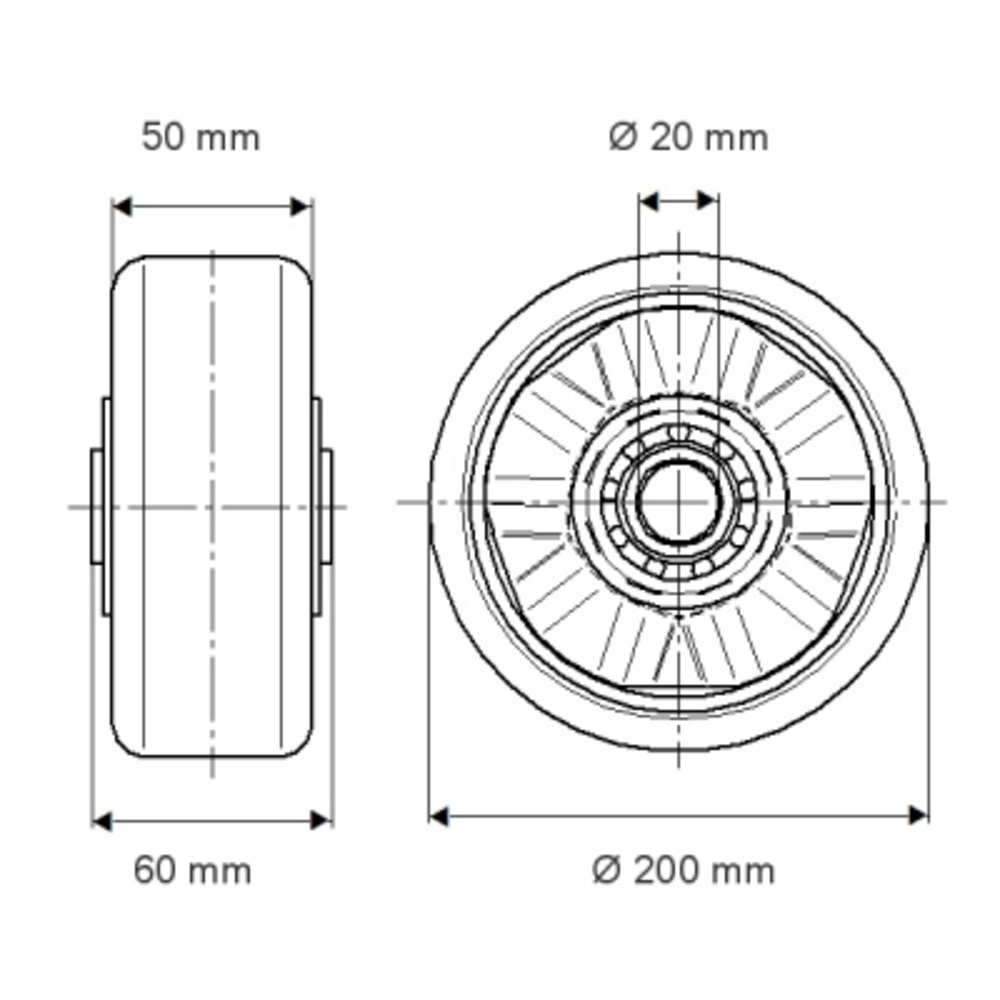

The Novatech wheel is a precision-engineered castor component designed for demanding industrial applications including airport equipment, AMR systems, automated shuttle systems, automotive OEM, ceramic and glass manufacturers, container construction, fire fighting technology, forklift trucks, AGV systems, machine construction, post logistic systems, production and platform trolleys, and transport equipment. This wheel features a diameter of 200 mm with a polyurethane casted tread measuring 50 mm in width, mounted on an aluminium body with a precision ball bearing for smooth operation. The hub extends 60 mm in length and accommodates an axle with a 20 mm hole diameter. The wheel delivers a static load capacity of 1600 kg, whilst dynamic load capacity reaches 640 kg at 6 km/h or 800 kg at 4 km/h, making it suitable for both high-speed and heavy-load applications in industrial environments.
Roll performance
Movement noise
Attrition
Corrosion resistance
Article numbers
Core attributes
Wheel
Special Features
Non-hazardous materials
Complies with RoHS and REACH regulations. Does not contain polycyclic aromatic carbons or chromium (VI).
Tested quality
Tested in our own laboratory for compliance with European standards.
Non-marking movement
Wheels with reduced abrasion and little cleaning requirement.
Ergonomically friendly use
Wheels with optimised roll resistance to lighten the load for the user.
Certified conductivity
Conductive version to protect users and electrical devices from electrostatic discharge.
