Wheel 125 mm
Supratech
EAN:
4031582489088
Product number:
PHP125x32-Ø8.3, antistatique
- Non-hazardous materials
- Tested quality
- Non-marking movement
The Supratech wheel is a precision castor component engineered for demanding industrial and commercial applications including ro...
Details
Custom or high volume? Request a quote now.

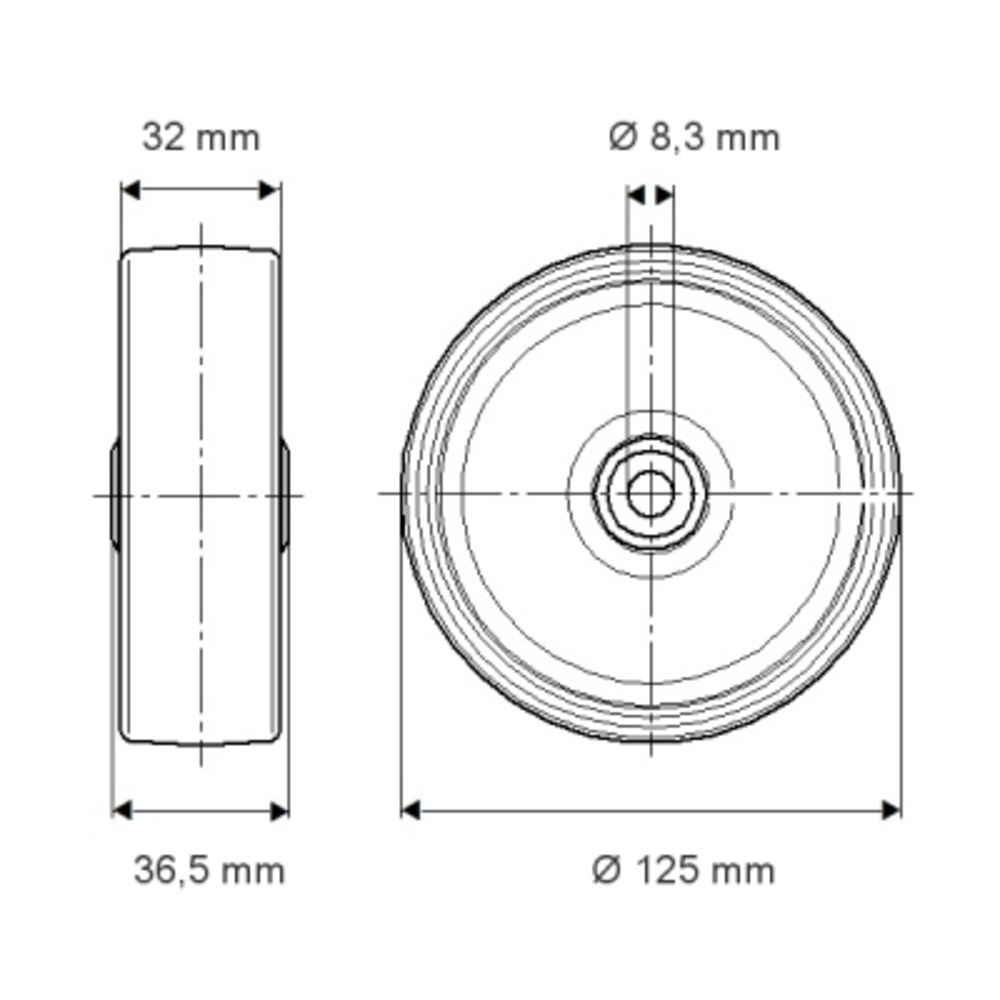

The Supratech wheel is a precision castor component engineered for demanding industrial and commercial applications including roll cages, shopping trolleys, store fixtures and display systems, tool cabinets, work benches, and transport equipment. This wheel features a diameter of 125 mm with a tread width of 32 mm, constructed from thermoplastic rubber with antistatic properties to ensure safe operation in sensitive environments. The hub length measures 36.5 mm, whilst the axle accommodates an 8.3 mm hole diameter for secure mounting. The wheel body is manufactured from polypropylene and incorporates a precision ball bearing for smooth, reliable rotation. The static load capacity reaches 200 kg, with a dynamic load capacity of 100 kg at speeds up to 3 km/h, making this wheel suitable for applications requiring robust performance and consistent durability in both stationary and mobile castor assemblies.
Roll performance
Movement noise
Attrition
Corrosion resistance
Article numbers
Core attributes
Wheel
Special Features
Non-hazardous materials
Complies with RoHS and REACH regulations. Does not contain polycyclic aromatic carbons or chromium (VI).
Tested quality
Tested in our own laboratory for compliance with European standards.
Low-maintenance wheels
Thread guards for unobstructed operation with minimal cleaning effort.
Non-marking movement
Wheels with reduced abrasion and little cleaning requirement.
