Wheel 100 mm
Novatech
EAN:
4031582481471
Product number:
ITP100x40-Ø15 HL40 80shA
- Non-hazardous materials
- Tested quality
- Non-marking movement
The Novatech wheel is a precision-engineered castor component featuring a 100 mm diameter with a 40 mm wide tread manufactured f...
Details
Custom or high volume? Request a quote now.
Data sheets
Documents
- Kappa.pdf
- electrostatic_discharge_capacity.pdf
- Solutions_for_mechanical_engineering___workshops.pdf
- Solutions_for_the_entertainment_industry.pdf
- Solutions_for_the_automotive_industry.pdf
- Solutions_for_intralogistic.pdf
- Delta.pdf
- Polyurethane_Wheels_Novatech___Ultratech.pdf
- Product_brochure_Omikron_EN__1_.pdf
- Alpha.pdf

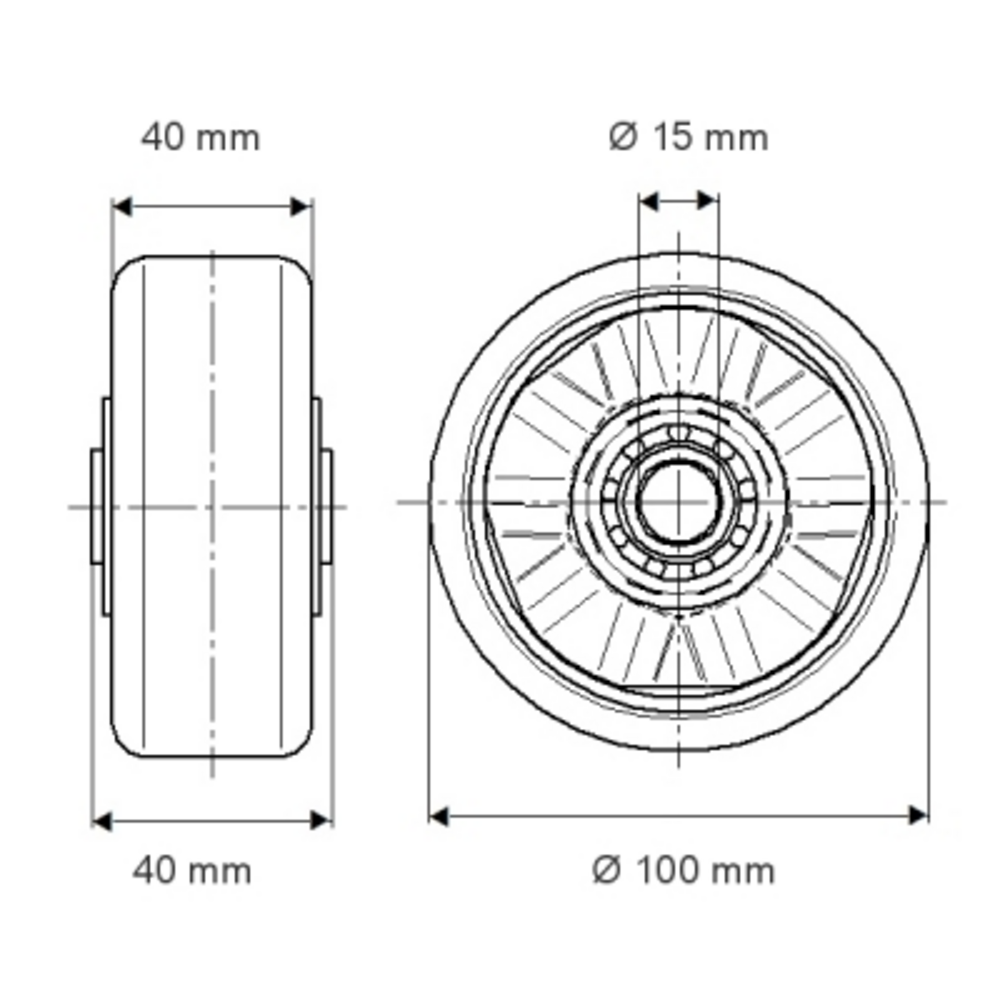

The Novatech wheel is a precision-engineered castor component featuring a 100 mm diameter with a 40 mm wide tread manufactured from PUR casted premium material, supported by an aluminium body and precision ball bearing for optimal performance and durability. The wheel accommodates a 15 mm axle hole diameter and features a 40 mm hub length, providing robust integration into castor assemblies. With a static load capacity of 600 kg and a dynamic load capacity of 300 kg at 3 km/h, this wheel is engineered to meet demanding industrial applications including airport equipment, AMR systems, automated shuttle systems, automotive OEM requirements, ceramic and glass manufacturing, container construction, fire fighting technology, forklift trucks, AGV systems, machine construction, post logistic systems, production and platform trolleys, and transport equipment. The combination of premium PUR tread material and aluminium construction ensures excellent wear resistance, chemical compatibility, and reliable performance across diverse operational environments.
Roll performance
Movement noise
Attrition
Corrosion resistance
Article numbers
Core attributes
Wheel
Special Features
Non-hazardous materials
Complies with RoHS and REACH regulations. Does not contain polycyclic aromatic carbons or chromium (VI).
Tested quality
Tested in our own laboratory for compliance with European standards.
Non-marking movement
Wheels with reduced abrasion and little cleaning requirement.
Ergonomically friendly use
Wheels with optimised roll resistance to lighten the load for the user.
